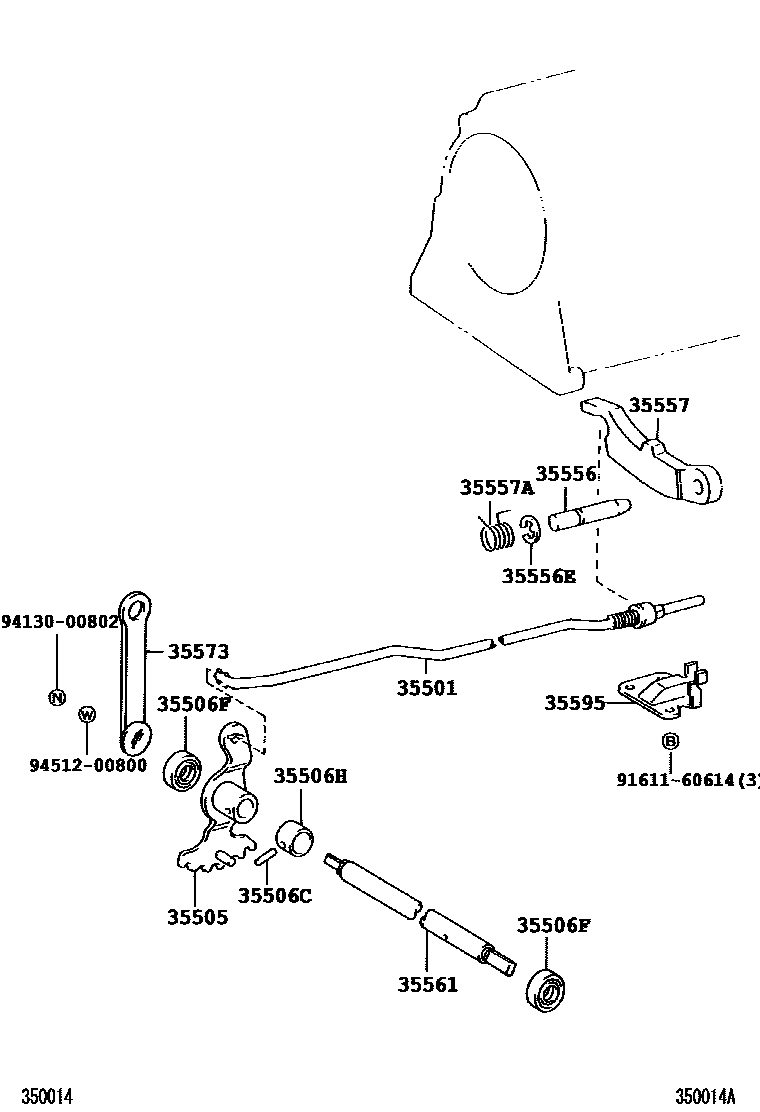

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A343F 0002 1A343F 0003 1A343F 0004 1A343F

35501ROD SUB-ASSY, PARKING LOCK

main35501-60010iKDJ9#,KZJ9#,VZJ9#..ATM199604-200209

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30021iKDJ9#,KZJ95,VZJ9#..ATM200102-200209

main35505-50010iKZJ9#,VZJ9#..ATM199604-200102

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKDJ9#,KZJ9#,VZJ9#..ATM199604-200209

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iKZJ9#,VZJ9#..ATM199604-200209

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iKZJ9#,VZJ9#..ATM199604-200209

35556SHAFT, PARKING LOCK PAWL

main35556-30020iKZJ9#,VZJ9#..ATM199604-200209

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKZJ9#,VZJ9#..ATM199604-200209

35557PAWL, PARKING LOCK

main35557-60020iKZJ9#,VZJ9#..ATM199604-200209

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iKZJ9#,VZJ9#..ATM199604-200209

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iKZJ9#,VZJ9#..ATM199604-200209

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-35030iKZJ9#,VZJ9#..ATM199604-200209

35595BRACKET, PARKING LOCK PAWL

main35595-60010iKZJ9#,VZJ9#..ATM199604-200209

9161160614

main91611-60614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 4 diagrams in section
