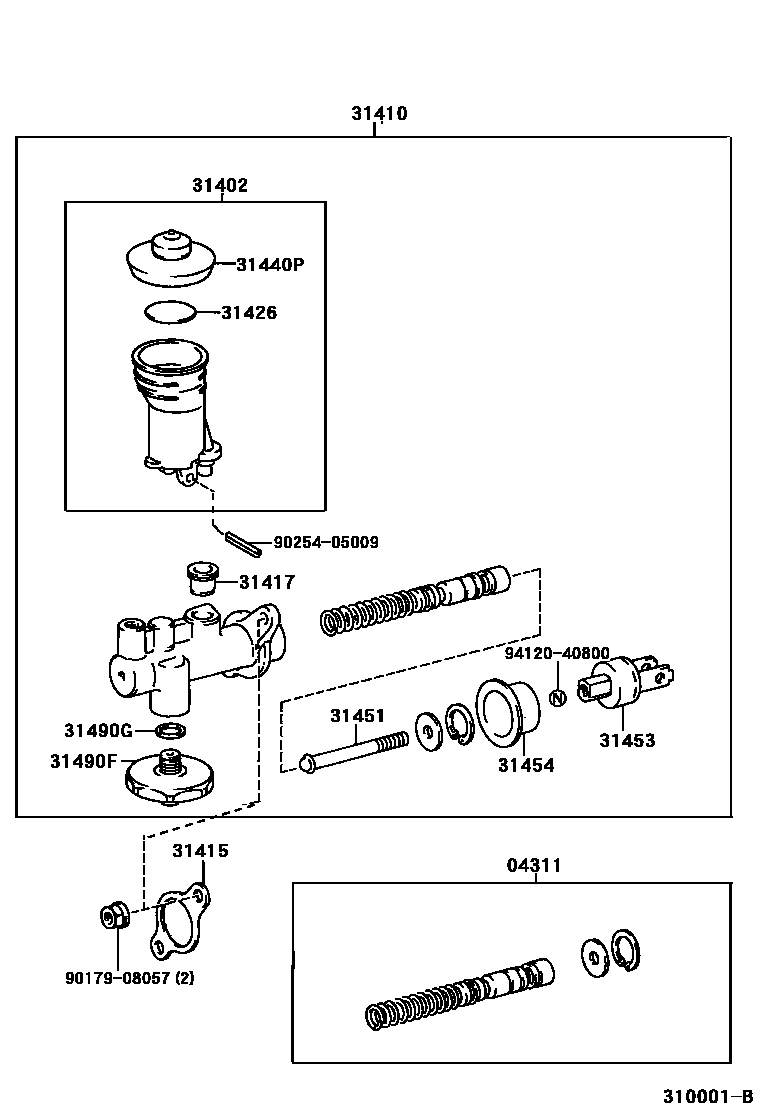

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iKDJ9#,KZJ9#,VZJ9#..MTM199604-200209

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iVZJ9#..MTM199604-200209

main31402-35140iVZJ9#..MTM200010-200209

main31402-60070iKDJ9#,KZJ95..RHD..MTM200008-200209

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35320iKDJ9#,KZJ9#..LHD..MTM200008-200209

main31410-60560iKDJ9#,KZJ95..RHD..MTM200008-200209

main31410-60570iKZJ9#..MTM199604-199702

sub31410-60571

main31410-60571iKZJ9#..MTM199702-200008

main31410-60580iVZJ9#..MTM199604-200209

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iKZJ9#,VZJ9#..MTM199604-200209

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iKZJ9#,VZJ9#..MTM199604-200209

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iKZJ9#,VZJ9#..MTM199604-200209

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iKZJ90..RHD199604-200209

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iVZJ9#..MTM199604-200209

main31451-35080iKZJ9#..MTM199702-200008

main31451-36040iKZJ9#..MTM199604-200209

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iKZJ9#..MTM199702-200008

main31404-35011iKDJ9#,KZJ9#..MTM199604-200209

sub31404-35013

main31453-35010iVZJ9#..MTM199604-200209

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iKZJ9#,VZJ9#..MTM199604-200209

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-60090iKDJ9#,VZJ9#..LHD..MTM199604-200209

sub31490-60091

main31490-60091iKDJ9#,KZJ95..RHD..MTM200008-200209

main31490-60100iKZJ9#..MTM199604-200008

sub31490-60101

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iKZJ9#,VZJ9#..MTM199604-200209

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

15 parts on this diagram · 2 diagrams in section
