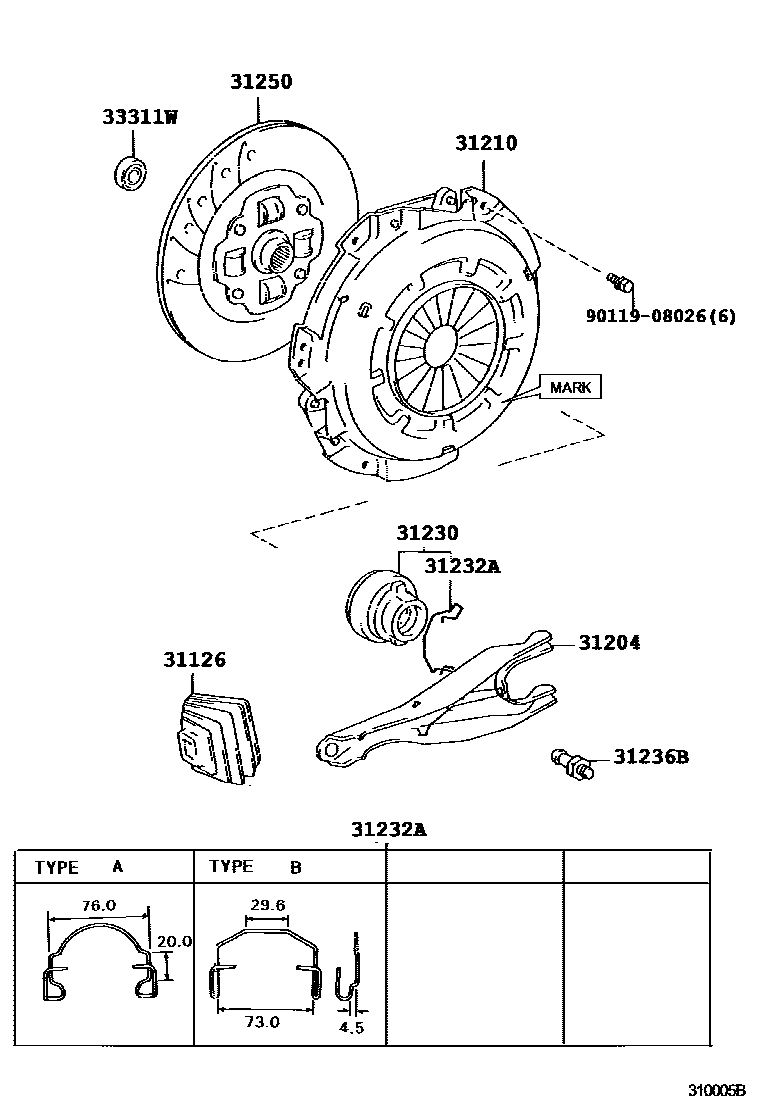

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
PNC 31210 = MARK 31210-26090 OR 31210-35260
33311WBEARING (FOR INPUT SHAFT)
9011908026
9 parts on this diagram · 2 diagrams in section
