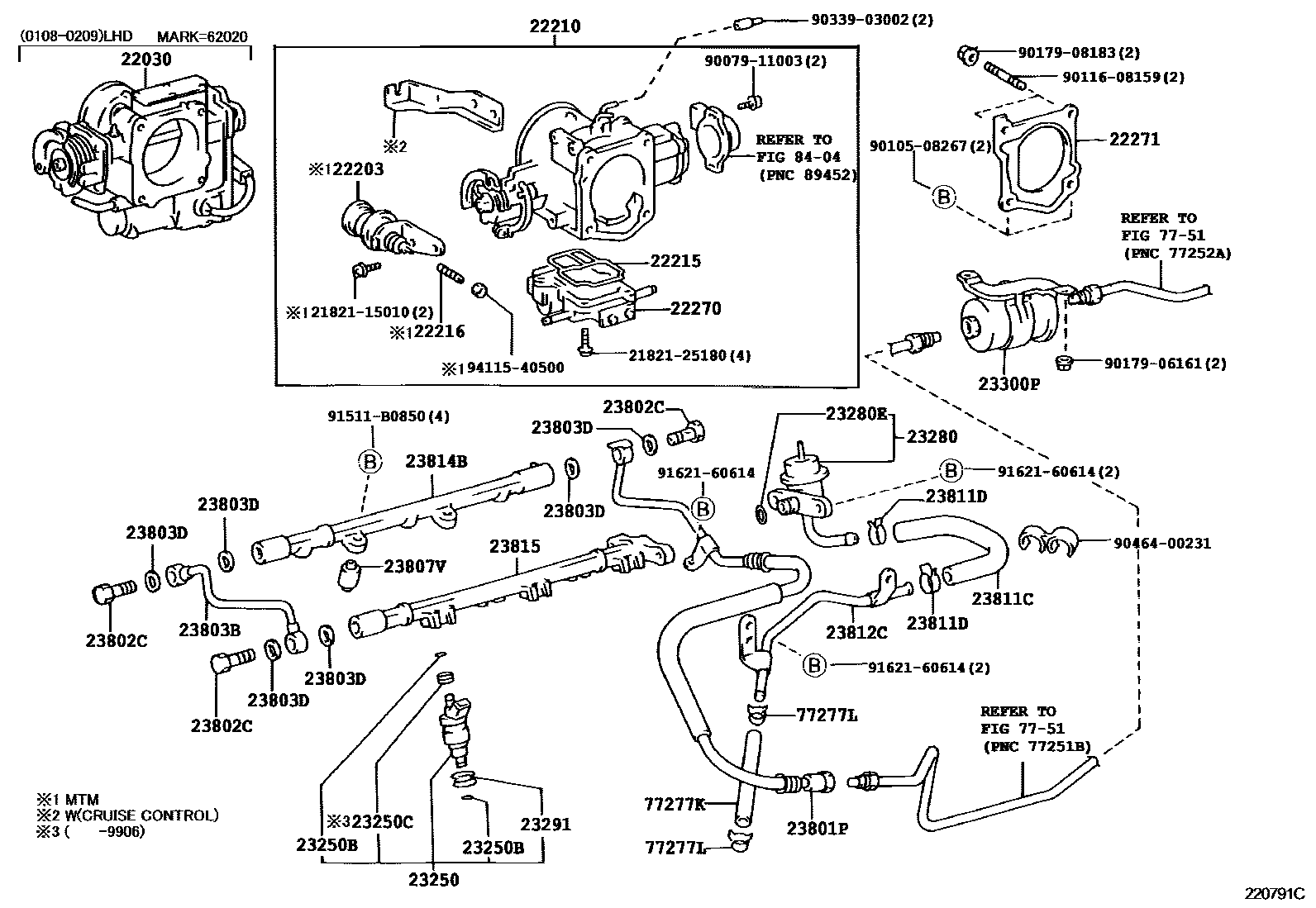

FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
MARK=62020
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
W(CRUISE CONTOROL)
W(CRUISE CONTOROL)
22215GASKET, THROTTLE BODY COVER
22216SCREW, DASH POT ADJUSTING
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
sub95337-06020
23811DCLIP, HOSE(FOR FUEL HOSE)
23812CPIPE, FUEL, NO.2
23814BPIPE, FUEL DELIVERY
sub23814-62051
23815PIPE, FUEL DELIVERY, NO.2
sub23815-62051
77277KHOSE, FUEL(FOR RETURN HOSE)
YELLOW PAINTED
WHITE PAINTED
7751
8404
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911003
main90079-11003
9010508267
main90105-08267
9011608159
main90116-08159
9017906161
main90179-06161
9017908183
main90179-08183
9033903002
main90339-03002
9046400231
main90464-00231
91511B0850
main91511-B0850
9162160614
main91621-60614
9411540500
main94115-40500
40 parts on this diagram · 2 diagrams in section
