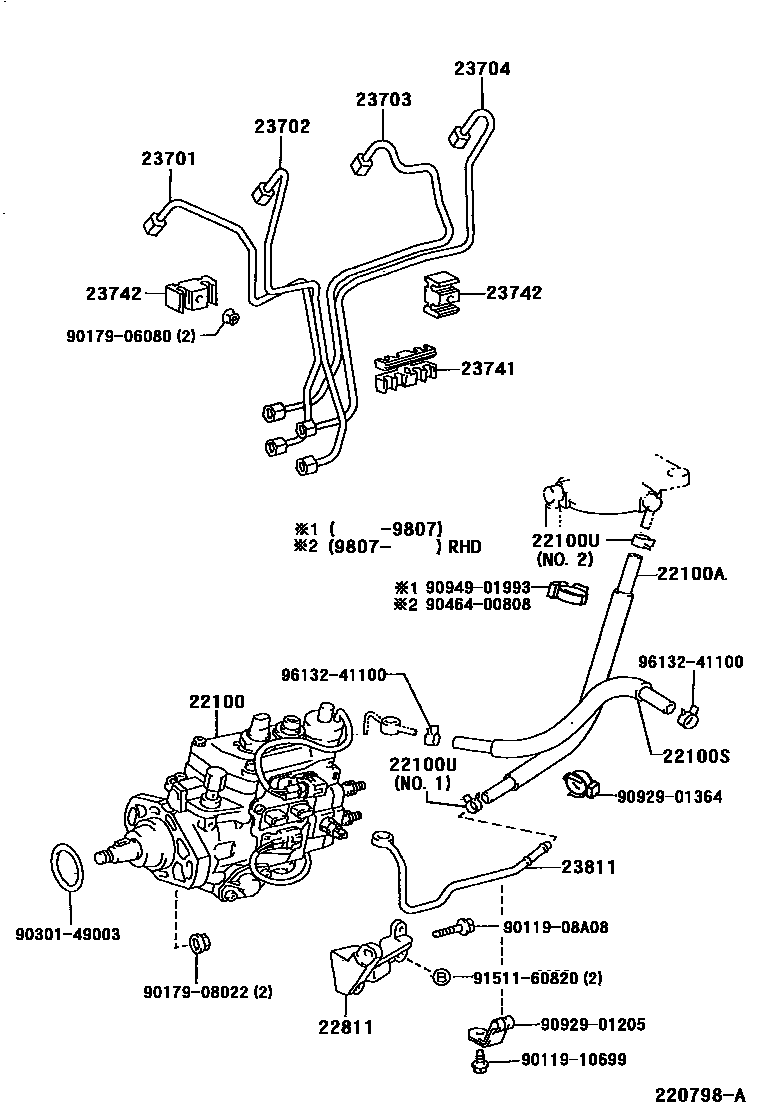

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-30010i1KDFTV..KDJ9#200008-200209

main22100-67070i1KZTE..KZJ9#199604-199906

main22100-67120i1KZTE..KZJ9#200008-200209

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-30010i1KDFTV..KDJ9#..RHD200008-200209

L=660

main23271-30030i1KDFTV..KDJ9#..LHD200008-200209

L=610

main23271-67080i1KZTE..KZJ9#..RHD199604-199906

L=650

main23271-67090i1KZTE..KZJ9#..LHD199604-199906

L=550

main23271-67110i1KZTE..KZJ9#..RHD199906-200008

L=600

main23271-67150i1KZTE..KZJ95..RHD200008-200209

L=600

main23271-67160i1KZTE..KZJ9#..LHD200008-200209

L=550

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-30010i1KDFTV..KDJ9#200008-200209

main23273-67070i1KZTE..KZJ9#199906-200209

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-13050i1KZTE..KZJ9#200008-200209

NO.1

sub96135-51300

main96135-41400×2i1KZTE..KZJ9#200008-200209

NO.2

22811STAY, INJECTION PUMP, NO.1

main22811-30010i1KDFTV..KDJ9#200008-200209

main22811-67010i1KZTE..KZJ9#199604-199906

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-30010i1KDFTV..KDJ9#200008-200209

main23701-67021i1KZTE..KZJ9#199604-199906

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-30010i1KDFTV..KDJ9#200008-200209

main23702-67020i1KZTE..KZJ9#199604-199905

main23702-67021i1KZTE..KZJ9#199906-200209

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-30010i1KDFTV..KDJ9#200008-200209

main23703-67021i1KZTE..KZJ9#199604-199808

main23703-67030i1KZTE..KZJ9#199808-199905

main23703-67031i1KZTE..KZJ9#199905-199906

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-39015i1KDFTV..KDJ9#200008-200209

main23704-67020i1KZTE..KZJ9#199604-199906

23741CLAMP, INJECTION PIPE, NO.1

main23741-30010i1KDFTV..KDJ9#200008-200209

main23741-64030i1KZTE..KZJ9#199604-199906

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010i1KDFTV..KDJ9#200008-200209

main23742-67010×2i1KZTE..KZJ9#199604-199906

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-67050i1KZTE..KZJ9#199604-199906

9011908A08

main90119-08A08

9011910699

main90119-10699

9017906080

main90179-06080

9017908022

main90179-08022

9030149003

main90301-49003

9046400808

main90464-00808

9092901205

main90929-01205

9092901364

main90929-01364

9094901993

main90949-01993

9151160820

main91511-60820

9613241100

main96132-41100

23 parts on this diagram · 2 diagrams in section
