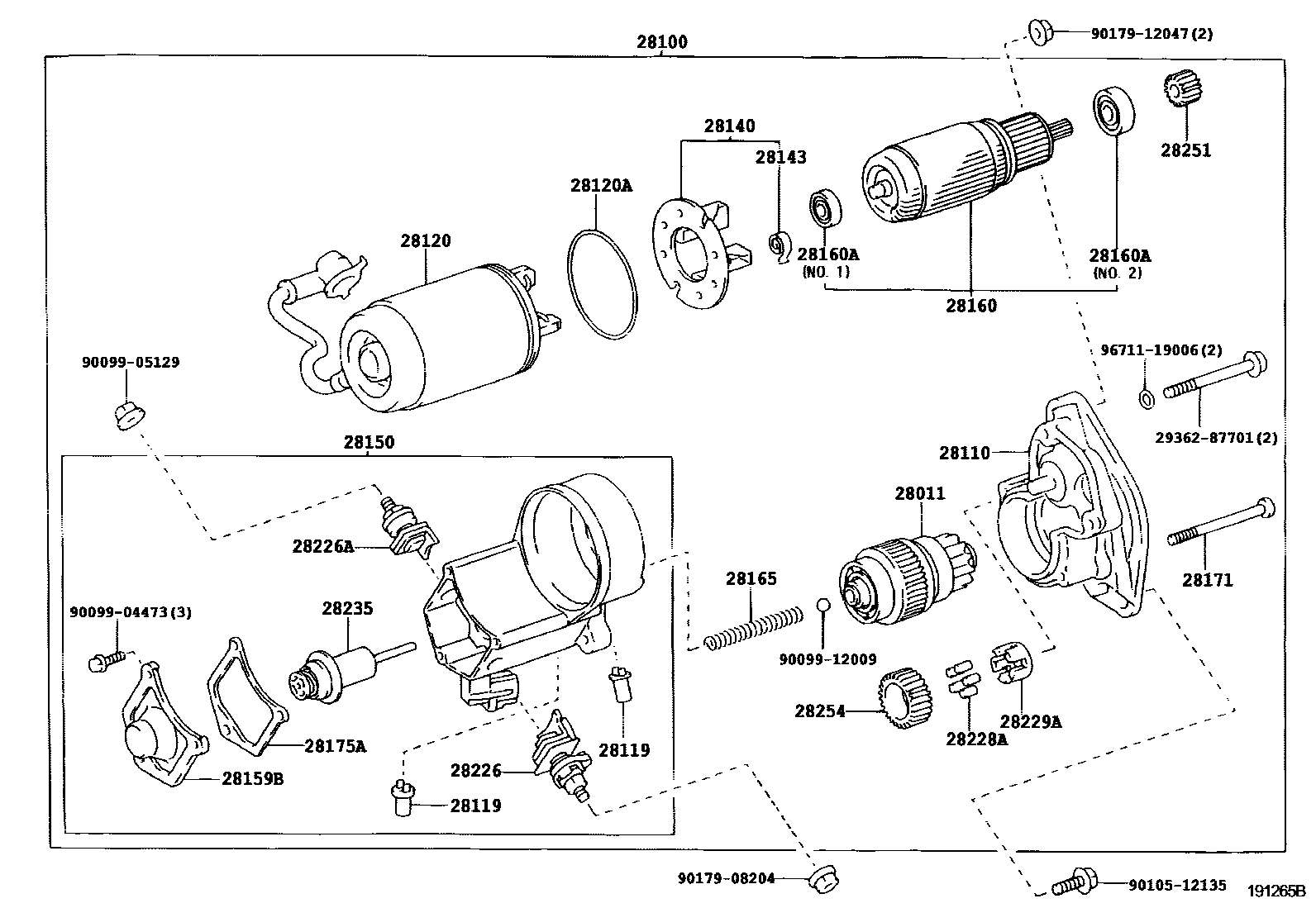

STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 2.7KW,3.0KW
12V 2.2KW
12V 1.8KW
12V 1.2KW,1.4KW
28100STARTER ASSY
12V 1.8KW
12V 1.2KW
12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
12V 1.8KW
12V 1.2KW,1.4KW
12V 2.7KW
12V 2.2KW
12V 3.0KW
28119COVER, STARTER END FRAME
12V 2.7KW,NO.1
12V 2.2KW,NO.1 & NO.2
NO.1
12V 2.2KW
12V 2.7KW,NO.2
12V 3.0KW
NO.2
12V 1.2KW,1.4KW
28120YOKE ASSY, STARTER
12V 1.2KW
12V 2.2KW
12V 1.4KW
12V 2.7KW
12V 3.0KW
12V 1.8KW
28120ARING, O(FOR STARTER YOKE)
28140HOLDER ASSY, STARTER BRUSH
12V 1.4KW
12V 1.8KW
12V 2.2KW
12V 1.2KW
12V 3.0KW
12V 2.7KW
28143SPRING, STARTER BRUSH
12V 1.8KW
12V 1.2KW
12V 1.4KW
28150SWITCH ASSY, MAGNET STARTER
12V 1.8KW
12V 1.2KW,1.4KW
12V 2.2KW
12V 2.7KW
12V 3.0KW
28159BCOVER, MAGNET SWITCH
12V 2.2KW
12V 2.7KW,3.0KW
12V 1.8KW
12V 1.2KW,1.4KW
28160ARMATURE ASSY, STARTER
12V 2.7KW
12V 2.2KW
12V 3.0KW
12V 1.4KW
12V 1.8KW
12V 1.2KW
28160ABEARING, STARTER ARMATURE
12V 2.2KW,NO.1
12V 2.7KW,NO.1
12V 2.7KW,NO.2
12V 2.2KW,NO.2
12V 1.2KW,1.4KW,NO.1
12V 1.2KW,1.4KW,NO.2
12V 1.8KW,NO.1
12V 3.0KW,NO.2
12V 3.0KW,NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
12V 2.2KW
12V 2.7KW,3.0KW
28171BOLT, STARTER
12V 2.7KW
12V 2.2KW
12V 3.0KW
28175AGASKET, MAGNET SWITCH COVER
12V 2.2KW
12V 1.8KW
12V 1.2KW,1.4KW
12V 2.7KW,3.0KW
28226STARTER KIT, BATTERY TERMINAL
12V 2.7KW,3.0KW
12V 2.2KW
28226ASTARTER KIT, MOTOR TERMINAL
12V 2.7KW,3.0KW
12V 1.8KW
12V 2.2KW
12V 1.2KW,1.4KW
28228AROLLER, STARTER CLUTCH
12V 2.7KW,3.0KW
28229ARETAINER, STARTER IDLE GEAR
12V 2.2KW
12V 2.7KW,3.0KW
28235PLUNGER, MAGNET SWITCH
12V 2.7KW,3.0KW
12V 2.2KW
12V 1.8KW
12V 1.2KW,1.4KW
28251PINION, STARTER DRIVE
28254PINION, STARTER IDLE GEAR
12V 2.2KW
12V 1.8KW
12V 3.0KW
12V 1.2KW,1.4KW
12V 2.7KW
2936287701
main29362-87701
9009904473
main90099-04473
9009905129
main90099-05129
9009912009
main90099-12009
9010512135
main90105-12135
9017908204
main90179-08204
9017912047
main90179-12047
9671119006
main96711-19006
30 parts on this diagram · 5 diagrams in section
