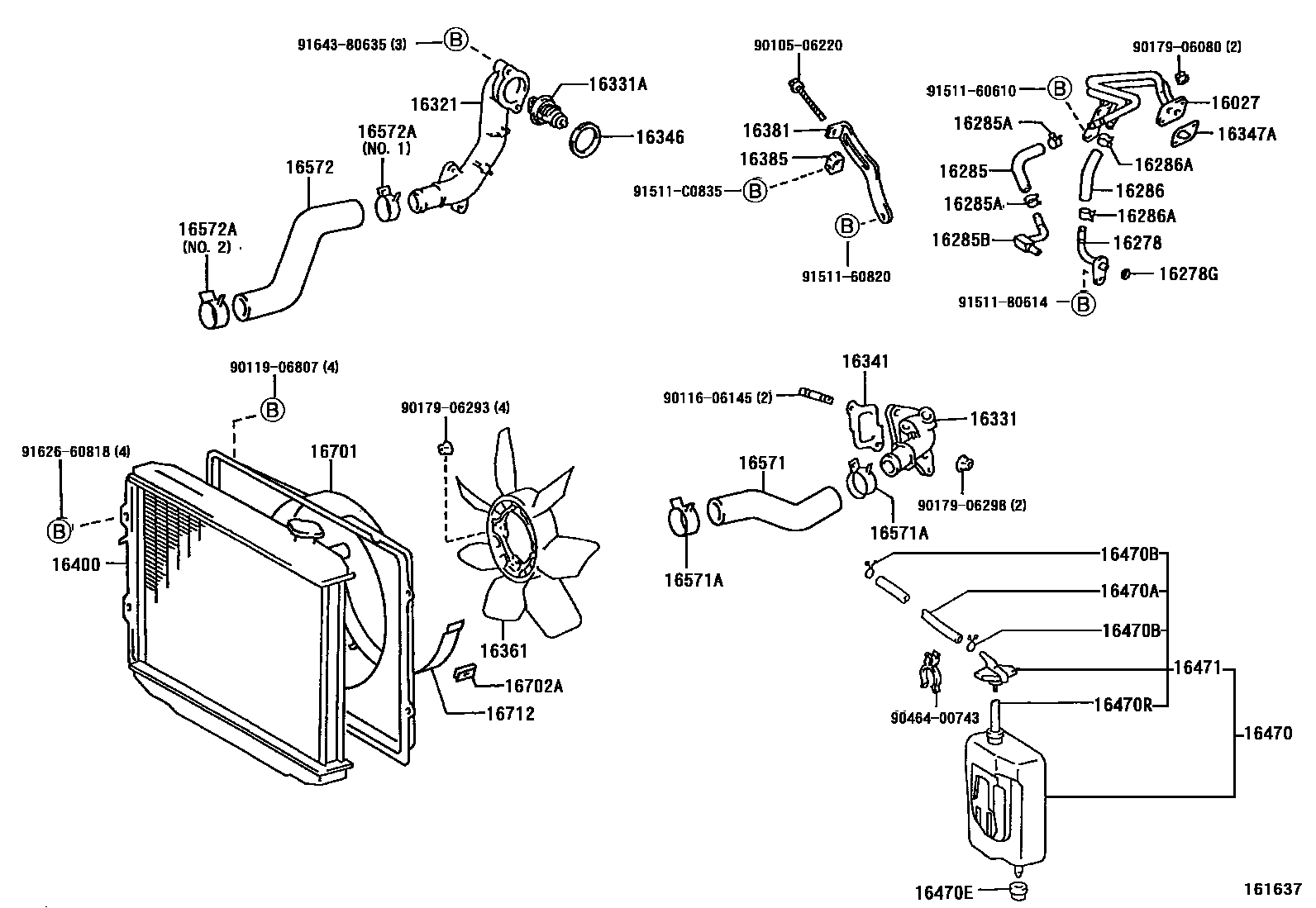

RADIATOR & WATER OUTLET
16027PIPE SUB-ASSY, TURBO WATER, NO.1
16278PIPE, WATER BY-PASS, NO.2
16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)
16285HOSE, TURBO WATER, NO.2
16285ACLIP(FOR TURBO WATER HOSE NO.2)
16285BUNION(FOR TURBO WATER HOSE NO.2)
16286HOSE, TURBO WATER, NO.3
16286ACLIP(FOR TURBO WATER HOSE NO.3)
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
*WAX 76-90
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
sub16346-30010
16347AGASKET(FOR TURBO WATER PIPE)
16361FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=410)
*H,L=390
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
*H,L=240
16471CAP SUB-ASSY, RESERVE TANK
16572HOSE, RADIATOR, OUTLET
16701SHROUD SUB-ASSY, FAN
16702SHROUD SUB-ASSY, FAN, NO.2
16702ACLIP(FOR FAN SHROUD NO.2)
16712SHROUD, FAN, NO.2
9010506220
main90105-06220
9011606145
main90116-06145
9011906807
main90119-06807
9017906080
main90179-06080
9017906293
main90179-06293
9017906298
main90179-06298
9046400743
main90464-00743
9151160610
main91511-60610
9151160820
main91511-60820
9151180614
main91511-80614
91511C0835
main91511-C0835
9162660818
main91626-60818
9164380635
main91643-80635
45 parts on this diagram · 6 diagrams in section
