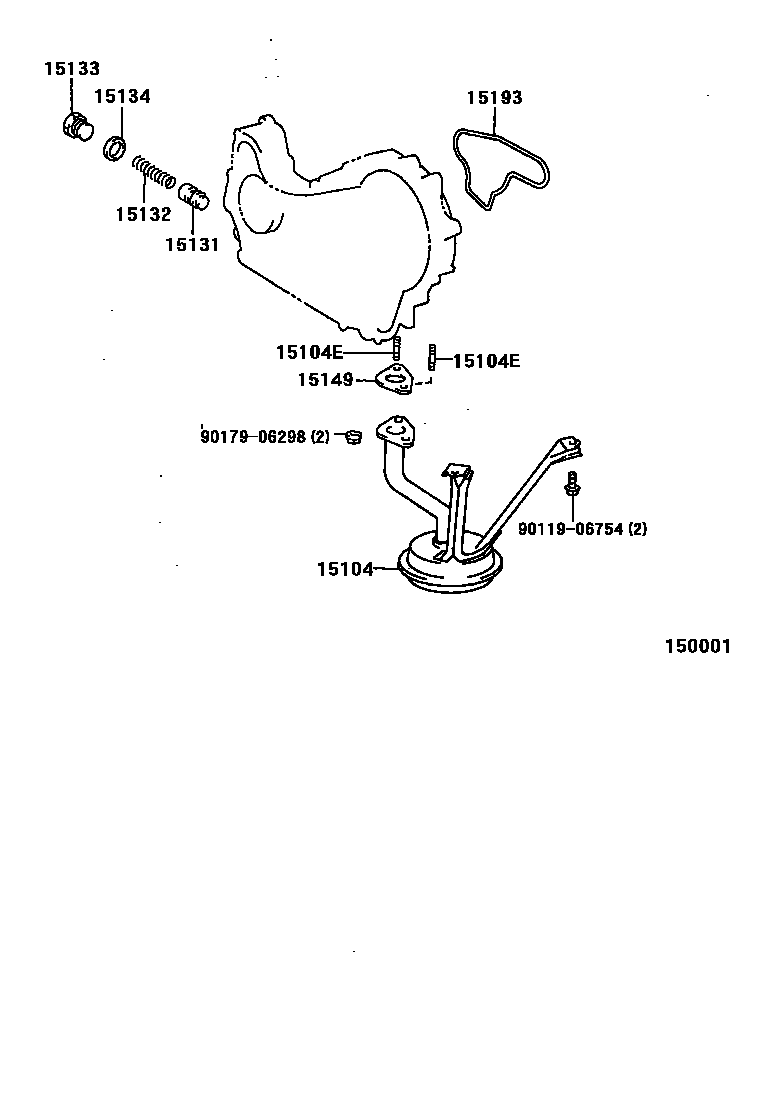

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-62040i5VZFE..VZJ9#199604-200209

main15104-67080i1KZTE..KZJ9#199604-200209

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KZTE..KZJ9#199604-200209

15131VALVE, OIL PUMP RELIEF

main15131-24010i5VZFE..VZJ9#199604-200209

main15131-46040i1KZTE..KZJ9#199604-200209

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1K#..KDJ9#,KZJ9#199604-200209

main15132-20020i5VZFE..VZJ9#199604-200209

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KZTE..KZJ9#199604-200209

main15133-24010i5VZFE..VZJ9#199604-200209

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1KZTE..KZJ9#199604-200209

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KZTE..KZJ9#199604-200209

15193GASKET, OIL PUMP

main15193-67010i1KZTE..KZJ9#199604-199806

main15193-67011i1KZTE..KZJ9#199807-200209

9011906754

main90119-06754

9017906298

main90179-06298

10 parts on this diagram · 2 diagrams in section
