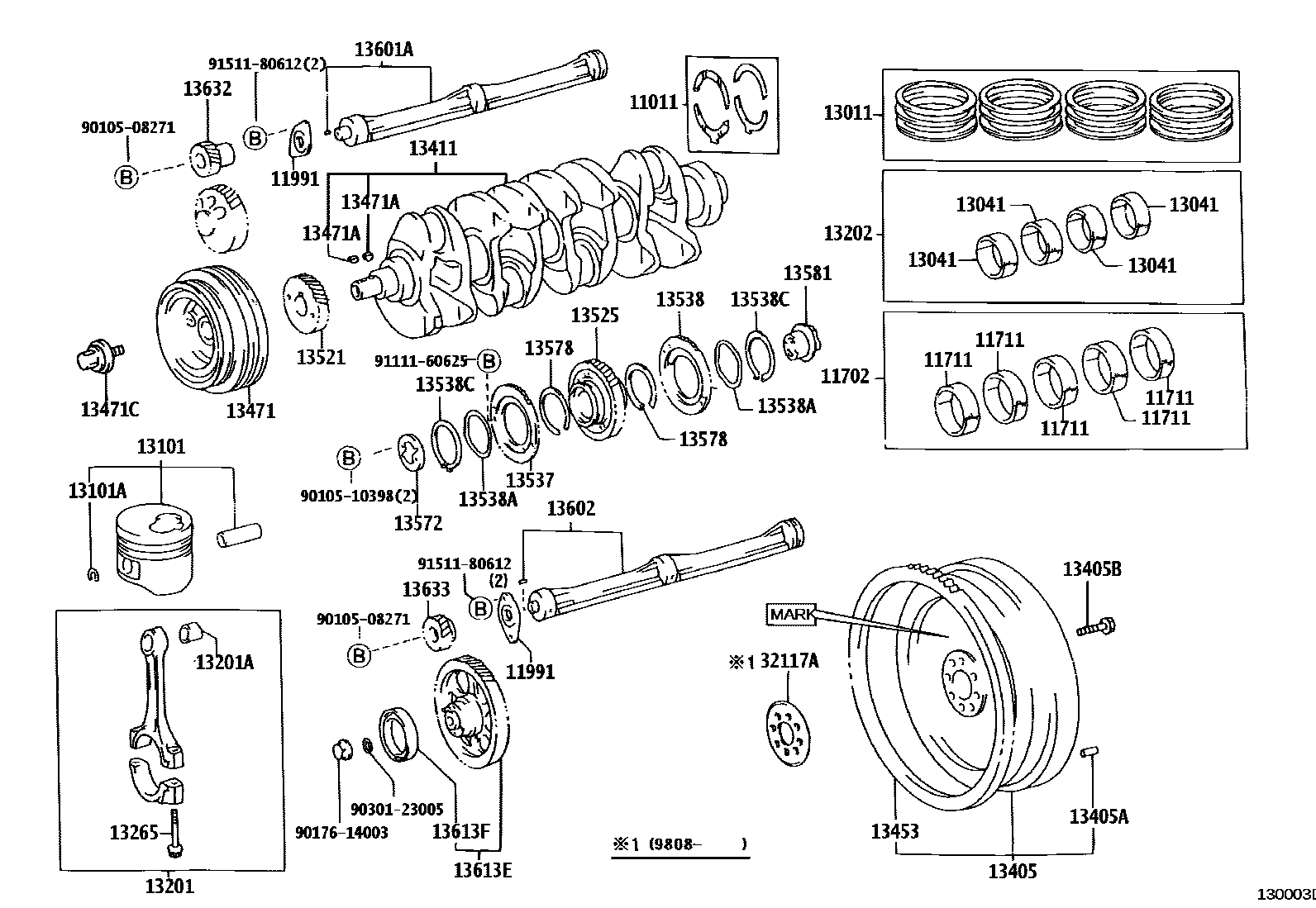

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 6,NO.1,REFER R/M
11991WASHER, BALANCESHAFT THRUST
13011RING SET, PISTON
STD
STD
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
13202BEARING SET, CONNECTING ROD
U/S 0.25
13405FLYWHEEL SUB-ASSY
MARK=67020
MARK=67070
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=18,OD=8
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13525GEAR, IDLE, NO.1
sub13508-67011
13537GEAR, IDLE SUB, NO.1
13538GEAR, IDLE SUB, NO.2
13538AWASHER, WAVE
13538CRING, SHAFT SNAP
13572PLATE, IDLE GEAR THRUST
13578SPRING, IDLE GEAR
13581SHAFT, IDLE GEAR, NO.1
13613FBEARING, RADIAL BALL
13632GEAR, BALANCESHAFT DRIVEN, NO.1
13633GEAR, BALANCESHAFT DRIVEN, NO.2
32117ASPACER, FLYWHEEL PLATE
9010508271
main90105-08271
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9111160625
main91111-60625
9151180612
main91511-80612
42 parts on this diagram · 3 diagrams in section
