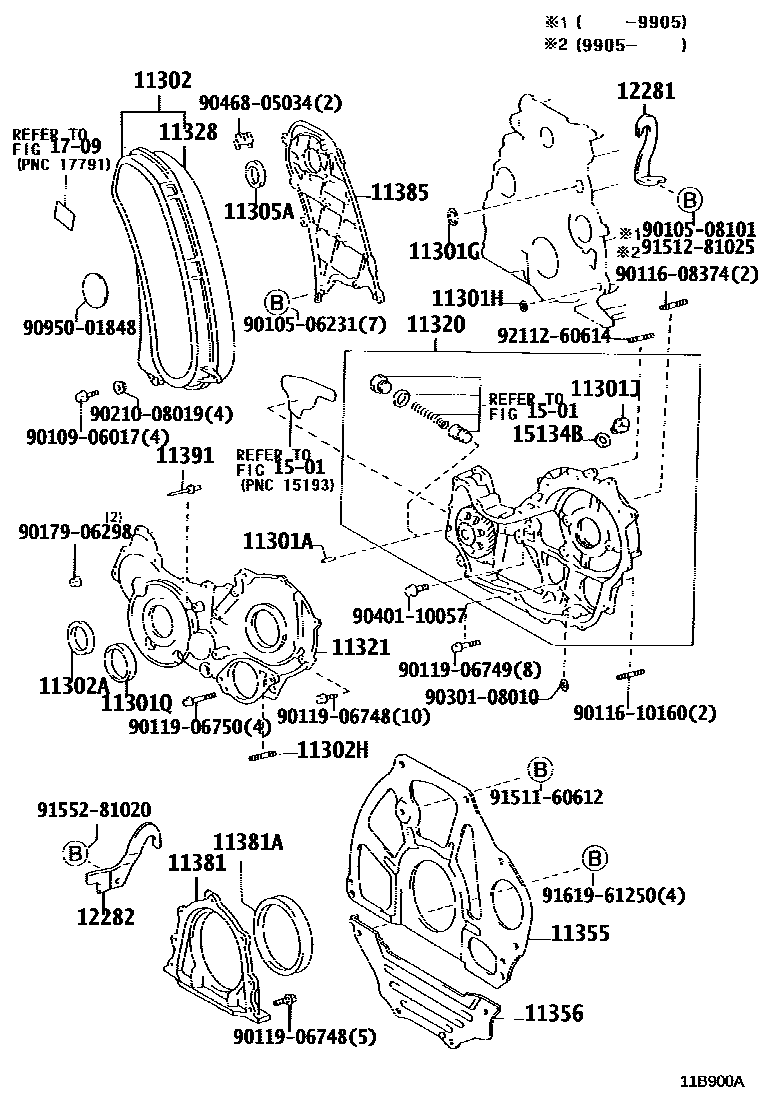

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i1K#..KDJ9#,KZJ9#199604-200209

L=18,OD=8

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i1K#..KDJ9#,KZJ9#199610-200209

main96721-24022i1KZTE..KZJ9#199604-199610

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i1KZTE..KZJ9#199610-200209

main96721-24010i1KZTE..KZJ9#199604-199610

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i1KZTE..KZJ9#199604-200209

11301QSEAL, TYPE T OIL(FOR INJECTION PUMP)

main90311-58006i1KZTE..KZJ9#199604-200209

main90311-65003i1KDFTV..KDJ9#200008-200209

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-67010i1KZTE..KZJ9#199604-199704

sub11302-67020

main11302-67020i1KZTE..KZJ9#199704-200209

main11321-62900i5VZFE..VZJ9#199604-200209

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50017i1KZTE..KZJ9#199604-200209

sub90311-50051

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08376i1KZTE..KZJ9#199604-200209

sub90116-08377

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32017i1KZTE..KZJ9#199604-199812

sub90311-32020

main90311-32019i1KZTE..KZJ9#199812-200209

11320CASE ASSY, TIMING GEAR

main11320-30010i1KDFTV..KDJ9#200008-200209

sub11320-30030

main11320-67010i1KZTE..KZJ9#199604-200209

11321CASE, TIMING GEAR

main11321-30020i1KDFTV..KDJ9#200008-200209

main11321-67031i1KZTE..KZJ9#199604-200006

sub11321-67032

main11321-67032i1KZTE..KZJ9#200006-200209

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-67020i1KZTE..KZJ9#199604-200209

11355PLATE, REAR END

main11355-65011i5VZFE..VZJ9#199604-200209

main11355-67010i1K#..KDJ9#,KZJ9#199604-200209

11356PLATE, REAR END, NO.2

main11356-30010i1KDFTV..KDJ9#200008-200209

main11356-67030i1KZTE..KZJ9#199604-200209

11381RETAINER, ENGINE REAR OIL SEAL

main11381-62010i5VZFE..VZJ9#199604-200209

main11381-67020i1KZTE..KZJ9#199604-200209

11381ASEAL, ENGINE REAR OIL

main90311-92006i5VZFE..VZJ9#199604-200209

sub90311-92009

main90311-95008i1KZTE..KZJ9#199604-200209

11385RETAINER, CAMSHAFT OIL SEAL

main11382-67010i1KZTE..KZJ9#199604-200209

11391POINTER, TIMING

main11391-67010i1KZTE..KZJ9#199604-200209

12281HANGER, ENGINE, NO.1

main12281-67040i1KZTE..KZJ9#199604-199905

main12281-67070i1KZTE..KZJ9#199905-200209

12282HANGER, ENGINE, NO.2

main12282-62030i5VZFE..VZJ9#199604-199906

main12282-62050i5VZFE..VZJ9#199906-200209

main12282-67030i1KZTE..KZJ9#199604-200209

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i1KZTE..KZJ9#199604-200209

1709

9010506231

main90105-06231

9010508101

main90105-08101

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

9046805034

main90468-05034

9095001848

main90950-01848

9151160612

main91511-60612

9151281025

main91512-81025

9155281020

main91552-81020

9161961250

main91619-61250

9211260614

main92112-60614

42 parts on this diagram · 3 diagrams in section
