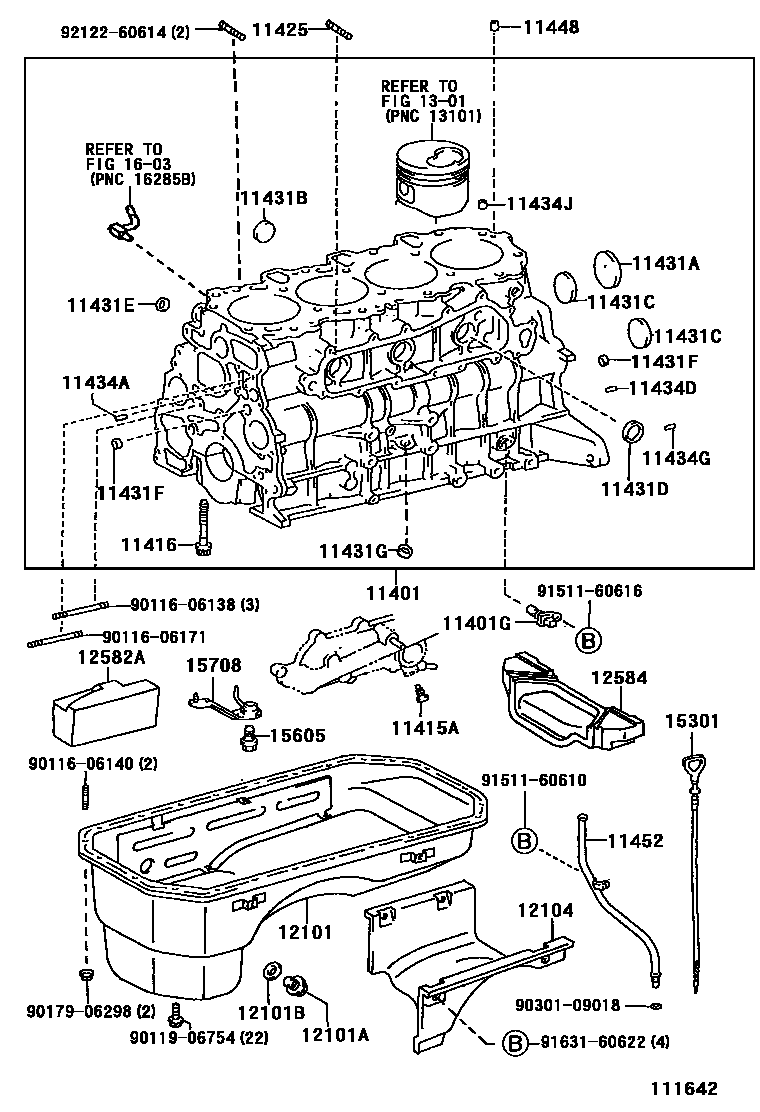

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
sub11401-39527
sub11401-39705
sub11401-69576
sub11401-69577
sub11401-69705
sub11401-69706
sub11401-69707
sub32909-26150
sub32909-35130
sub32921-26300
sub32921-26310
sub32921-35380
sub32922-26290
sub32922-26300
sub32922-35410
sub82715-26161
sub82729-26080
sub91162-61216
sub91162-61220
sub91619-61216
sub91619-61235
sub91619-61250
sub94130-61200
sub11401-69839
sub11401-80766
11401GSENSOR, CRANK POSITION
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
11431GPLUG, TIGHT
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=11,OD=6
L=11,OD=6
11434GPIN, STRAIGHT(FOR END PLATE)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11448ORIFICE, CYLINDER BLOCK OIL
11452GUIDE, OIL LEVEL GAGE
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12104COVER SUB-ASSY, OIL PAN, NO.1
12582AINSULATOR, CYLINDER BLOCK, NO.2
12584INSULATOR, CYLINDER BROCK, NO.4
1301
15605VALVE SUB-ASSY, OIL CHECK
1603
9011606138
main90116-06138
9011606140
main90116-06140
9011606171
main90116-06171
9011906754
main90119-06754
9017906298
main90179-06298
9030109018
main90301-09018
9151160610
main91511-60610
9151160616
main91511-60616
9163160622
main91631-60622
9212260614
main92122-60614
39 parts on this diagram · 3 diagrams in section
