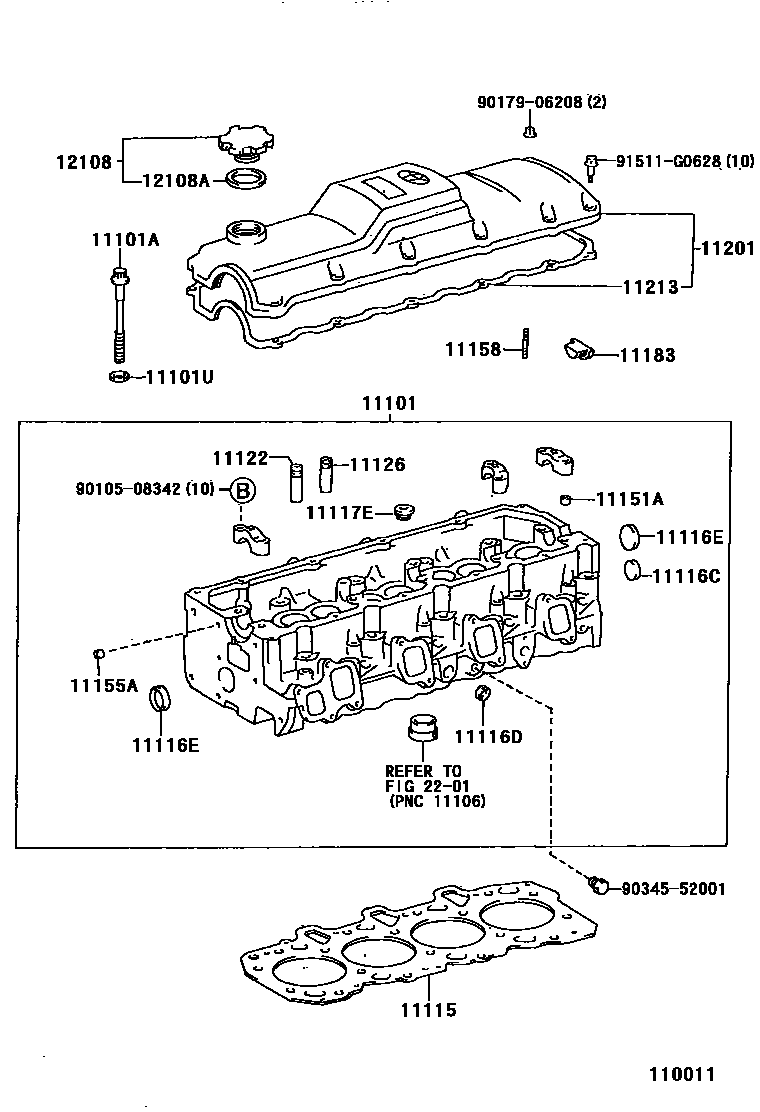

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-69128
sub11176-67011
sub12281-67070
sub12282-67030
sub90119-10907
sub91512-81025
sub91552-81020
sub91651-61016
sub11101-69136
11101ABOLT(FOR CYLINDER HEAD SET)
NO.2
NO.1
11101USPACER(FOR CYLINDER HEAD SET BOLT)
11116CPLUG, TIGHT, NO.3
11116DPLUG, TIGHT, NO.4
11116EPLUG, TIGHT, NO.5
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
STD
O/S 0.05
O/S 0.05
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
O/S 0.05
O/S 0.05
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11155APIN, RING W/HEAD
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
S=9 & 16,L=37
11183PLUG, SEMICIRCULAR
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
2201
9010508342
main90105-08342
9017906208
main90179-06208
9034552001
main90345-52001
91511G0628
main91511-G0628
24 parts on this diagram · 3 diagrams in section
