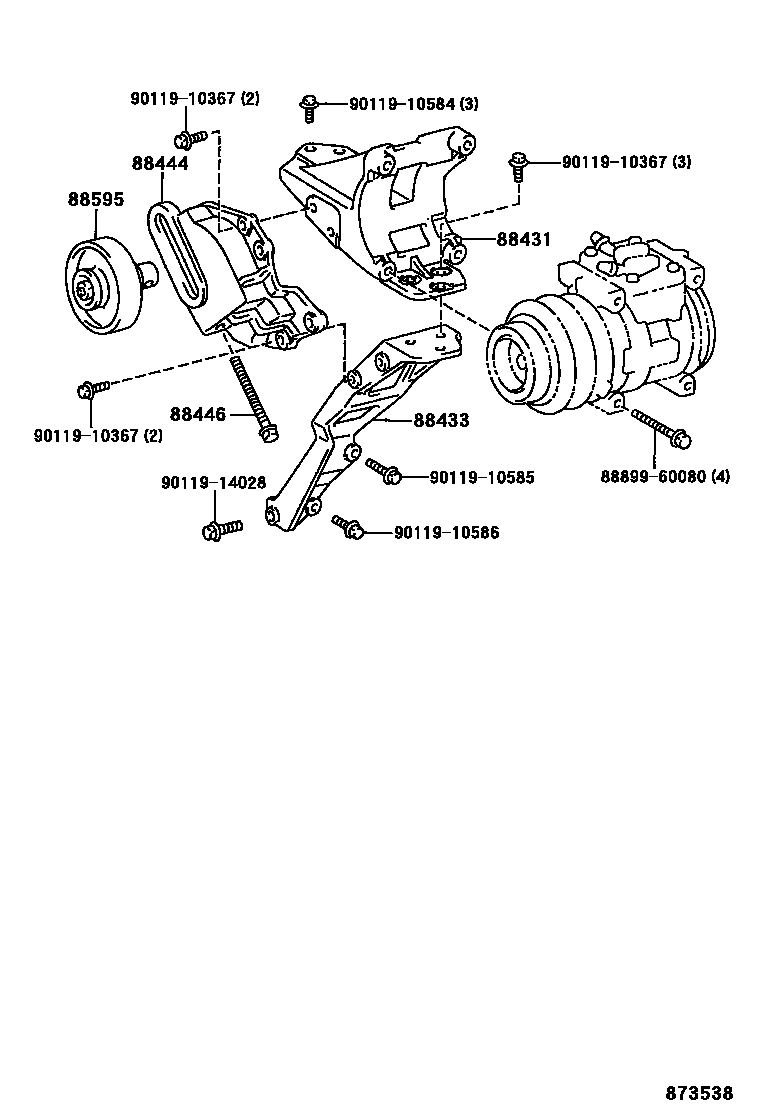

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0005 1 0006 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60120iBJ73199001-199402

main88431-60150iPZJ73,75199001-200108

main88431-60180iLJ70,73..LHD..(LX,STD)199001-199501

main88431-60220iKZJ7#199305-199604

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88437-60260iBJ73199001-199402

88444BRACKET, IDLE PULLEY

main88444-60060iBJ73199001-199402

main88444-60080iLJ70,73..LHD..(LX,STD)199004-199501

main88444-60100iPZJ73,75199001-200108

88446BOLT, IDLE PULLEY

main88446-35030iLJ73..LX;LJ70..LHD..HT199108-199305

W(AIR CONDITIONER),NO.2

main88446-35030iLJ70,73..LHD..(LX,STD)199004-199501

main88446-60010iBJ73199001-199402

main88446-60030iHZJ70,71,74,75,78,79,PZJ75199001-200108

main88446-60030iHZJ73199108-199305

W(AIR CONDITIONER)

main88446-60040iKZJ7#199305-199604

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-32030iBJ73199001-199402

main88440-35010iHZJ7#199912-200108

main88440-35010iHZJ7#199909-200108

DEALER OPTION

main88440-35030iLJ7#199004-199501

main88440-60040iHZJ7#199001-199912

main88440-60050iKZJ7#199305-199604

8889960080COVER, EVAPORATOR

main88899-60080

9011910367

main90119-10367

9011910584

main90119-10584

9011910585

main90119-10585

9011910586

main90119-10586

9011914028

main90119-14028

11 parts on this diagram · 5 diagrams in section
