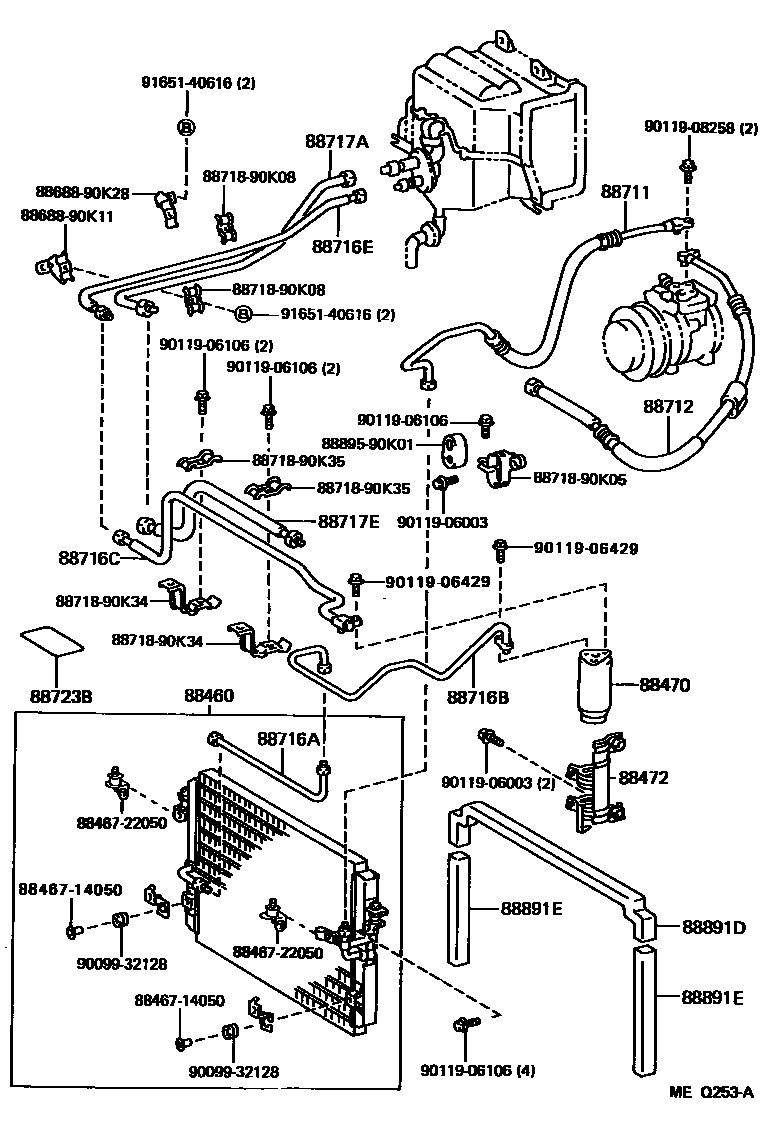

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1O-RING

88460CONDENSER ASSY, COOLER

main88340-60010iPZJ75;HZJ7#,PZJ73..HT199001-199305

main88340-60020iHZJ75..PIC199208-199305

main88460-60080iLJ70,73..LHD..(LX,STD)199001-199305

main88460-60090iBJ73199001-199309

main88460-60120iKZJ7#199305-199604

main88460-60150iLJ7#199305-199501

main88460-60180iHZJ71,74,78199908-200108

DEALER OPTION

main88460-60180iHZJ7#..HT199305-199908

main88460-60180iHZJ79199908-200108

MAKER OPTION

main88460-60190iHZJ79199908-200108

DEALER OPTION

main88460-60190iHZJ79199908-200108

MAKER OPTION

main88460-60190iHZJ75..PIC199305-199908

main88460-60210iBJ73199309-199402

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iHZJ7#199108-199305

AIR CONDITIONER CUT(WATER TEMP)

sub04884-33110

main88470-20070iHZJ7#,PZJ73,75199001-199305

main88471-12020iLJ70,73..LHD..(LX,STD)199001-199305

sub88471-12060

main88471-16040iBJ73199001-199305

sub88471-16050

main88471-34010iBJ73,HZJ7#199305-200108

main88471-60010iKZJ7#,LJ7#199305-199604

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iHZJ7#,PZJ73,75199001-199305

main88472-60080iLJ70,73..LHD..(LX,STD)199001-199305

main88472-60090iHZJ7#199305-200108

main88472-60100iKZJ7#,LJ7#199305-199604

main88472-90K00iBJ73199001-199402

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-60180iLJ70,73..LHD..(LX,STD)199001-199305

main88711-60210iLJ77,PZJ73,75199001-199208

main88711-60220iHZJ7#199001-199305

main88711-60230iBJ73199001-199309

main88711-60270iKZJ7#199305-199604

main88711-60280iLJ7#199305-199501

main88711-60300iHZJ7#199305-199908

main88711-60390iBJ73199309-199402

main88711-60550iHZJ7#199908-200108

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-60200iPZJ75199001-199208

main88712-60220iHZJ7#199001-199305

main88712-60230iLJ70..RHD199108-199305

main88712-60240iLJ70,73..LHD..(LX,STD)199001-199305

main88712-60310iBJ73199001-199309

main88712-60460iKZJ70..RHD199305-199604

main88712-60470iKZJ7#..LHD199305-199604

sub88720-60060

main88712-60520iLJ7#199305-199501

sub88720-60070

main88712-60550iHZJ7#199305-199908

main88712-60610iBJ73199309-199402

main88712-60890iHZJ7#199908-200108

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-60520iLJ70,73..LHD..(LX,STD)199001-199305

main88716-60550iHZJ7#,PZJ73,75199001-199305

main88716-60560iBJ73199001-199309

main88716-6A110iKZJ7#,LJ7#199305-199604

main88716-6A290iHZJ7#199305-200108

main88716-6A590iBJ73199309-199402

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-60470iLJ70..RHD199108-199305

main88716-60490iLJ70,73..LHD..(LX,STD)199001-199108

main88716-60490iLJ7#..LHD199109-199305

GERMAN SPEC

main88716-60590iHZJ7#,LJ77,PZJ73,75199001-199305

main88716-60670iBJ73199001-199309

main88716-6A120iKZJ70..RHD199305-199604

main88716-6A150iKZJ7#..LHD199305-199604

main88716-6A160iLJ7#199305-199501

main88716-6A240iHZJ7#199305-200108

main88716-6A600iBJ73199309-199402

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-6A140iKZJ7#..LHD199305-199604

main88726-60080iBJ73199001-199309

main88726-60340iBJ73199309-199402

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-60480iLJ70..RHD199108-199305

main88716-60570iLJ70,73..LHD..(LX,STD)199001-199108

main88716-60570iLJ7#..LHD199109-199305

GERMAN SPEC

main88716-60580iHZJ7#,LJ77,PZJ73,75199001-199305

main88716-6A130iKZJ70..RHD199305-199604

main88716-6A170iLJ7#199305-199501

main88716-6A250iHZJ7#199305-199908

main88716-6B150iHZJ7#199908-200108

main88726-60090iBJ73199001-199309

main88726-60350iBJ73199309-199402

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-60350iBJ73199001-199309

main88717-60560iKZJ70..RHD199305-199604

main88717-60860iBJ73199309-199402

88717EPIPE, COOLER REFRIGERANT SUCTION, E

main88727-60010iBJ73199001-199309

main88727-60020iBJ73199309-199402

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iHZJ7#199305-200108

main88723-22050iBJ73,HZJ7#,LJ7#,PZJ73,75..LHD..(LX,STD,VM)199001-199305

main88723-33020iLJ70,73..LHD..HT199109-199305

*FRG

88891DPACKING D (FOR COOLER)

main88578-90K00iBJ73199001-199402

88891EPACKING E (FOR COOLER)

main88578-90K01iBJ73199001-199305

L=380

main88578-90K01iBJ73199305-199402

NO.1

main88578-90K02iBJ73199305-199402

NO.2

main88578-90K02iBJ73199001-199305

L=440

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8846722050CUSHION, COOLER CONDENSER, NO.1

main88467-22050

8868890K11BRACKET, COOLER DIAPHRAGM

main88688-90K11

8868890K28BRACKET, COOLER DIAPHRAGM

main88688-90K28

8871890K05PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K05

8871890K08PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K08

8871890K34PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K34

8871890K35PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K35

8889590K01HOLDER, FUSE

main88895-90K01

9009932128

main90099-32128

9011906003

main90119-06003

9011906106

main90119-06106

9011906429

main90119-06429

9011908258

main90119-08258

9165140616

main91651-40616

29 parts on this diagram · 8 diagrams in section
