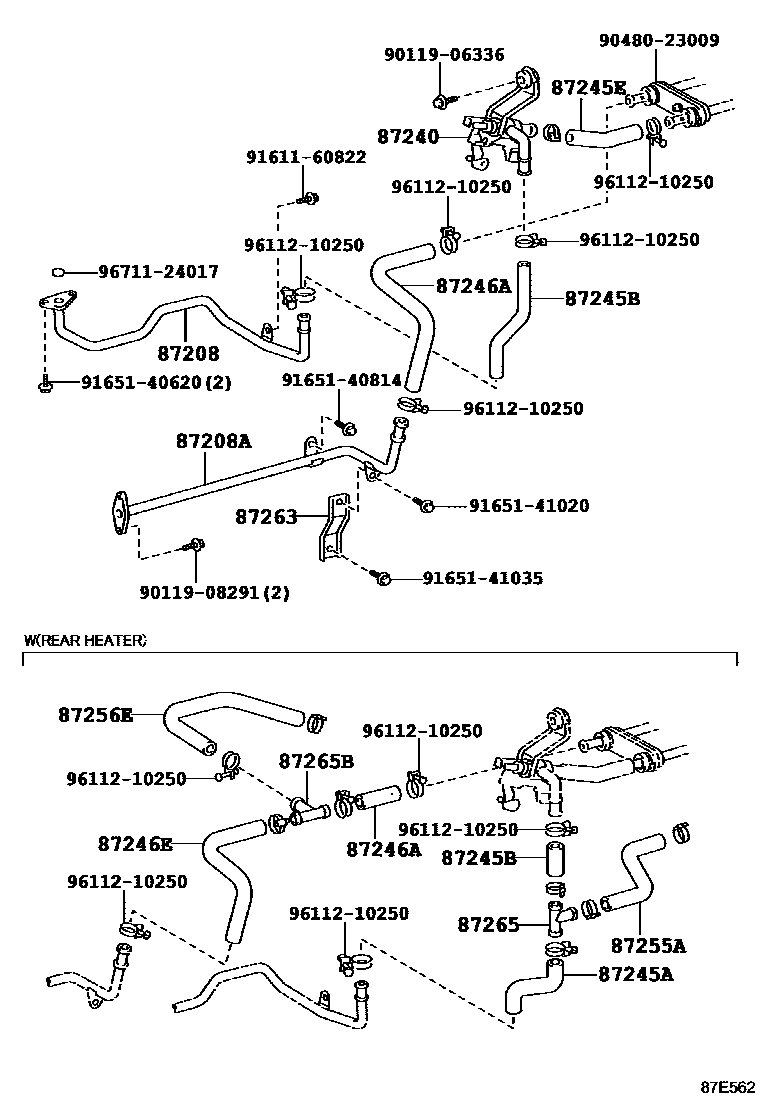

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-14280iRJ7#199001-199202

sub87208-35170

main87208-35170iRJ7#199202-199604

main87208-60280iLJ7#199001-199501

main87208-60330iKZJ7#199305-199604

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-20062iRJ7#199001-199604

main87208-60130iHZJ70,73199608-199908

main87208-60130iHZJ7#,PZJ70,73199001-199004

W(RR HEATER),RR HEATER

main87208-60130iHZJ70,73,PZJ70,73199004-199608

W(RR HEATER)

main87208-60141iPZJ75..HT199001-199201

W(RR HEATER)

main87208-60142iHZJ75,PZJ75..HT199201-199401

W(RR HEATER)

sub87208-60143

main87208-60143iHZJ75..HT199401-199608

W(RR HEATER)

main87208-60143iHZJ75..HT199608-199908

main87208-60220iKZJ7#199305-199604

W(RR HEATER)

main87208-60340iKZJ7#199305-199604

main87208-60720iHZJ71,74199908-200108

main87208-60730iHZJ78199908-200001

sub87208-60731

main87208-60731iHZJ78200001-200108

main87208-90K13iRJ7#199305-199604

W(RR HEATER)

main87208-90K13iRJ7#199001-199305

W(RR HEATER),RR HEATER

main87208-90K14iBJ73199305-199402

main87208-90K14iBJ73199001-199305

RR HEATER

main87208-90K22iLJ73;LJ70..LX,STD;LJ70..LHD..VX199001-199501

W(RR HEATER)

87240VALVE ASSY, HEATER WATER

main87240-60100iLJ7#199001-199604

main87240-60110iHZJ7#199001-200108

main87240-90K00iRJ7#199001-199604

main87240-90K01iBJ73199001-199402

87245AHOSE, HEATER WATER, INLET A

main87245-60150iLJ7#199001-199501

main87245-60160iHZJ7#199001-200108

main87245-60190iPZJ7#199001-199208

main87245-60230iLJ7#199001-199501

W(RR HEATER)

main87245-60530iKZJ73,77;KZJ70..LX,STD;KZJ70..LHD..VX199305-199604

main87245-90K04iBJ73199001-199402

main87245-90K64iRJ7#199001-199604

W(RR HEATER)

main87245-90K66iRJ7#199305-199604

87245BHOSE, HEATER WATER, INLET B

main87245-60560iKZJ77;KZJ70..RHD..VX199305-199604

W(RR HEATER)

main87245-90K61iRJ7#199501-199604

main87245-90K61iRJ7#199001-199501

W(RR HEATER)

main87245-90K66iRJ7#199001-199305

main99556-30100iLJ73;LJ70..LX,STD;LJ70..LHD..VX199001-199305

*H,L=60

main99556-30100iLJ73;LJ70..LX,STD;LJ70..LHD..VX199001-199501

*H,L=60,W(RR HEATER)

87245EHOSE, HEATER WATER, INLET E

main87245-1B060iBJ73,RJ7#199001-199604

main87245-60220iLJ7#199001-199604

main87245-60290iHZJ7#199001-200108

87246AHOSE, HEATER WATER, OUTLET A

main87245-60140iLJ7#199001-199501

main87245-60170iHZJ7#199001-199805

sub87245-60171

main87245-60171iHZJ7#199805-200108

main87245-60200iPZJ7#199001-199208

main87245-60250iHZJ7#..HT199001-199805

W(RR HEATER)

sub87245-60251

main87245-60251iHZJ78199805-200108

W(RR HEATER)

main87245-60520iKZJ73,77;KZJ70..LX,STD;KZJ70..LHD..VX199305-199604

main87245-60540iKZJ70..RHD..VX199305-199307

W(RR HEATER)

main87245-60541iKZJ70..RHD..VX199307-199604

W(RR HEATER)

main87245-90K03iRJ7#199001-199604

main87245-90K21iRJ7#199001-199604

W(RR HEATER)

sub99556-30300

main87245-90K30iBJ73199001-199402

87246EHOSE, HEATER WATER, OUTLET E

main87245-60260iPZJ7#..HT199001-199208

W(RR HEATER)

main87245-60270iHZJ7#..HT199608-199805

sub87245-60271

main87245-60270iHZJ7#..HT199001-199608

W(RR HEATER)

sub87245-60271

main87245-60271iHZJ71,74,78199805-200108

main87245-60550iKZJ73;KZJ70..LX,STD;KZJ70..LHD..VX199305-199604

W(RR HEATER)

main87245-90K22iRJ7#199001-199501

W(RR HEATER)

main87245-90K22iRJ7#199501-199604

main87245-90K31iBJ73199001-199402

main99556-30100iBJ73199001-199305

*H,L=60

main99556-30100iBJ73199305-199402

*H,L=55

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-60180iHZJ71,74,78199608-200108

main87245-60180iHZJ7#..HT199001-199608

W(RR HEATER)

main87245-60210iPZJ7#..HT199001-199208

W(RR HEATER)

main87245-60580iKZJ77;KZJ70..RHD..VX199305-199604

W(RR HEATER)

main87245-90K28iBJ73199001-199003

main99556-20080iLJ73;LJ70..LX,STD;LJ70..LHD..VX199001-199501

*H,L=80,W(RR HEATER)

sub99556-20100

main99556-20080iLJ77;LJ70..RHD..VX199001-199305

*H,L=80

sub99556-20100

main99556-20100iRJ7#199001-199604

*H,L=55

sub99556-20110

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-60240iLJ77;LJ70..RHD..VX199001-199501

W(RR HEATER)

main87245-60280iHZJ7#..HT199001-199608

W(RR HEATER)

sub87245-60281

main87245-60280iHZJ7#..HT199608-199805

sub87245-60281

main87245-60281iHZJ7#..HT199805-200108

main87245-60570iKZJ73;KZJ70..LX,STD;KZJ70..LHD..VX199305-199604

W(RR HEATER)

main87245-90K24iRJ7#199001-199501

W(RR HEATER)

main87245-90K24iRJ7#199501-199604

main87245-90K29iBJ73199001-199003

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-14140iRJ7#199001-199604

87265CONNECTOR, HEATER WATER HOSE

main87248-60460iKZJ7#199305-199604

main87248-95400iRJ7#199001-199604

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87248-60460iKZJ7#199305-199604

main87248-95400iBJ73,HZJ70,71,73,74,75,78,PZJ7#,RJ7#..HT199001-200108

9011906336

main90119-06336

9011908291

main90119-08291

9048023009

main90480-23009

9161160822

main91611-60822

9165140620

main91651-40620

9165140814

main91651-40814

9165141020

main91651-41020

9165141035

main91651-41035

9611210250

main96112-10250

9671124017

main96711-24017

23 parts on this diagram · 9 diagrams in section
