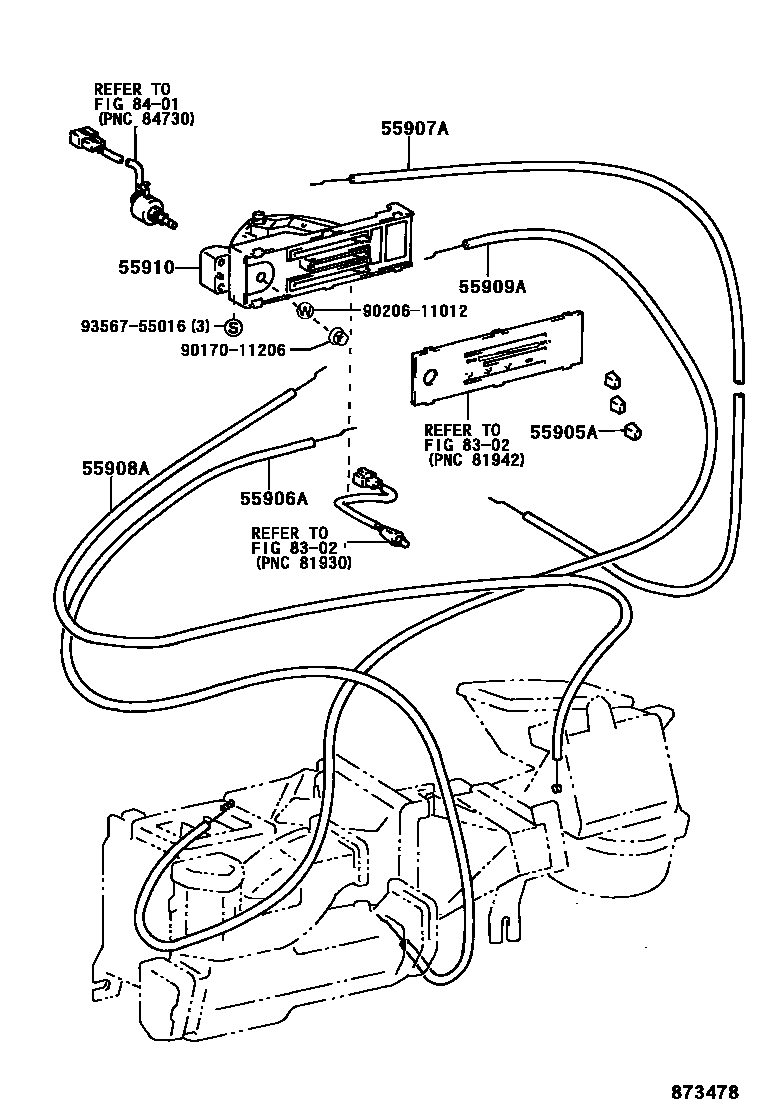

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL ASSY,KNOB & CONTROL C0002 1AIR DUCT 0003 1AIR DUCT

55905AKNOB, HEATER CONTROL

main55905-12080iBJ73,HZJ7#,LJ7#,PZJ75199001-199305

DEF-VENTI,WARM-COOL

main55905-12080iHZJ7#199001-200108

DEF-VENT,WARM-COOL

main55905-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

FRESH-RECIRC

sub55905-12080

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-90K00iLJ70..RHD199001-199604

main55906-90K01iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..LHD199001-200108

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60040iLJ70..RHD199001-199604

main55907-60050iKZJ7#,LJ7#..LHD199001-199604

main55907-90K01iBJ73,HZJ7#,PZJ7#,RJ7#199001-200108

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90K00iLJ70..RHD199001-199604

main55908-90K01iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD199001-200108

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-90K02iLJ70..RHD199001-199604

main55909-90K03iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD199001-200108

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-90K02iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

sub55910-60220

8302

8401

9017011206

main90170-11206

9020611012

main90206-11012

9356755016

main93567-55016

11 parts on this diagram · 3 diagrams in section
