SWITCH & RELAY & COMPUTER

0001 1ENGINE & ENGINE ROOM 0002 1ENGINE 0003 1ENGINE ROOM 0004 1ENGINE & ENGINE ROOM 0006 1ENGINE ROOM 0007 1INSTRUMENT PANEL SW 0008 1COWL RELAY 0009 1COWL RELAY 0010 1DOOR,FLOOR SW 0011 1AMBIENT SENSOR & COVER

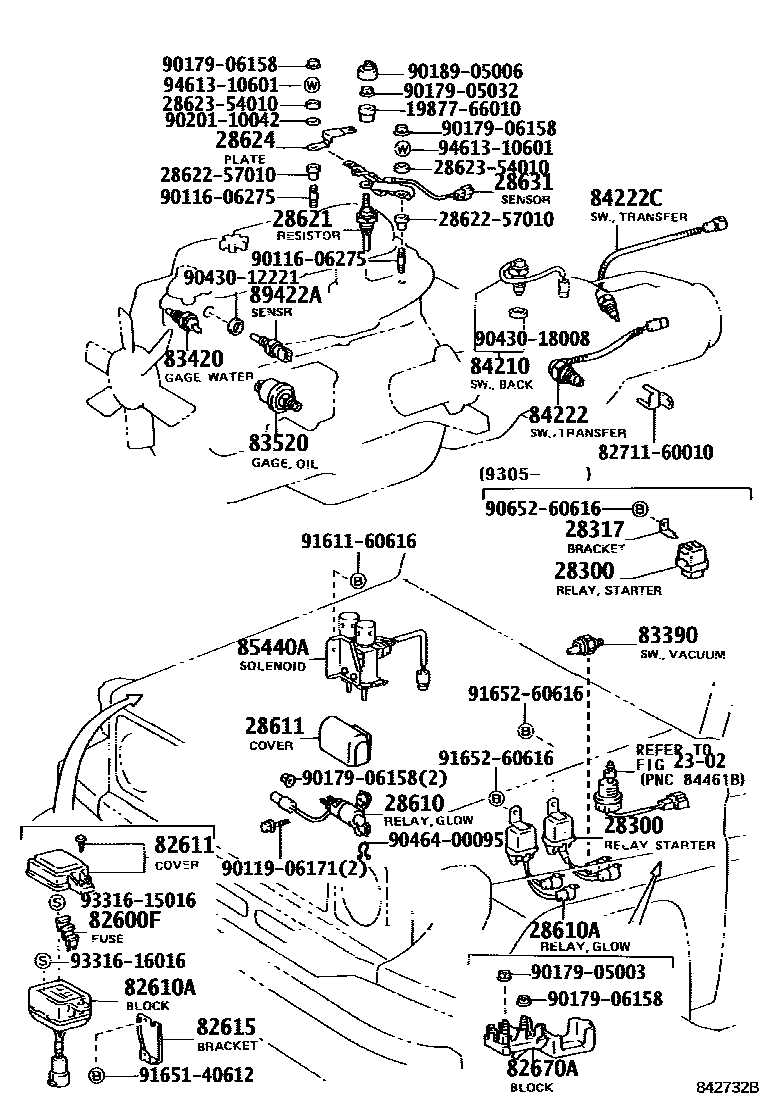

2302

28300RELAY ASSY, STARTER

main28300-17030i3B,2LT..BJ73,LJ7#199001-199305

main28300-54110i1HZ..HZJ7#199305-200108

main28300-56020i1HZ,1PZ..HZJ7#,PZJ7#199001-199908

28317BRACKET, STARTER RELAY

main28317-54020i3B,1KZT,2LT..BJ73,KZJ7#,LJ7#199305-200108

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-54280i2LT..LJ7#199001-199501

main28610-57090i1HZ,1PZ..HZJ7#,PZJ7#199001-199805

main28610-57100i3B..BJ73199001-199402

main28610-58090i2LT..LJ70..RHD..VX199001-199305

W(PARALLEL BATTERY)

28610ARELAY ASSY, GLOW PLUG(SUB)

main28601-17020i1HZ..HZJ7#199908-200108

main28610-17030i1HZ,1PZ..HZJ7#,PZJ7#199001-199908

main28610-54090i3B..BJ73199001-199402

main28610-54330i2LT..LJ7#199001-199501

main28610-67010i1KZT..KZJ7#199305-199604

28611COVER, GLOW PLUG RELAY

main28611-55010i3B,1HZ,1PZ..BJ73,HZJ7#,PZJ7#199001-199805

28621RESISTOR, GLOW PLUG

main28621-54080i2LT..LJ7#199001-199501

main28621-57021i3B..BJ73199001-199402

main28621-68020i1HZ,1PZ..HZJ7#,PZJ7#199001-199805

28624PLATE, CURRENT SENSOR

main28624-57010i3B..BJ73199001-199402

28631SENSOR, GLOW PLUG CURRENT

main28631-57020i3B..BJ73199001-199402

82600BLOCK ASSY, FUSE

main82600-60080iHZJ7#199001-199908

82600FFUSE, FUSE BLOCK

main90982-07011iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-199908

30A,GREEN

main90982-09002iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

10A

main90982-09003iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

15A

main90982-09004iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

20A,YELLOW

main90982-09005iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

7.5A

82610ABLOCK ASSY, FUSE

main82610-60060iBJ73,KZJ7#,LJ7#,RJ7#199001-200108

main82610-60080iHZJ7#199001-199908

82611COVER, FUSE BLOCK

main82611-90K00iBJ73,HZJ71,74,78,79,LJ7#,RJ7#199001-200108

main82611-90K01iHZJ7#,PZJ7#199001-199908

82615BRACKET, FUSE

main82615-60050iKZJ7#199305-199604

main82615-90K00iRJ7#..EFI199001-199604

main82615-90K01iBJ73,HZJ7#199001-200108

main82615-90K04iLJ7#199001-199501

82670ABLOCK ASSY, JUNCTION, NO.1

main82670-90K00iBJ73,RJ7#199001-199604

main82670-90K01iHZJ7#199001-200108

83390SWITCH ASSY, VACUUM WARNING

main83390-12340iHZJ7#199908-200108

main83390-30020iBJ73,HZJ7#,KZJ7#,LJ7#199001-199908

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBJ73,HZJ7#,LJ7#,RJ7#199208-199305

NIPPONDENSO

main83420-16040iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-200108

main83420-20020iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199208

main83420-20030iBJ73,HZJ7#,LJ7#,RJ7#199208-199305

YAZAKI

sub83420-16040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35030iHZJ71,74199908-200108

sub83520-35031

main83520-60010iBJ73,LJ7#,RJ7#199001-199112

sub83520-60011

main83520-60011iBJ73,LJ7#199112-199501

main83520-60020iHZJ70,73199001-199908

main83520-60030iRJ7#199208-199604

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iHZJ7#199001-200108

sub84210-52050

main84210-60021iBJ73,HZJ7#199001-199908

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60022iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-60041iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-60140iKZJ70..RHD199001-199604

main85440-60150iKZJ77,RJ7#;KZJ70,73,LJ70..LHD..VX199001-199604

W(ONE TOUCH 2-4 SELECTOR)

main85440-60170iBJ73,HZJ71,74,78,79199001-200108

main85440-60180iHZJ7#,PZJ7#199001-199908

main85440-60190iKZJ70,73..LHD..(LX,STD)199305-199604

W(RARALLEL BATTERY & ONE TOUCH 2-4 SELECTOR)

main85440-60190iLJ70,73..LHD..VX199001-199604

W(PARALLEL BATTERY)

main85440-60190iLJ70,73..LHD..VX199001-199501

W(PARALLEL BATTERY & ONE TOUCH 2-4 SELECTOR)

89422ASENSOR, WATER TEMPERATURE

main89422-20010iHZJ7#,LJ7#,PZJ7#199001-200108

main89422-30020iBJ73199001-199305

sub89422-12010

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

9011606275

main90116-06275

9011906171

main90119-06171

9017905003

main90179-05003

9017905032

main90179-05032

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9043018008

main90430-18008

9046400095

main90464-00095

9065260616

main90652-60616

9161160616

main91611-60616

9165140612

main91651-40612

9165260616

main91652-60616

9331615016

main93316-15016

9331616016

main93316-16016

9461310601

main94613-10601

44 parts on this diagram · 10 diagrams in section
