WIRING & CLAMP

0001 1ENGINE & TRANSMISSION WIRE 0002 1ENGINE & TRANSMISSION WIRE 0003 1ENGINE & TRANSMISSION WIRE 0004 1ENGINE & TRANSMISSION WIRE 0005 1COWL & INSTRUMENT PANEL WIRE 0006 1ROOF,DOOR,FLOOR WIRE 0007 1ROOF,DOOR,FLOOR WIRE 0008 1ROOF,DOOR,FLOOR WIRE 0009 1CLAMP 0010 1CLAMP 0011 1CLAMP 0012 1CLAMP & BRACKET 0013 1PROTECTOR & GROMMET

82001CABLE, BOND, NO.1

main90980-07179iRJ7#199001-199604

TRANSMISSION

main90980-07243iRJ7#199001-199604

ENGINE HANGGER

82112WIRE, ENGINE ROOM, NO.2

main82112-60020iPZJ70,73199001-199108

W(*FFA)

main82112-60020iPZJ75199001-199108

FR DIFF LOCK MOTOR

main82112-60021iHZJ7#199108-199208

W(*FFA & ELECTRIC FREE WHEEL HUB),FR DIFF LOCK MOTOR

main82112-60022iHZJ70,73199208-199908

W(*FFA)

main82112-60022iHZJ70,73199401-199908

W(*FFA & ELECTRIC FREE WHEEL HUB),FR DIFF LOCK MOTOR

main82112-60022iHZJ70,73199208-199401

W(*FFA & ELECTRIC FREE WHEEL HUB),FR DIEF LOCK MOTOR

main82112-60023iHZJ7#199908-200108

W(REAR DIFFERENTIAL LOCK)

main82112-60040iHZJ7#199208-199908

main82112-60040iHZJ7#199908-200108

W(AIR CONDITIONER)

main82112-60040iHZJ7#199001-199108

FRANCE POSSESSIONS SPEC

main82112-60040iHZJ7#199201-199208

FRANCE POSSESIONS SPEC

main82112-60060iLJ7#,RJ7#..LHD..(LX,VX)..(DSL,EFI)199001-199007

sub82112-60061

main82112-60060iLJ70..RHD;RJ70..CBR199001-199004

W(*FFA & ELECTRIC FREE WHEEL HUB)

sub82112-60061

main82112-60060iLJ70..RHD;RJ70..CBR199004-199007

W(ELECTRIC FREE WHEEL HUB)

sub82112-60061

main82112-60061iLJ7#,RJ7#..LHD..(LX,VX)..(DSL,EFI)199007-199208

W(ELECTRIC FREE WHEEL HUB)

main82112-60062iLJ7#,RJ7#..(LX,VX)..(DSL,EFI)199208-199305

W(ELECTRIC FREE WHEEL HUB)

main82112-60062iKZJ7#,LJ7#,RJ7#..LHD..(LX,VX)199305-199604

main82112-60070iHZJ7#199001-199007

W(ELECTRIC FREE WHEEL HUB)

sub82112-60071

main82112-60071iHZJ7#199007-199102

W(ELECTRIC FREE WHEEL HUB),LOCKING HUB ACTUATOR

main82112-60072iHZJ7#199102-199208

W(ELECTRIC FREE WHEEL HUB)

main82112-60073iHZJ70,73199208-199908

W(*FFA & ELECTRIC FREE WHEEL HUB),LOCKING HUB ACTUATOR

main82112-60090iRJ70..CBR199208-199305

main82112-90K01iRJ70..CBR199001-199208

main82112-90K02iLJ70..RHD..VX199001-199208

W(ONE TOUCH 2-4 SELECTOR)

82113WIRE, ENGINE ROOM, NO.3

main82113-60032iLJ7#,RJ7#..LX,VX199208-199604

main82113-60040iHZJ7#199001-199007

sub82113-60041

main82113-60041iHZJ7#199007-199102

main82113-60042iHZJ7#199102-199208

main82113-60043iHZJ70,73199208-199908

82114WIRE, ENGINE ROOM, NO.4

main82114-60020iRJ70..CBR199001-199012

main82114-60021iRJ70..CBR199012-199108

main82114-60022iRJ70..CBR199108-199305

main82114-60040iRJ7#..EFI199208-199305

main82114-60041iRJ7#199305-199604

main82114-90K09iRJ7#..EFI199001-199208

82123WIRE, ENGINE, NO.3

main82123-60190iKZJ7#199305-199604

main82123-60230iHZJ7#199908-200108

main82123-90K05iLJ7#,RJ7#199001-199604

main82123-90K07iBJ73,HZJ7#,PZJ7#199001-199908

82125WIRE, TRANSMISSION

main82125-60120iLJ7#,PZJ70,73,RJ7#199001-199108

main82125-60121iLJ7#,RJ7#199108-199305

main82125-60122iKZJ7#,LJ7#,RJ7#199305-199604

main82125-60130iPZJ75199001-199108

main82125-60131iPZJ75199108-199208

main82125-60160iHZJ7#199001-199108

main82125-60161iHZJ7#199108-199208

main82125-60162iHZJ70,73199208-199908

main82125-60163iHZJ71,74199908-200108

main82125-60172iHZJ75199208-199908

main82125-60173iHZJ78,79199908-200108

sub82125-60174

main82125-60200iBJ73199001-199402

82219WIRE, THERMO SENSOR

main82219-90K00iHZJ75..PIC;KZJ70..LHD..VX;KZJ70..HT..(LX,STD);BJ73,HZJ70,73,KZJ73,77,LJ7#,RJ7#199001-199908

main82219-90K01iHZJ75,PZJ75..PIC;HZJ70,73,PZJ70,73199001-199501

W(WINCH)

main82219-90K01iHZJ70,73;HZJ75..PIC199501-199908

W(WINCH) OR W(ALTIMETER + THERMOMETER)

82275ACABLE, BATTERY TO MAGNET SWITCH

main82275-60040iLJ70..RHD..LX199108-199305

W(WINCH) & (PARALLEL BATTERY)

main82275-60040iKZJ70..RHD..LX199001-199501

W(WINCH) & W(PARALLEL BATTERY)

main82275-90K01iHZJ7#199001-200108

main82275-90K02iLJ70,73,RJ7#..LHD199001-199501

W(WINCH)

main82275-90K02iKZJ70,73..LHD..LX199501-199604

82276ACABLE, MAGNET SWITCH TO WINCH

main82276-60030iRJ70..CBR199001-199305

main82276-60040iKZJ70..LHD..VX;HZJ7#,KZJ70,73,LJ7#,RJ7#..LX,STD199001-200108

82284WIRE, EARTH

main82284-60030iKZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD199001-199604

main82284-60040iHZJ7#199001-200108

82823ACAP, TERMINAL, NO.2

main82823-90300iHZJ7#199001-200108

82823TCAP, ALTERNATOR TERMINAL

main82823-12020iBJ73199001-199208

main82823-17010iHZJ7#,PZJ7#,RJ7#..DSL,EFI199001-199908

main82823-22050iHZJ7#199908-200108

TYPE B

main82823-22060iHZJ7#,LJ7#,PZJ7#199001-199012

main82823-32020iBJ73199305-199402

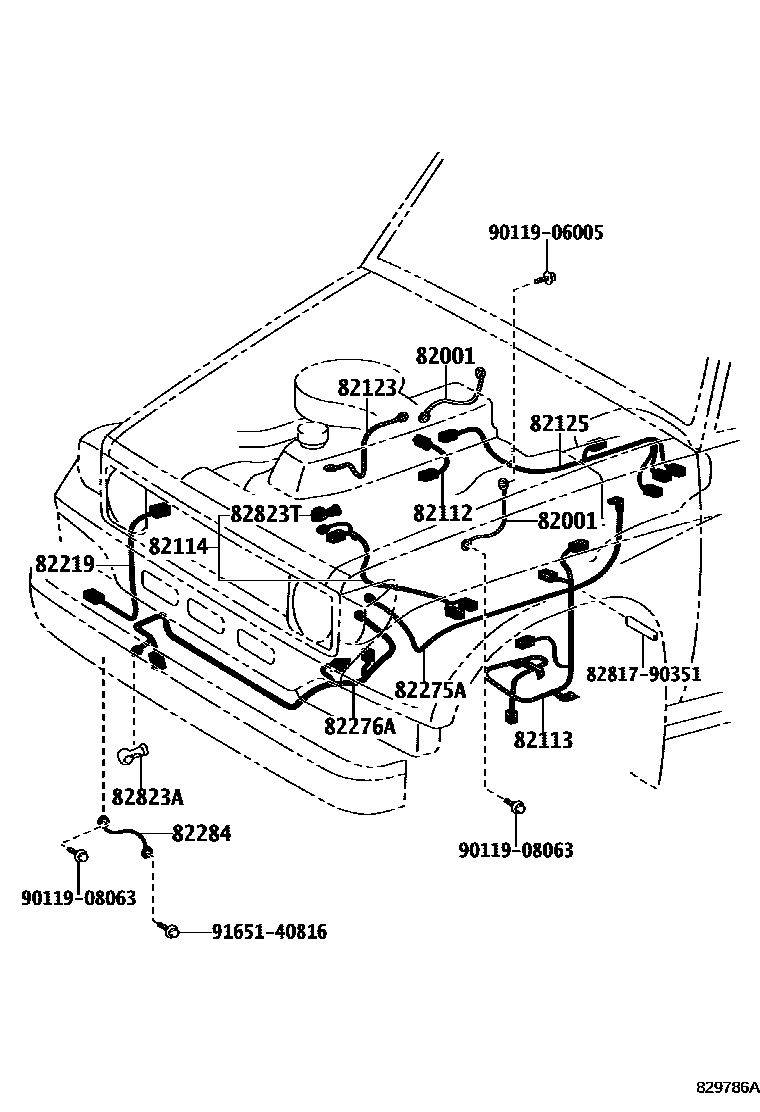

8281790351PROTECTOR, WIRING HARNESS, NO.1

main82817-90351

9011906005

main90119-06005

9011908063

main90119-08063

9165140816

main91651-40816

16 parts on this diagram · 13 diagrams in section
