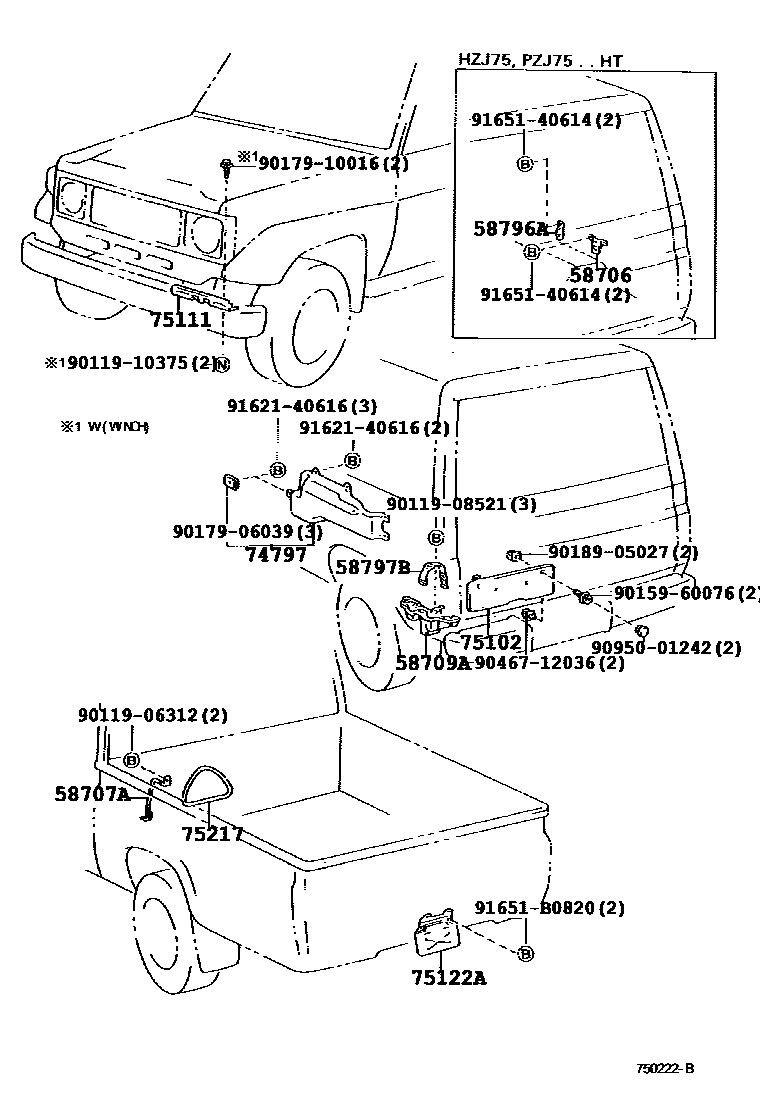

TOOL BOX & LICENSE PLATE BRACKET

58706BRACKET SUB-ASSY, JACK HANDLE

main58706-90K00iHZJ78199001-200108

58707AHOLDER SUB-ASSY, JACK

main58707-60010iHZJ79199908-200008

main58707-60020iHZJ79200008-200108

main58707-90K01iHZJ75..PIC199001-199908

58709ACARRIER SUB-ASSY, JACK

main58709-60010iHZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT199404-200108

main58709-90K01iBJ73,HZJ70,73,KZJ70,73,LJ7#,RJ7#199001-199404

sub58709-60010

main58709-90K02iHZJ75,KZJ77..HT199001-199404

sub58709-60010

58796AHOOK, JACK CLAMP

main58796-90K00iHZJ75,78,PZJ75..HT199001-200108

58797BBAND, JACK CLAMP

main58797-90K02iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200108

74797BOX, WARNING REFLECTOR

main74797-90K00iBJ73,HZJ73,74,LJ73,PZJ73,RJ73199001-200108

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-60080iHZJ71,74199001-200108

75111BRACKET, FRONT LICENSE PLATE

main75111-60050iKZJ70,73..LHD..LX199305-199604

W(WINCH)

main75111-60050iHZJ7#199001-200108

main75111-60100iKZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD199305-199604

W(WINCH & OUER FENDER)

75122ABRACKET, REAR LICENSE PLATE, NO.2

main75122-60040iHZJ75,79,PZJ75..PIC199001-200108

75217BAND, TOOL BAG

main75217-90300iHZJ75,79,PZJ75..PIC199001-200108

9011906312

main90119-06312

9011908521

main90119-08521

9011910375

main90119-10375

9015960076

main90159-60076

9017906039

main90179-06039

9017910016

main90179-10016

9018905027

main90189-05027

9046712036

main90467-12036

9095001242

main90950-01242

9162140616

main91621-40616

9165140614

main91651-40614

91651B0820

main91651-B0820

22 parts on this diagram · 1 diagram in section
