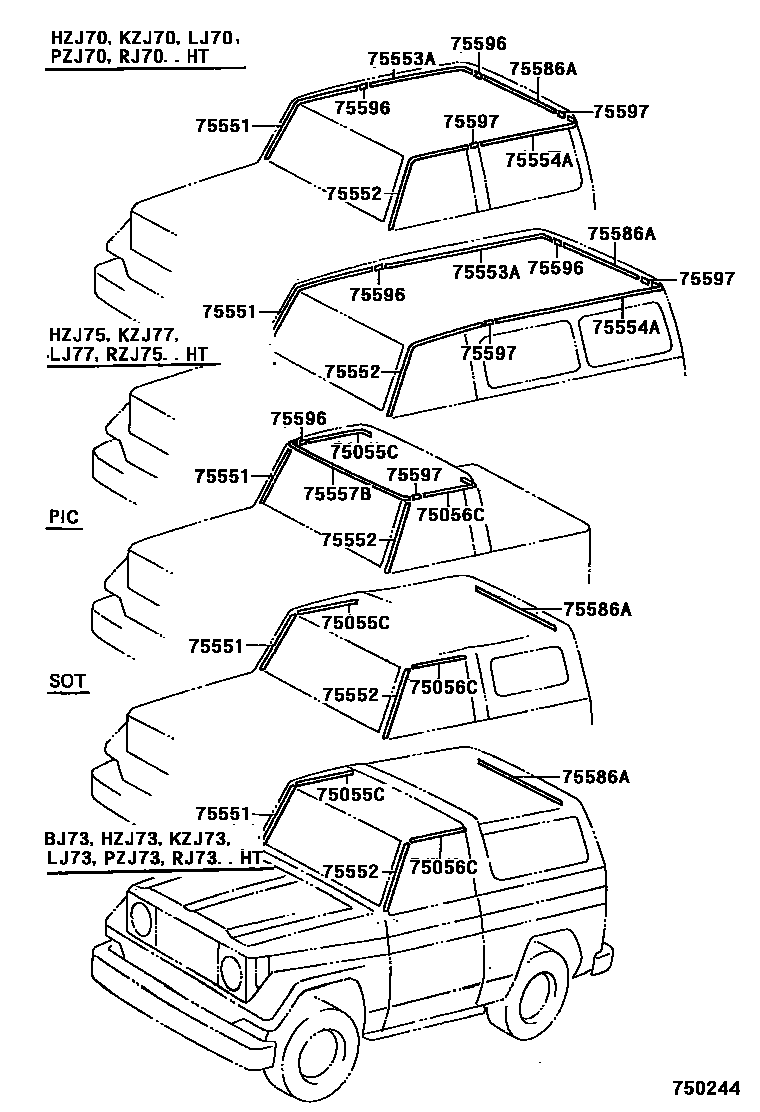

MOULDING

0001 1 0002 1

75055CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH

main75055-60010iHZJ79199908-200108

main75055-90K00iHZJ75..PIC199708-199908

main75055-90K02iKZJ73..VX199001-199604

*FRG

main75055-90K02iHZJ74199001-200108

75056CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR LH

main75056-60010iHZJ79199908-200108

main75056-90K00iHZJ75..PIC199708-199908

main75056-90K02iKZJ73..VX199001-199604

*FRG

main75056-90K02iHZJ73199001-200108

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-60010iKZJ77199001-199604

PLATED

main75505-60010iLJ77;LJ70..RHD..VX199001-199102

PLATED,*FRG

main75505-90K00iHZJ70199102-200108

PLATED

main75505-90K00iKZJ70..LHD..HT199305-199604

PLATED,*FRG OR ITALY SPEC

main75505-90K00iLJ70,RJ70..LHD..HT..(CBR,DSL)199102-199305

PLATED,*FRG

main75505-90K00iLJ70199305-199501

PLATED,ITALY SPEC

main75505-90K01iHZJ78199708-200108

PLATED

main75505-90K03iKZJ73..VX199001-199604

PLATED,*FRG

main75505-90K03iHZJ74;LJ73..VX199001-200108

PLATED

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-60010iLJ77;LJ70..RHD..VX199001-199102

PLATED,*FRG

main75506-60010iKZJ77199001-199604

PLATED

main75506-90K00iKZJ70..RHD..VX199102-200108

PLATED

main75506-90K00iLJ70,RJ70..LHD..HT..(CBR,DSL)199102-199305

PLATED,*FRG

main75506-90K00iLJ70199305-199501

PLATED,ITALY SPEC

main75506-90K00iKZJ70..RHD..VX199305-199604

PLATED,*FRG OR ITALY SPEC

main75506-90K01iHZJ78199708-200108

PLATED

main75506-90K03iKZJ73..LX199001-200108

PLATED

main75506-90K03iKZJ73..LX199001-199604

PLATED,*FRG

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-60010iKZJ77199004-199604

main75553-90K00iLJ70199305-199501

ITALY SPEC

main75553-90K00iLJ70,RJ70..LHD..HT..(CBR,DSL)199001-199305

*FRG

main75553-90K00iHZJ71;LJ70..RHD..VX199001-200108

main75553-90K00iKZJ70..RHD..VX199305-199604

*FRG OR ITALY SPEC

main75553-90K01iHZJ75..HT199708-200108

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-60010iLJ77199004-199604

main75554-90K00iKZJ70..RHD..VX199305-199604

*FRG OR ITALY SPEC

main75554-90K00iHZJ70199001-200108

main75554-90K00iLJ70,RJ70..LHD..HT..(CBR,DSL)199001-199305

*FRG

main75554-90K00iLJ70199305-199501

ITALY SPEC

main75554-90K01iHZJ78199708-200108

75557BMOULDING, ROOF DRIP, FRONT

main75557-90K00iHZJ75..PIC199708-199908

75586AMOULDING, ROOF DRIP, REAR

main75089-90K01iLJ73..LX199001-199604

*FRG

main75089-90K01iHZJ74;LJ73..VX199001-200108

main75586-90K00iHZJ70,75..HT199001-200108

main75586-90K00iKZJ77;KZJ70..RHD..VX199305-199604

*FRG OR ITALY SPEC

main75586-90K00iLJ70,RJ70..LHD..HT..(CBR,DSL)199001-199305

*FRG

main75586-90K00iLJ70199305-199501

ITALY SPEC

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75502-60010iHZJ71,78199708-200108

main75502-60010iLJ77;LJ70..RHD..VX199004-199305

*FRG

main75502-60010iLJ70199305-199501

ITALY SPEC

main75502-60010iKZJ77;KZJ70..RHD..VX199305-199604

GERMANY SPEC OR ITALY SPEC

main75596-90A00iLJ70..RHD..VX199001-199004

*FRG,SIDE & REAR

main75596-90A00iLJ70,RJ70..LHD..HT..(CBR,DSL)199001-199004

SIDE & REAR

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75502-60010iHZJ79199708-200108

main75502-60010iLJ77;LJ70..RHD..VX199004-199305

*FRG

main75502-60010iLJ70199305-199501

ITALY SPEC

main75502-60010iKZJ77;KZJ70..RHD..VX199305-199604

GERMANY SPEC OR ITALY SPEC

main75596-90A00iLJ70..RHD..VX199001-199004

*FRG,SIDE & REAR

main75596-90A00iLJ70,RJ70..LHD..HT..(CBR,DSL)199001-199004

SIDE & REAR

10 parts on this diagram · 2 diagrams in section
