BATTERY CARRIER

74403ACARRIER SUB-ASSY, BATTERY

main74403-60110iLJ70..RHD..LX¥3,280199001-199108

COLD SPEC & W(80D26R X2 PARALLEL BATTERY),RH

sub74403-60111¥7,400

main74403-60110iLJ70..RHD..VX¥3,280199001-199201

RH

sub74403-60111¥7,400

main74403-60110iLJ70..RHD..LX¥3,280199108-199201

COLD SPEC,RH

sub74403-60111¥7,400

main74403-60111iKZJ70..RHD..VX¥7,400199201-199604

COLD SPEC,LH-RR

main74403-60111iKZJ70..RHD..LX¥7,400199201-199604

LH-RR

main74403-60150iHZJ7#¥8,200199201-199908

RH

main74403-60150iBJ73¥8,200199305-199402

main74403-60160iHZJ7#¥8,400199201-200108

LH

main74403-60170iKZJ70..LX,STD;KZJ70..LHD..VX;KZJ73,77,LJ7#,RJ7#¥8,100199201-199604

COLD SPEC

main74403-60170iKZJ70..RHD..LX¥8,100199201-199604

LH-FR

main74403-60170iKZJ70..RHD..LX¥8,100199201-199604

COLD SPEC,LH-FR

main74403-60200iHZJ7#¥2,700199908-200108

RH

sub74403-60240¥1,700

main74403-90K01iLJ7#..LHD¥8,100199108-199201

COLD SPEC,LH

sub74403-60170¥8,100

main74403-90K01iLJ70..RHD..LX¥8,100199108-199201

COLD SPEC

sub74403-60170¥8,100

main74403-90K01iLJ70..RHD..VX¥8,100199001-199201

LH

sub74403-60170¥8,100

main74403-90K01iLJ70..RHD..LX¥8,100199004-199108

COLD SPEC & W(55D23R X2 PARALLEL BATTERY),LH

sub74403-60170¥8,100

main74403-90K01iLJ70,73..LHD¥8,100199001-199108

COLD SPEC & W(75D31R X 75D31L PARALLEL BATTERY)

sub74403-60170¥8,100

main74403-90K03iBJ73¥8,100199001-199201

RH

sub74403-60150¥8,200

main74403-90K04iHZJ7#,PZJ7#¥8,100199001-199201

LH

sub74403-60160¥8,400

74433BSUPPORT, BATTERY TRAY, NO.1

main74401-90K00iRJ70..CBR¥3,910199001-199305

main74433-90K01iLJ70..LX,STD;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI¥3,580199001-199604

74434BSUPPORT, BATTERY TRAY, NO.2

main74402-60020iLJ7#,RJ7#..DSL,EFI¥3,580199001-199604

main74434-90K00iRJ70..CBR¥4,680199001-199305

main74434-90K03iHZJ7#¥3,590199001-200108

74435SUPPORT, BATTERY TRAY, NO.3

main74435-60010iLJ70..RHD..VX¥1,570199001-199305

main74435-60010iLJ70..RHD..LX¥1,570199001-199108

COLD SPEC & W(55D23R X2 PARALLEL BATTERY)

main74435-60010iKZJ70..RHD..VX¥1,570199108-199604

COLD SPEC

main74435-60020iKZJ70,73,LJ7#..LHD¥2,730199108-199604

COLD SPEC

main74435-60020iLJ70,73..LHD¥2,730199001-199108

COLD SPEC & W(75D31R X 75D31L PARALLEL BATTERY)

main74435-90K01iBJ73¥2,940199001-199402

main74435-90K01iHZJ7#¥2,940199001-200108

RH

main74435-90K02iHZJ7#,PZJ7#¥3,940199001-200108

LH

74436SUPPORT, BATTERY TRAY, NO.4

main74436-60010iLJ70..RHD..LX¥2,120199001-199108

COLD SPEC & W(80D26R X2 PARALLEL BATTERY)

main74436-60010iKZJ70..RHD..LX¥2,120199108-199604

COLD SPEC

main74436-60010iLJ70..RHD..VX¥2,120199001-199305

main74436-90K00iLJ70,73..LHD¥6,300199001-199108

COLD SPEC & W(75D31R X 75D31L PARALLEL BATTERY)

main74436-90K00iKZJ70,73,LJ7#..LHD¥6,300199108-199604

COLD SPEC

main74436-90K01iHZJ7#¥4,170199001-200108

74481CLAMP, BATTERY HOLD DOWN

main74404-60070iLJ70..RHD..LX¥2,440199001-199108

COLD SPEC & W(80D26R X2 PARALLEL BATTERY),LH-FR

sub74404-60071¥2,440

main74404-60070iLJ70..RHD..LX¥2,440199001-199108

COLD SPEC & W(75D31R X 75D31L PARALLEL BATTERY),LH

sub74404-60071¥2,440

main74404-60070iLJ70..RHD..LX¥2,440199108-199201

COLD SPEC,LH-FR

sub74404-60071¥2,440

main74404-60070iLJ7#..LHD¥2,440199108-199201

COLD SPEC,LH

sub74404-60071¥2,440

main74404-60070iLJ73,77,RJ7#;LJ70..LX,STD;LJ70..LHD..VX¥2,440199001-199201

LH-FR

sub74404-60071¥2,440

main74404-60071iKZJ70..RHD..LX¥2,440199201-199604

LH-FR

main74404-60071iKZJ70,73,LJ7#..LHD¥2,440199201-199604

COLD SPEC,LH

main74404-60071iKZJ70..LX,STD;KZJ70..LHD..VX;KZJ73,77,LJ7#,RJ7#¥2,440199201-199604

COLD SPEC,LH-FR

main74404-60090iHZJ7#¥2,270199201-200108

LH

main74404-90K01iHZJ7#,PZJ7#¥2,260199001-199201

LH

sub74404-60090¥2,270

main74405-60010iLJ7#..LHD¥2,190199108-199201

COLD SPEC,RH

sub74405-60011¥2,360

main74405-60010iLJ70,73..LHD¥2,190199001-199108

COLD SPEC & W(75D31R X 75D31L PARALLEL BATTERY),RH

sub74405-60011¥2,360

main74405-60011iLJ70,73..LHD¥2,360199201-199604

COLD SPEC,RH

main74405-60020iLJ70..RHD..LX¥2,360199001-199108

COLD SPEC & W(80D26R X2 PARALLEL BATTERY),LH-RR

sub74405-60021¥2,360

main74405-60020iLJ70..RHD..VX¥2,360199001-199201

LH-RR

sub74405-60021¥2,360

main74405-60020iLJ70..RHD..LX¥2,360199108-199201

COLD SPEC,LH-RR

sub74405-60021¥2,360

main74405-60021iLJ70..RHD..VX¥2,360199201-199604

LH-RR

main74405-60021iLJ70..RHD..VX¥2,360199201-199604

COLD SPEC,LH-RR

main74405-60030iHZJ7#¥2,270199201-200108

RH

main74405-60030iBJ73¥2,270199201-199402

main74405-90K01iHZJ7#,PZJ7#¥2,260199001-199201

RH

sub74405-60030¥2,270

9011906590

main90119-06590¥80

9011908681

main90119-08681¥160

9017906223

main90179-06223¥120

9017906231

main90179-06231¥90

9017908017

main90179-08017¥190

9411040600

main94110-40600¥80

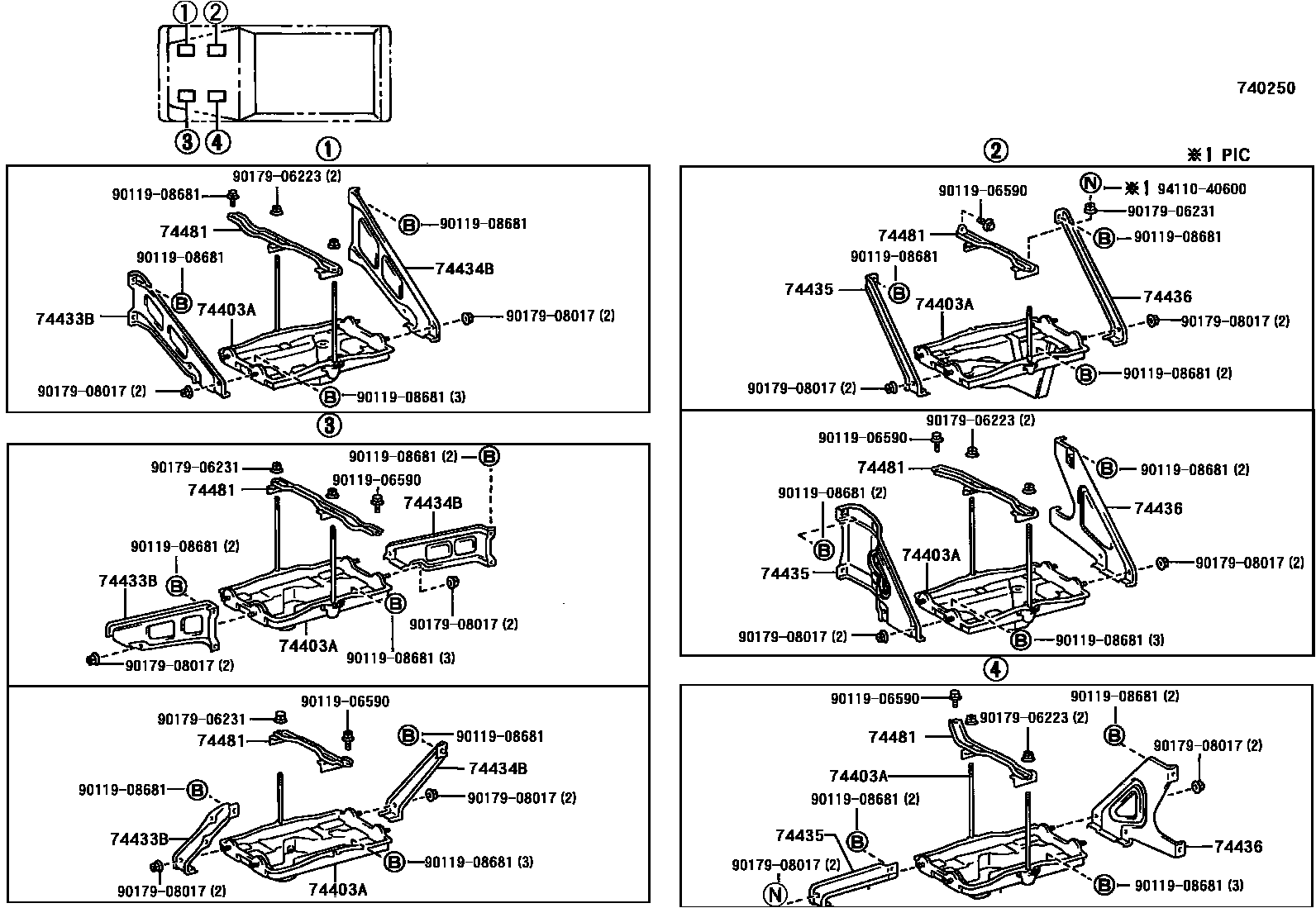

12 parts on this diagram · 1 diagram in section
