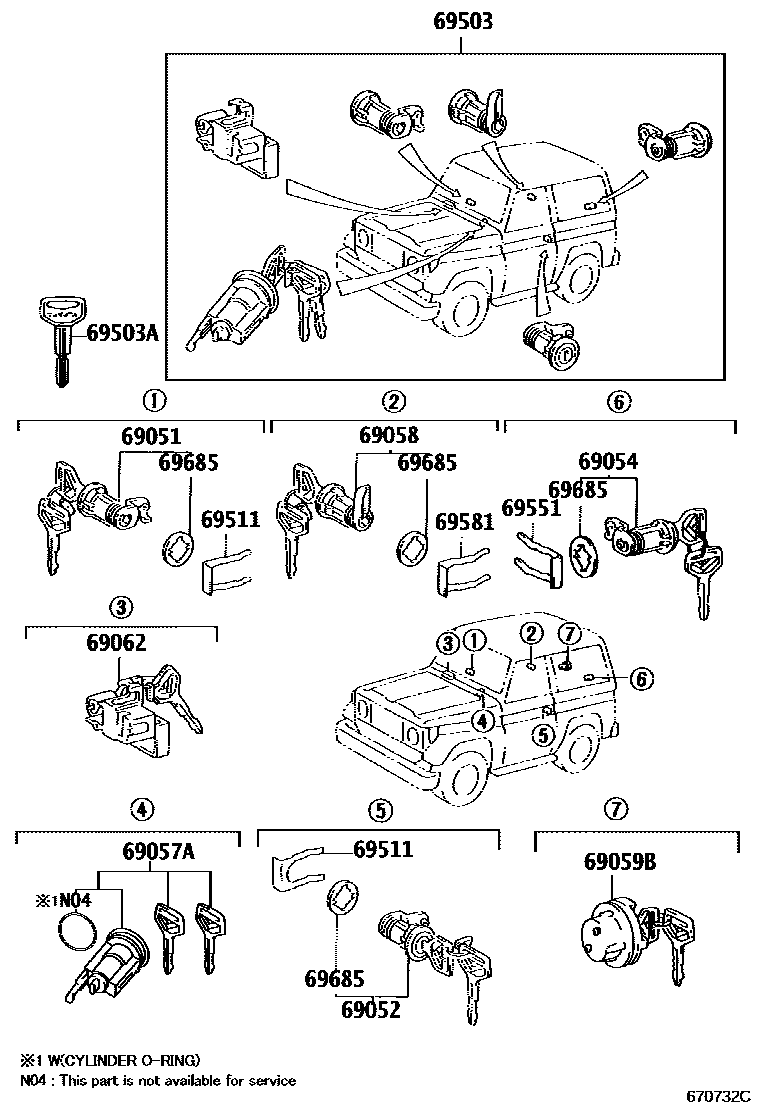

LOCK CYLINDER SET
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
sub69057-60051
sub69057-60130
sub69057-60130
W(SASH DETACHABLE TYPE)
W(AWNING DETHCHABLE GLASS)
W(DESORPTION GLASS)
sub69057-60201
W/O(CYLINDER O-RING)
sub69057-60211
W(CYLINDER O-RING)
sub69057-60120
sub69057-60130
69059BCAP & KEY SET, SPARE WHEEL SERVICE HOLE
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
69503CYLINDER SET, LOCK
sub69005-60371
sub69005-60381
W(GLOVE BOX W/KEY),BLACK,TRIM1#,4#
sub69005-60371
BLACK,TRIM1#,4#
W(GLOVE BOX W/KEY),BLACK,TRIM1#,4#
W(BACK DOOR SASH DETACHABLE TYPE & GLOVE BOX W/KEY),BLACK,TRIM1#,4#
W(AWNING DETHCHABLE GLASS),BLACK,TRIM1#,4#
W(DESORPTION GLASS),BLACK,TRIM1#,4#
W(SASH DETACHABLE TYPE)
W(GLOVE BOX W/KEY),BLACK,TRIM1#,4#
sub69005-60381
W(GLOVE BOX W/KEY),BLACK,TRIM1#,4#
sub69005-60401
W(BACK DOOR SASH DETACHABLE TYPE & GLOVE BOX W/KEY),BLACK,TRIM1#,4#
sub69005-6A571
W(BACK DOOR SASH DETACHABLE TYPE & GLOVE BOX W/KEY),BLACK,TRIM1#,4#
sub69005-6B612
sub69005-6A611
sub69005-6A752
sub69005-6A753
sub69005-60371
sub69005-6A240
69503AKEY, BLANK
SUB KEY
MASTER KEY,W(*68)
MASTER KEY,W(*68)
69511RETAINER, FRONT DOOR LOCK CYLINDER
69551RETAINER, BACK DOOR LOCK CYLINDER
69581RETAINER, FUEL FILLER LID CYLINDER
69685PAD, LOCK CYLINDER
FOR FUEL LID
13 parts on this diagram · 2 diagrams in section
