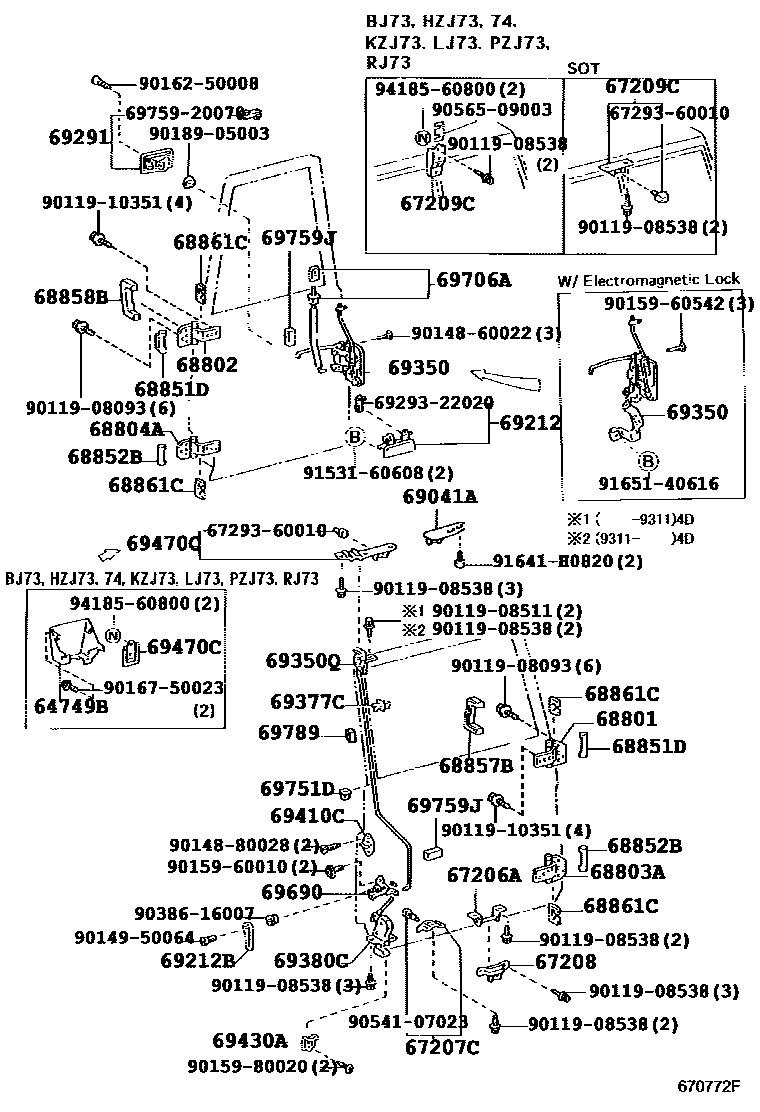

BACK DOOR LOCK & HINGE

64749BCOVER, BACK DOOR STRIKER

main64749-90K01iBJ73,HZJ73,LJ73,PZJ73,RJ73¥1,590199001-199908

main64749-90K01-B0iHZJ74199908-200108

LT.GRAY,TRIM1#,4#

sub64749-90K01¥1,590

67206ABRACKET SUB-ASSY, BACK DOOR STOPPER

main67206-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT¥940199001-200108

67207CSTOPPER SUB-ASSY, BACK DOOR

main67207-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT¥660199001-200108

67208STOPPER SUB-ASSY, BACK DOOR, NO.2

main67208-60030iBJ73,HZJ70,71,73,74,75,78,LJ7#,RJ7#..HT,SOT¥2,490199208-200108

sub67208-60031¥1,560

main67208-90K00iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT¥2,490199001-199208

sub67208-60030¥2,490

67209CSTOPPER SUB-ASSY, BACK DOOR, NO.3

main67209-60010iKZJ70..SOT¥620199202-199604

sub67209-60011¥380

main67209-90K00iBJ73,HZJ73,74,LJ73,PZJ73,RJ73¥740199001-200108

main67209-90K01iLJ70..SOT¥620199001-199202

sub67209-60010¥620

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥6,200199001-200108

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-90K00iHZJ71,74,78¥5,700199001-200108

68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH

main68803-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥6,000199001-200108

68804AHINGE SUB-ASSY, BACK DOOR, LOWER LH

main68804-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT¥5,400199001-200108

68851DCOVER, BACK DOOR HINGE, UPPER

main68851-90K00iHZJ71,74,78¥510199001-200108

68852BCOVER, BACK DOOR HINGE, LOWER

main68852-90K00iHZJ71,74,78¥510199001-200108

68857BPROTECTOR, BACK DOOR HINGE, RH

main68857-90K00iKZJ73..LX¥1,160199001-199604

*FRG

main68857-90K00iKZJ70..LHD..HT¥1,160199305-199604

*FRG OR ITALY SPEC

main68857-90K00iLJ70¥1,160199305-199501

ITALY SPEC

68858BPROTECTOR, BACK DOOR HINGE, LH

main68858-90K00iKZJ73..LX¥1,160199305-199604

*FRG OR ITALY SPEC

main68858-90K00iKZJ77;KZJ73..VX;KZJ70..RHD..VX¥1,160199001-199604

*FRG

main68858-90K00iLJ70¥1,160199305-199501

ITALY SPEC

68861CPAD, BACK DOOR HINGE MALE, RH

main68861-90K00iHZJ71,74,78¥180199001-200108

69041ASTOPPER SUB-ASSY, BACK DOOR, UPPER

main69041-60010iHZJ71,78¥2,250199908-200108

sub69041-60011¥1,410

69212HANDLE, BACK DOOR OUTSIDE, LH

main69220-32010iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥2,220199001-200108

69212BHANDLE, BACK DOOR INSIDE

main69212-60030iHZJ7#..HT¥870199604-200108

main69212-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥1,400199001-199604

sub69212-60030¥870

sub90149-50064¥80

69291HANDLE ASSY, BACK DOOR INSIDE

main69206-10050-26iHZJ70,73199001-199501

LIGHT SABLE,TRIM4#

sub69206-10050¥1,540

sub69206-10030¥1,430

main69206-10050-26iBJ73,KZJ7#,LJ7#,RJ7#..HT199305-199408

LIGHT SABLE,TRIM4#,LH

sub69206-10050¥1,540

sub69206-10030¥1,430

main69206-10050-33iHZJ70,73199305-199508

LIGHT GRAY,TRIM1#,LH

sub69206-10050¥1,540

sub69206-10030¥1,430

main69206-10050-33iBJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..HT199001-199908

LIGHT GRAY,TRIM1#

sub69206-10050¥1,540

sub69206-10030¥1,430

main69206-10050-B0iHZJ71,74199908-200108

W(TRIM W/VINYL LEATHER),BLUE GRAY,TRIM1#

sub69206-10050¥1,540

sub69206-10030¥1,430

main69206-10050-E0iHZJ71,74199508-200108

W(TRIM W/VINYL LEATHER),LIGHT OAK,TRIM4#

sub69206-10050¥1,540

sub69206-10030¥1,430

main69206-10050-E0iHZJ70,73199501-199508

LIGHT OAK,TRIM4#

sub69206-10050¥1,540

sub69206-10030¥1,430

main69206-10050-E0iHZJ70,73199501-199508

LIGHT OAK,TRIM4#,LH

sub69206-10050¥1,540

sub69206-10030¥1,430

main69209-90K00-13iLJ70;KZJ70..LHD..VX;KZJ70,73,LJ73..HT..(LX,STD)199001-199501

W/O REAR SEAT,LIGHT GRAY,TRIM1#,LH

sub69209-90K00¥1,620

main69209-90K00-13iLJ70;KZJ70..LHD..VX;KZJ70,73,LJ73..HT..(LX,STD)199001-199501

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT GRAY,TRIM1#,LH

sub69209-90K00¥1,620

main69209-90K00-13iRJ7#199001-199501

LIGHT GRAY,TRIM1#,LH

sub69209-90K00¥1,620

main69209-90K00-13iRJ7#199501-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT GRAY,TRIM1#

sub69209-90K00¥1,620

main69209-90K00-13iHZJ75..HT;KZJ70..SOT199305-199908

LIGHT GRAY,TRIM1#

sub69209-90K00¥1,620

main69209-90K00-13iHZJ75..HT;KZJ70..SOT199305-199908

W/O REAR SEAT,LIGHT GRAY,TRIM1#

sub69209-90K00¥1,620

main69209-90K00-16iHZJ75..HT199001-199501

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT SABLE,TRIM4#,LH

sub69209-90K00¥1,620

main69209-90K00-16iLJ70..SOT;PZJ75..HT199001-199501

LIGHT SABLE,TRIM4#,LH

sub69209-90K00¥1,620

main69209-90K00-16iLJ70..SOT;PZJ75..HT199001-199501

W/O REAR SEAT,LIGHT SABLE,TRIM4#,LH

sub69209-90K00¥1,620

main69209-90K00-16iHZJ75..HT199305-199501

LIGHT SABLE,TRIM4#

sub69209-90K00¥1,620

main69209-90K00-16iHZJ75..HT199305-199501

W/O REAR SEAT,LIGHT SABLE,TRIM4#

sub69209-90K00¥1,620

main69209-90K00-B0iHZJ71,74,78199908-200108

BLUE GRAY,TRIM1#

sub69209-90K00¥1,620

main69209-90K00-E0iHZJ70,73,KZJ70,73..HT..(LX,STD)199501-199908

W/O REAR SEAT,LIGHT OAK,TRIM4#

sub69209-90K00¥1,620

main69209-90K00-E0iHZJ70,73,KZJ70,73..HT..(LX,STD)199501-200108

LIGHT OAK,TRIM4#

sub69209-90K00¥1,620

main69209-90K00-E0iRJ7#199501-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT OAK,TRIM4#

sub69209-90K00¥1,620

69350LOCK ASSY, BACK DOOR

main69110-60030iLJ70,73..VX¥16,700199001-199108

W(*EL)

main69110-60040iHZJ7#,PZJ75..HT¥16,700199001-199305

W(*EL)

main69110-60041iHZJ75..HT¥15,100199305-199308

W(*EL)

main69110-60070iLJ70,73..VX¥17,500199108-199305

W(*EL)

main69110-60071iHZJ71,74¥10,800199305-200108

W(*EL)

main69110-60080iHZJ70,73¥17,500199108-199305

W(*EL)

main69110-60081iHZJ70,73¥17,300199305-199908

W(*EL)

main69350-60080iHZJ71,74,78¥6,800199108-200108

main69350-90K00iHZJ75..HT;KZJ70..SOT¥5,400199001-199908

sub69350-60080¥6,800

69350QLOCK ASSY, BACK DOOR, UPPER

main69350-60070iLJ77¥5,400199004-199311

sub69350-60071¥5,400

main69350-60071iKZJ77¥5,400199311-199604

sub69350-60072¥5,400

main69350-90K01iHZJ71,74¥5,400199001-200108

sub69350-60170¥5,400

main69350-90K02iHZJ75..HT¥5,500199001-200108

sub69350-60180¥5,400

main69350-90K03iBJ73,HZJ73,KZJ73,LJ73,RJ73..LX,VM¥5,500199001-200108

W(SASH DETACHABLE TYPE)

main69350-90K03iLJ73..VX¥5,500199011-199305

W(AWNING DETHCHABLE GLASS)

main69350-90K03iKZJ73..VX¥5,500199305-199604

W(DESORPTION GLASS)

69377CSNAP, DOOR LOCK CONTROL ROD

main69377-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT¥140199001-200108

69380CLOCK ASSY, BACK DOOR, LOWER

main69380-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT¥3,640199001-200108

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-14050iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT¥1,700199001-199004

sub69410-20070¥1,710

main69410-87001iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥710199004-200108

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥1,540199001-200108

sub69430-60050¥950

69470CSTRIKER ASSY, BACK DOOR UPPER LOCK

main69470-60020iHZJ70,75,KZJ70,77,LJ70,RJ70..HT¥1,550199202-199908

main69470-60021iHZJ71,78¥1,540199908-200108

sub69470-60022¥1,530

main69470-90K00iHZJ70,LJ70,77,PZJ70,75,RJ70..HT¥1,540199001-199202

sub69470-60020¥1,550

main69470-90K01iHZJ74¥1,940199001-200108

sub69470-60040¥1,920

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT¥1,560199001-200108

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-90K00-13iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT199001-199908

LIGHT GRAY,TRIM1#

sub69706-90K00¥1,820

main69706-90K00-16iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-199501

LIGHT SABLE,TRIM4#

sub69706-90K00¥1,820

main69706-90K00-B0iHZJ71,74,78199908-200108

BLUE GRAY,TRIM1#

sub69706-90K00¥1,820

main69706-90K00-E0iHZJ71,74,78199908-200108

MD.OAK,TRIM4#

sub69706-90K00¥1,820

main69706-90K00-E0iHZJ7#,KZJ7#,RJ7#..HT,SOT199501-199908

LIGHT OAK,TRIM4#

sub69706-90K00¥1,820

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ75,RJ7#..HT¥140199108-200108

69759JSILENCER, DOOR LOCK LINK

main69759-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT¥140199001-200108

69789SILENCER, BACK DOOR LOCK CONTROL LINK

main69789-60020iBJ73,HZJ7#,LJ7#,PZJ75,RJ7#..HT¥240199201-199312

6729360010CUSHION, BACK DOOR LOWER STOPPER

main67293-60010¥200

6929322020HANDLE, BACK DOOR

main69293-22020¥280

6975920070SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20070¥140

9011908093

main90119-08093¥90

9011908511

main90119-08511¥340

9011908538

main90119-08538¥90

9011910351

main90119-10351¥360

9014860022

main90148-60022¥60

9014880028

main90148-80028¥60

9014950064

main90149-50064¥80

9015960010

main90159-60010¥70

9015960542

main90159-60542¥110

9015980020

main90159-80020¥120

9016250008

main90162-50008¥70

9016750023

main90167-50023¥120

9018905003

main90189-05003¥130

9038616007

main90386-16007¥110

9054107023

main90541-07023¥110

9056509003

main90565-09003¥390

9153160608

main91531-60608¥60

91641H0820

main91641-H0820¥90

9165140616

main91651-40616¥60

9418560800

main94185-60800¥100

53 parts on this diagram · 1 diagram in section
