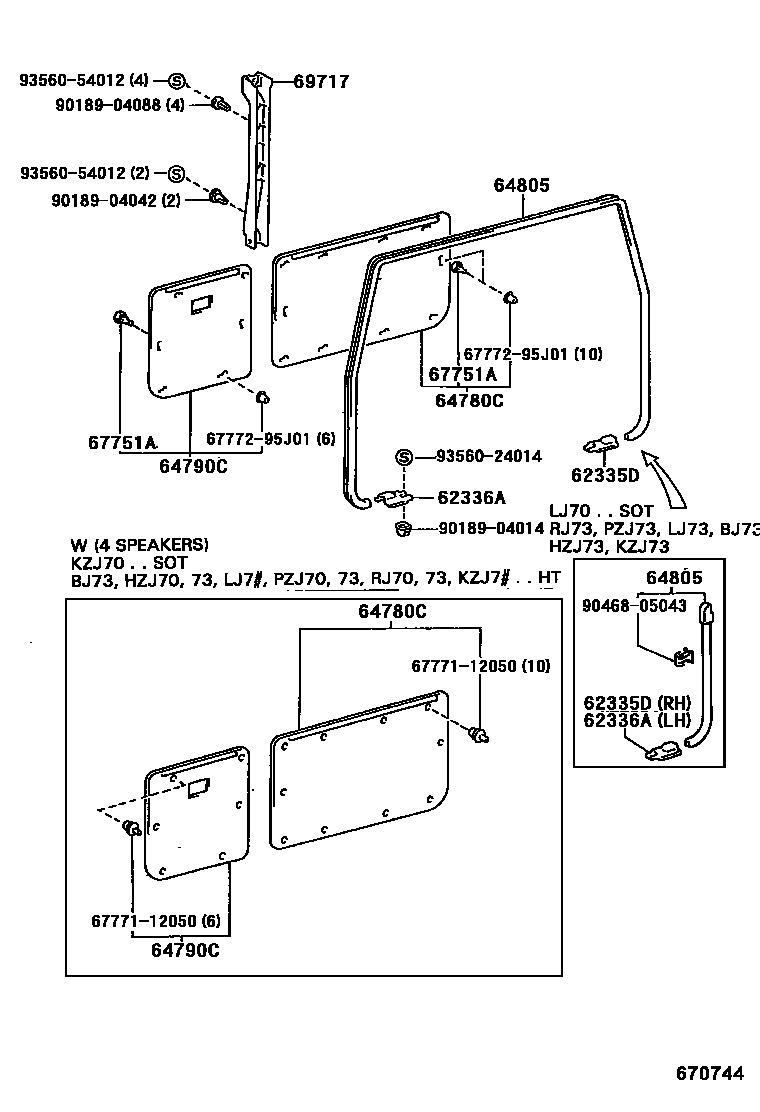

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62335DCOVER, REAR DOOR OPENING TRIM, RH

main62335-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT199001-199811

62336ACOVER, REAR DOOR OPENING TRIM, LH

main62336-90K00iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-199811

64780CPANEL ASSY, BACK DOOR TRIM, RH

main64780-60050-03iBJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#..HT199001-199908

LIGHT GRAY,TRIM1#

sub64780-60050

main64780-60050-06iBJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..HT199001-199501

LIGHT SABLE,TRIM4#

sub64780-60050

main64780-60050-E0iHZJ70,73,KZJ7#,RJ7#..HT199501-199908

W(*FFRS),LT.OAK,TRIM4#

sub64780-60050

main64780-60050-E0iHZJ71,74199908-200108

W(*FFRS),MD.OAK,TRIM4#

sub64780-60050

main64780-60050-S7iHZJ71,74199908-200108

W(*FFRS),SLATE GRAY,TRIM1#

sub64780-60050

main64780-60080-B0iKZJ70..VX;KZJ70..LHD..LX;KZJ73,LJ7#,RJ7#199305-199604

W(4 SPEAKER),LIGHT GRAY,TRIM1#

sub64780-60080

main64780-60080-B0iLJ70..VX;LJ73,RJ7#;LJ70..LHD..LX199108-199305

W(BENCH SEAT) & W/O(SUSPENSION SEAT),LIGHT GRAY,TRIM1#

sub64780-60080

main64780-60080-E0iKZJ70..VX;KZJ70..LHD..LX;KZJ73,LJ7#,RJ7#199305-199501

W(4 SPEAKER),LIGHT SABLE,TRIM4#

sub64780-60080

main64780-60080-E0iLJ70..VX;LJ73,RJ7#;LJ70..LHD..LX199108-199305

W(BENCH SEAT) & W/O(SUSPENSION SEAT),LIGHT SABLE,TRIM4#

sub64780-60080

main64780-60080-E1iKZJ70..VX;KZJ73,RJ7#;KZJ70..LHD..LX199501-199604

W(4 SPEAKER),LT.OAK,TRIM4#

sub64780-60080

main64780-90K01-06iRJ70199001-199501

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT SABLE,TRIM4#

sub64780-90K01

main64780-90K01-06iHZJ75..HT199001-199501

LIGHT SABLE,TRIM4#

sub64780-90K01

main64780-90K01-06iHZJ75..HT199001-199501

W/O REAR SEAT,LIGHT SABLE,TRIM4#

sub64780-90K01

main64780-90K01-13iRJ70..EFI199001-199908

W/O REAR SEAT,LIGHT GRAY,TRIM1#

sub64780-90K01

main64780-90K01-13iHZJ75,PZJ75..HT199001-199908

LIGHT GRAY,TRIM1#

sub64780-90K01

main64780-90K01-13iHZJ75,PZJ75..HT199001-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT GRAY,TRIM1#

sub64780-90K01

main64780-90K01-13iHZJ70199608-199702

VINYL SEAT SPEC(SWITZERLAND),LIGHT GRAY,TRIM1#

sub64780-90K01

main64780-90K01-B0iHZJ71,78199908-200108

SLATE GRAY,TRIM1#

sub64780-90K01

main64780-90K01-E0iHZJ75..HT199501-199908

W/O REAR SEAT,LT.OAK,TRIM4#

sub64780-90K01

main64780-90K01-E0iHZJ70199608-199702

VINYL SEAT SPEC(SWITZERLAND),LT.OAK,TRIM4#

sub64780-90K01

main64780-90K01-E0iHZJ75..HT199501-199908

LT.OAK,TRIM4#

sub64780-90K01

main64780-90K01-E0iRJ70199501-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LT.OAK,TRIM4#

sub64780-90K01

main64780-90K01-E1iHZJ71,78199908-200108

MD.OAK,TRIM4#

sub64780-90K01

main64780-90K02-06iHZJ73,KZJ73,LJ73,RJ73..LX199001-199501

W/O REAR SEAT,LIGHT SABLE,TRIM4#

sub64780-90K02

main64780-90K02-06iKZJ70..SOT199001-199501

LIGHT SABLE,TRIM4#

sub64780-90K02

main64780-90K02-06iHZJ73,LJ73,PZJ73199005-199305

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT SABLE,TRIM4#

sub64780-90K02

main64780-90K02-13iHZJ73,LJ73,PZJ73,RJ73199001-199908

W/O REAR SEAT,LIGHT GRAY,TRIM1#

sub64780-90K02

main64780-90K02-13iHZJ73,LJ73,PZJ73199005-199305

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT GRAY,TRIM1#

sub64780-90K02

main64780-90K02-13iKZJ70..SOT199001-199604

LIGHT GRAY,TRIM1#

sub64780-90K02

main64780-90K02-13iHZJ73199608-199702

VINYL SEAT SPEC(SWITZERLAND),LIGHT GRAY,TRIM1#

sub64780-90K02

main64780-90K02-B0iHZJ74199908-200108

SLATE GRAY,TRIM1#

sub64780-90K02

main64780-90K02-E0iKZJ70..SOT199501-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LT.OAK,TRIM4#

sub64780-90K02

main64780-90K02-E0iKZJ70..SOT199501-199604

LT.OAK,TRIM4#

sub64780-90K02

main64780-90K02-E0iHZJ73,KZJ73..LX199501-199908

W/O REAR SEAT,LT.OAK,TRIM4#

sub64780-90K02

main64780-90K02-E0iHZJ73199608-199702

VINYL SEAT SPEC(SWITZERLAND),LT.OAK,TRIM4#

sub64780-90K02

main64780-90K02-E1iHZJ74199908-200108

MD.OAK,TRIM4#

sub64780-90K02

64790CPANEL ASSY, BACK DOOR TRIM, LH

main64790-60020-03iBJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..HT199001-199908

LIGHT GRAY,TRIM1#

sub64790-60020

main64790-60020-06iBJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..HT199001-199501

LIGHT SABLE,TRIM4#

sub64790-60020

main64790-60020-E0iHZJ71,74199908-200108

W(*FFRS),MD.OAK,TRIM4#

sub64790-60020

main64790-60020-E0iHZJ70,73,KZJ7#,RJ7#..HT199501-199908

W(*FFRS),LT.OAK,TRIM4#

sub64790-60020

main64790-60020-S7iHZJ71,74199908-200108

W(*FFRS),SLATE GRAY,TRIM1#

sub64790-60020

main64790-60050-B0iLJ70..VX;LJ73,RJ7#;LJ70..LHD..LX199108-199305

W(BENCH SEAT) & W/O(SUSPENSION SEAT),LIGHT GRAY,TRIM1#

sub64790-60050

main64790-60050-B0iKZJ70..VX;KZJ70..LHD..LX;KZJ73,LJ7#,RJ7#199305-199604

W(4 SPEAKER),LIGHT GRAY,TRIM1#

sub64790-60050

main64790-60050-E0iLJ70..VX;LJ73,RJ7#;LJ70..LHD..LX199108-199305

W(BENCH SEAT) & W/O(SUSPENSION SEAT),LIGHT SABLE,TRIM4#

sub64790-60050

main64790-60050-E0iKZJ70..VX;KZJ70..LHD..LX;KZJ73,LJ7#,RJ7#199305-199501

W(4 SPEAKER),LIGHT SABLE,TRIM4#

sub64790-60050

main64790-60050-E1iKZJ70..VX;KZJ73,RJ7#;KZJ70..LHD..LX199501-199604

W(4 SPEAKER),LT.OAK,TRIM4#

sub64790-60050

main64790-90K08-06iRJ70199001-199501

W/O REAR SEAT,LIGHT SABLE,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K08-06iHZJ75,PZJ75..HT199001-199501

LIGHT SABLE,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K08-06iHZJ75,PZJ75..HT199001-199501

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT SABLE,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K08-13iRJ70..EFI199001-199908

LIGHT GRAY,TRIM1#

sub64790-90K09

sub64790-90K08

main64790-90K08-13iRJ70..EFI199001-199908

W/O REAR SEAT,LIGHT GRAY,TRIM1#

sub64790-90K09

sub64790-90K08

main64790-90K08-13iLJ70..LHD..VX;HZJ70,LJ70,PZJ70,RJ70..HT..(LX,STD)..(CBR,DSL)199001-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT GRAY,TRIM1#

sub64790-90K09

sub64790-90K08

main64790-90K08-13iHZJ70199608-199702

VINYL SEAT SPEC(SWITZERLAND),LIGHT GRAY,TRIM1#

sub64790-90K09

sub64790-90K08

main64790-90K08-B0iHZJ71,78199908-200108

SLATE GRAY,TRIM1#

sub64790-90K09

sub64790-90K08

main64790-90K08-E0iHZJ70,KZJ70..HT..(LX,STD)199501-199908

W/O REAR SEAT,LT.OAK,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K08-E0iRJ70199501-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LT.OAK,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K08-E0iHZJ75..HT199501-199908

LT.OAK,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K08-E0iHZJ70199608-199702

VINYL SEAT SPEC(SWITZERLAND),LT.OAK,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K08-E1iHZJ71,78199908-200108

MD.OAK,TRIM4#

sub64790-90K09

sub64790-90K08

main64790-90K09-06iHZJ73,LJ73,PZJ73199001-199501

W/O REAR SEAT,LIGHT SABLE,TRIM4#

sub64790-90K09

main64790-90K09-06iHZJ73,LJ73,PZJ73199005-199305

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT SABLE,TRIM4#

sub64790-90K09

main64790-90K09-06iLJ70..SOT199001-199501

LIGHT SABLE,TRIM4#

sub64790-90K09

main64790-90K09-13iRJ73199001-199908

W/O REAR SEAT,LIGHT GRAY,TRIM1#

sub64790-90K09

main64790-90K09-13iRJ73199005-199305

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LIGHT GRAY,TRIM1#

sub64790-90K09

main64790-90K09-13iHZJ73199608-199702

VINYL SEAT SPEC(SWITZERLAND),LIGHT GRAY,TRIM1#

sub64790-90K09

main64790-90K09-13iKZJ70..SOT199001-199604

LIGHT GRAY,TRIM1#

sub64790-90K09

main64790-90K09-B0iHZJ74199908-200108

SLATE GRAY,TRIM1#

sub64790-90K09

main64790-90K09-E0iRJ73199501-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT),LT.OAK,TRIM4#

sub64790-90K09

main64790-90K09-E0iRJ73199501-199604

LT.OAK,TRIM4#

sub64790-90K09

main64790-90K09-E0iHZJ73199608-199702

VINYL SEAT SPEC(SWITZERLAND),LT.OAK,TRIM4#

sub64790-90K09

main64790-90K09-E0iHZJ73,KZJ73..LX199501-199908

W/O REAR SEAT,LT.OAK,TRIM4#

sub64790-90K09

main64790-90K09-E1iHZJ74199908-200108

MD.OAK,TRIM4#

sub64790-90K09

64805TRIM SUB-ASSY, BACK DOOR OPENING

main62333-60080-B0iHZJ70,75..HT199811-199908

LT.GRAY,TRIM1#

sub62333-60080

main62333-60080-B1iHZJ78199908-200108

LT.GRAY,TRIM1#,4#

sub62333-60080

main62333-60080-E0iHZJ71199908-200108

LT.OAK,TRIM1#,4#

sub62333-60080

main62333-60080-E0iHZJ70,75..HT199811-199908

LT.OAK,TRIM4#

sub62333-60080

main62333-90K01-13iHZJ70,75,KZJ70,77,LJ70,RJ70..HT199001-199811

LIGHT GRAY,TRIM1#

sub62333-90K01

main62333-90K01-16iHZJ70,75,LJ70,77,PZJ70,75,RJ70..HT199001-199501

LIGHT SABLE,TRIM4#

sub62333-90K01

main62333-90K01-E0iHZJ70,75,KZJ70,77,RJ70..HT199501-199811

LT.OAK,TRIM4#

sub62333-90K01

main64806-90K00-13iLJ70..SOT;BJ73,HZJ73,LJ73,PZJ73,RJ73199001-199908

LIGHT GRAY,TRIM1#

sub62032-90K00

sub64806-90K00

main64806-90K00-16iKZJ70..SOT;BJ73,HZJ73,KZJ73,LJ73,RJ73199001-199501

LIGHT SABLE,TRIM4#

sub62032-90K00

sub64806-90K00

main64806-90K00-B1iHZJ74199908-200108

LT.GRAY,TRIM1#,4#

sub62032-90K00

sub64806-90K00

main64806-90K00-E0iKZJ70..SOT;HZJ73,KZJ73,RJ73199501-199908

LT.OAK,TRIM4#

sub62032-90K00

sub64806-90K00

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07054-26iLJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT199001-199012

LIGHT SABLE,TRIM4#

sub90467-07054

main90467-07054-33iLJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT199001-199012

LIGHT GRAY,TRIM1#

sub90467-07054

main90467-07125-03iLJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT199012-199908

LIGHT GRAY,TRIM1#

sub90467-07125

main90467-07125-06iLJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT199012-199501

LIGHT SABLE,TRIM4#

sub90467-07125

main90467-07125-B0iHZJ71,74,78199908-200108

SLATE GRAY,TRIM1#

sub90467-07125

main90467-07125-E0iHZJ7#,KZJ70,73,RJ7#..(HT,SOT)..(LX,STD)199501-200108

LT.OAK,TRIM4#

sub90467-07125

69717COVER, BACK DOOR LOCK CONTROL LINK

main69717-90K00-01iBJ73,HZJ70,73,LJ7#,PZJ7#,RJ7#..HT199001-199908

BLACK,TRIM1#,4#

sub69717-90K00

main69717-90K00-20iHZJ71,74199908-200108

BLACK,TRIM1#,4#

sub69717-90K00

main69717-90K01-01iHZJ75..HT199305-199908

BLACK,TRIM1#,4#

sub69717-90K01

main69717-90K01-20iHZJ78199908-200108

BLACK,TRIM1#,4#

sub69717-90K01

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9018904014

main90189-04014

9018904042

main90189-04042

9018904088

main90189-04088

9046805043

main90468-05043

9356024014

main93560-24014

9356054012

main93560-54012

15 parts on this diagram · 3 diagrams in section
