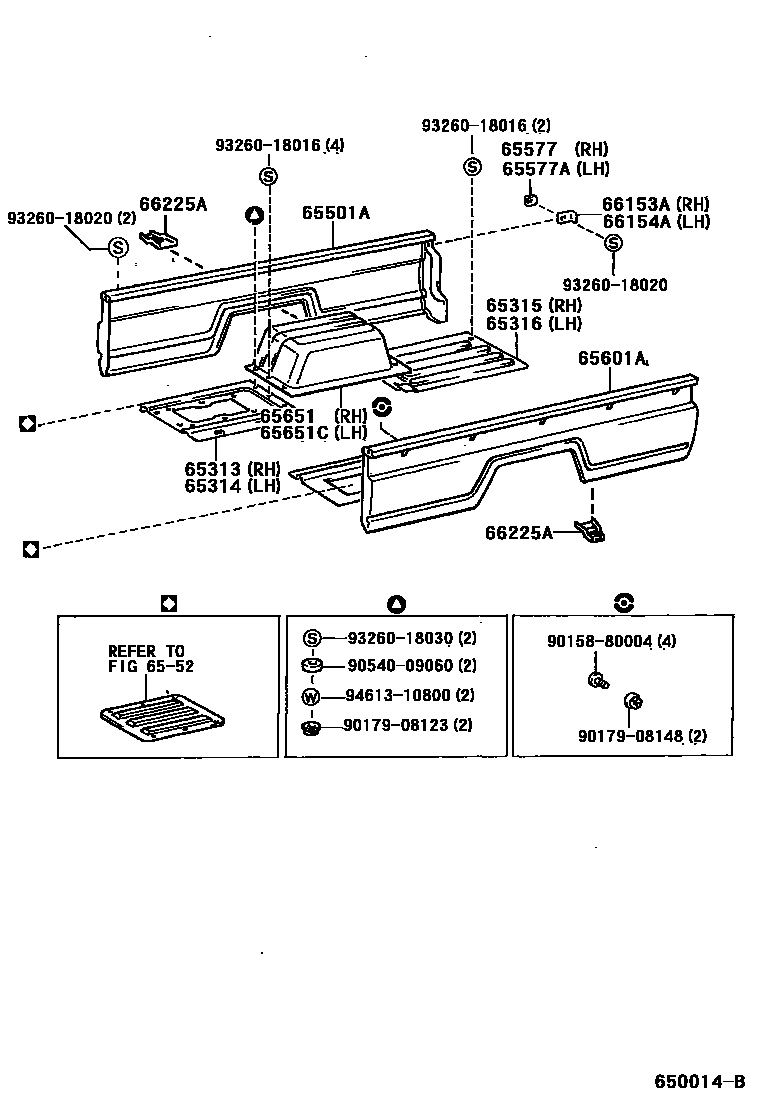

REAR BODY SIDE PANEL

65313PANEL, FLOOR FRONT CORNER, RH

main65313-60020iHZJ79199908-200108

main65313-90K00iHZJ75,PZJ75..PIC199001-199908

65314PANEL, FLOOR FRONT CORNER, LH

main65314-60010iHZJ79199908-200108

main65314-90K00iHZJ75,PZJ75..PIC199001-199908

65315PANEL, FLOOR REAR CORNER, RH

main65315-60010iHZJ75,79,PZJ75..PIC199009-200108

main65315-95407iPZJ75..PIC199001-199009

sub65315-37010

65316PANEL, FLOOR REAR CORNER, LH

main65316-60010iHZJ75,79,PZJ75..PIC199009-200108

main65316-95407iPZJ75..PIC199001-199009

sub65316-37010

65501APANEL SUB-ASSY, REAR BODY SIDE, RH

main65501-60010iHZJ79199908-200108

main65501-60050iHZJ79199908-200108

W(TARPORIN)

main65501-90K00iHZJ75..PIC199001-199908

main65501-90K04iHZJ75,PZJ75..PIC199001-199908

W(TARPORIN)

6552

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iHZJ75..PIC199001-200108

65577ARETAINER, TAIL GATE FEMALE

main65577-95012iHZJ75,79,PZJ75..PIC199001-200108

65601APANEL SUB-ASSY, REAR BODY SIDE, LH

main65601-60010iHZJ79199908-200108

main65601-60030iHZJ79199908-200108

W(TARPORIN)

main65601-90K00iHZJ75,PZJ75..PIC199001-199908

main65601-90K02iHZJ75..PIC199001-199908

W(TARPORIN)

65651PANEL, WHEEL HOUSE

main65651-60010iHZJ75..PIC199009-200108

main65651-95014iPZJ75..PIC199001-199009

sub65651-37010

65651CPANEL, WHEEL HOUSE

main65651-60010iHZJ75,79,PZJ75..PIC199009-200108

main65651-95014iPZJ75..PIC199001-199009

sub65651-37010

66153ALATCH, TAIL GATE FEMALE, RH

main66153-60010iHZJ79199908-200108

main66153-95012iHZJ75..PIC199001-199908

66154ALATCH, TAIL GATE FEMALE, LH

main66153-60010iHZJ79199908-200108

main66153-95012iHZJ75,PZJ75..PIC199001-199908

66225ASUPPORT, BAFFLE RUBBER

main66243-90K00iHZJ79199908-200108

9015880004

main90158-80004

9017908123

main90179-08123

9017908148

main90179-08148

9054009060

main90540-09060

9326018016

main93260-18016

9326018020

main93260-18020

9326018030

main93260-18030

9461310800

main94613-10800

22 parts on this diagram · 1 diagram in section
