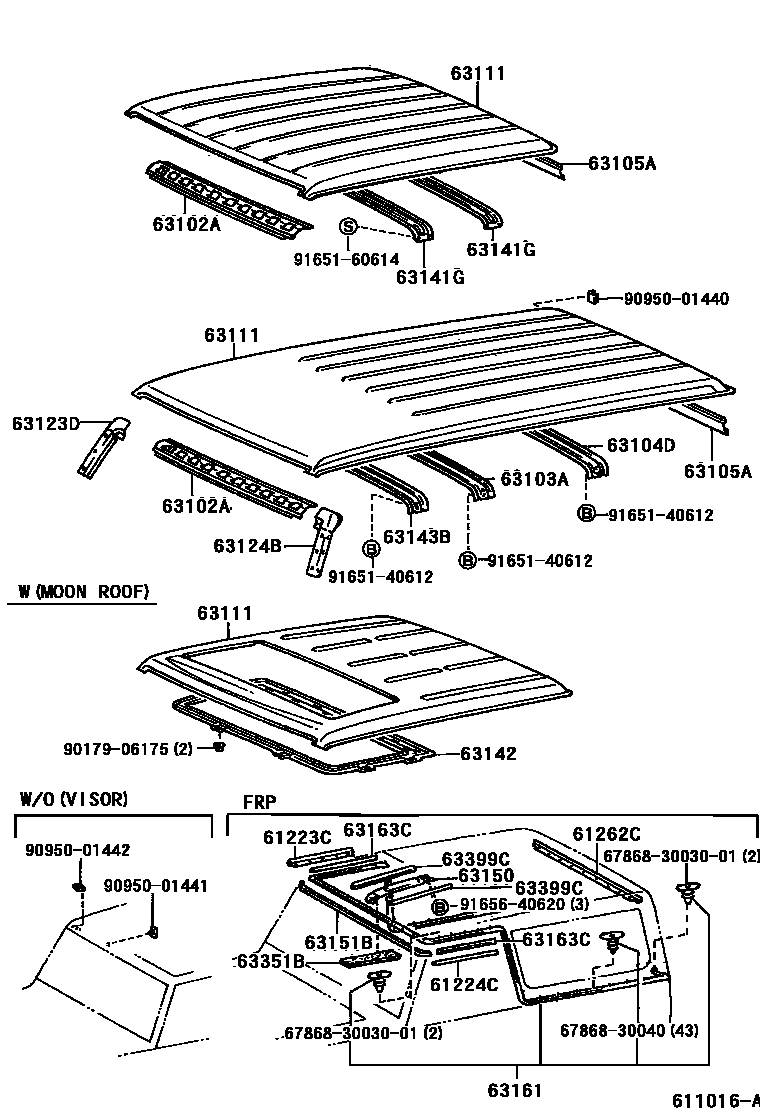

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

61223CCHANNEL, ROOF DRIP SIDE, RH

main61223-60010iHZJ79199908-200108

main61223-90K00iHZJ75,PZJ75..PIC199001-199908

main61223-90K01iBJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

61224CCHANNEL, ROOF DRIP SIDE, LH

main61224-60010iHZJ79199908-200108

main61224-90K00iHZJ75,PZJ75..PIC199001-199908

main61224-90K01iBJ73,HZJ73,74,LJ73,PZJ73,RJ73199001-200108

61262CCHANNEL, ROOF DRIP, REAR

main61262-60050iHZJ79199908-200108

main61262-90K01iHZJ75,PZJ75..PIC199001-199908

main61262-90K02iBJ73,HZJ73,74,LJ73,PZJ73,RJ73199001-200108

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-90K02iHZJ79;HZJ70,71,75,78,LJ70,77,PZJ70,75,RJ70..HT199001-200108

sub63102-60160

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-90K00iHZJ75,78,PZJ75..HT199001-200108

sub63103-60040

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-90K00iHZJ75,78,PZJ75..HT199001-200108

sub63104-60050

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60110iLJ77199004-199604

main63105-60200iHZJ71199908-200108

main63105-60210iHZJ78199908-200108

sub63105-60211

sub90333-20001

main63105-90K05iHZJ75,PZJ75..HT199001-199908

main63105-90K08iHZJ70,KZJ70,LJ70,RJ70..HT199001-199908

63111PANEL, ROOF

main63111-60160iLJ77199004-199604

main63111-60290iHZJ78199501-200108

main63111-60470iHZJ79199908-200108

main63111-90K00iHZJ71199001-200108

main63111-90K01iHZJ75,PZJ75..HT199001-199501

sub63111-60290

main63111-90K02iHZJ75..PIC199001-199908

main63111-90K03iHZJ70,KZJ70,LJ70,RJ70..LX,VX199001-200108

W(MOON ROOF)

63123DREINFORCEMENT, ROOF PANEL, FRONT RH

main63123-60020iHZJ75..HT199501-200108

sub63123-60060

63124BREINFORCEMENT, ROOF PANEL, FRONT LH

main63124-60020iHZJ78199501-200108

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60020iKZJ77199004-199604

main63141-60070iHZJ79199908-200108

main63141-90K00iHZJ71199001-200108

sub63141-60120

main63141-90K02iHZJ75..PIC199001-199908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30010iHZJ71199001-200108

main63142-90K00iHZJ75..PIC199001-199908

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-90K01iHZJ75,78,PZJ75..HT199001-200108

63150REINFORCEMENT ASSY, ROOF PANEL

main63150-90K00iBJ73,PZJ73199001-199402

63151BSEAL, ROOF PANEL REINFORCEMENT

main63151-90K00iHZJ75..PIC199001-199908

main63151-90K02iHZJ74199001-200108

63161WEATHERSTRIP, ROOF

main63161-90K00iHZJ75,PZJ75..PIC199001-199908

main63161-90K01iHZJ74199001-200108

63163CSEAL, ROOF PANEL REINFORCEMENT, SIDE

main63163-90K00iHZJ75,PZJ75..PIC199001-199908

main63163-90K01iBJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

63351BPAD, ROOF HEADLINING

main63351-90K00iBJ73,PZJ73199001-199402

63399CCLIP, ROOF HEADLINING

main63399-90K00iBJ73,PZJ73199001-199402

678683003001CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-3003001

6786830040CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30040

9017906175

main90179-06175

9095001440

main90950-01440

9095001441

main90950-01441

9095001442

main90950-01442

9165140612

main91651-40612

9165160614

main91651-60614

9165640620

main91656-40620

28 parts on this diagram · 4 diagrams in section
