EPC Data

SIDE WINDOW

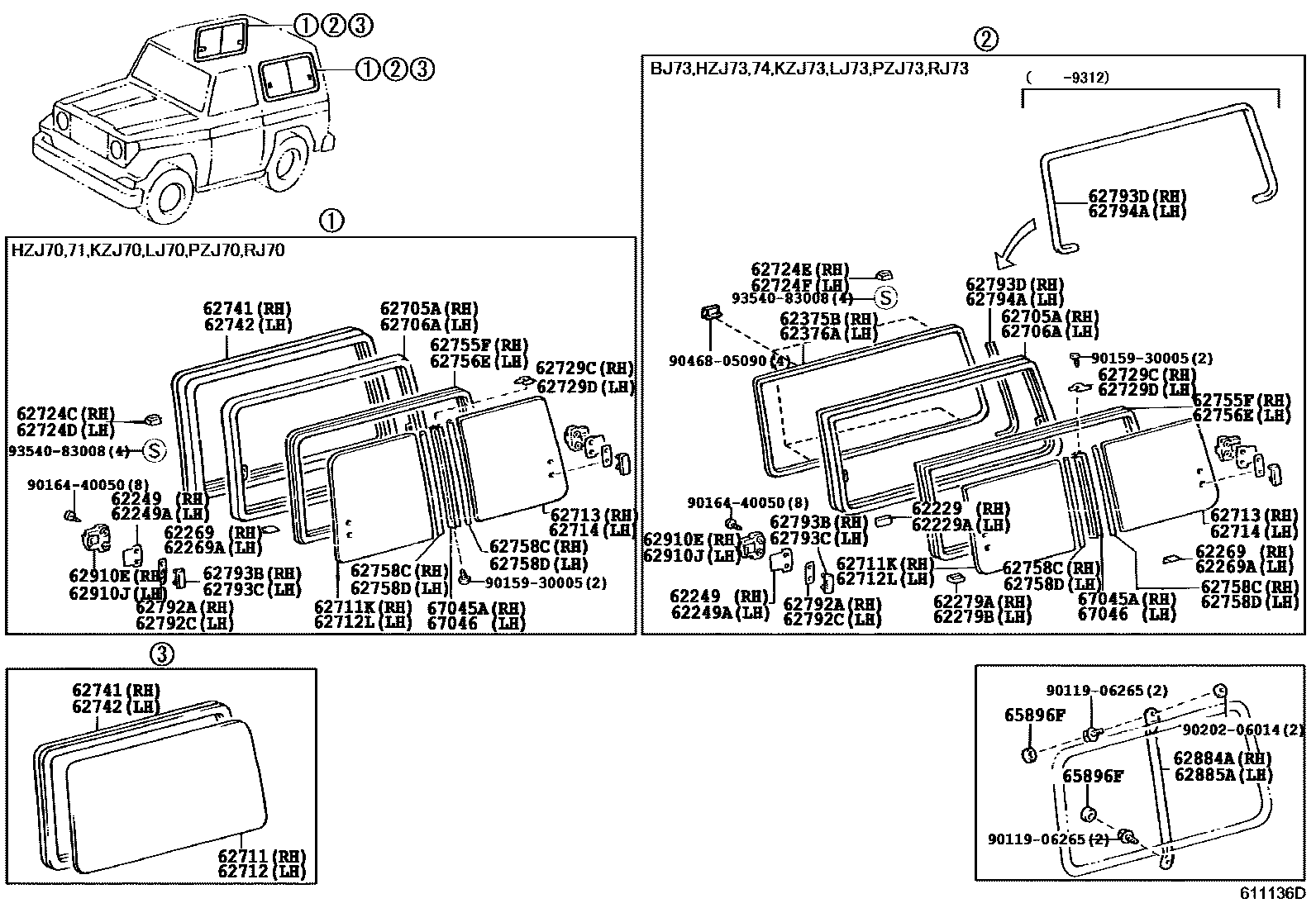

Parts diagram
62229PACKING, SIDE WINDOW
main62229-95J00i199001-200108
62229APACKING, SIDE WINDOW, NO.2
main62229-95J00i199001-200108
62249PLATE, SIDE WINDOW, RH
main62249-95700i199001-200108
62249APLATE, SIDE WINDOW, LH
main62249-95700i199001-200108
62269FILM, SIDE WINDOW FRAME, RH
main62269-90K01i199001-200108
62269AFILM, SIDE WINDOW FRAME, LH
main62269-90K01i199001-200108
62279ASPACER, SIDE WINDOW FRAME
main62279-90K00i199001-200108
62279BSPACER, SIDE WINDOW FRAME, LH
main62279-90K00i199001-200108
62375BCLIP, SIDE WINDOW, NO.1
main62375-90K00-13i199001-199908
LIGHT GRAY,TRIM1#
sub62375-90K00
main62375-90K00-16i199001-199908
LIGHT SABLE,TRIM4#
sub62375-90K00
main62375-90K00-B0i199908-200108
LT.GRAY,TRIM1#,4#
sub62375-90K00
main62375-90K00-E0i199501-199908
LT.OAK,TRIM4#
sub62375-90K00
main62375-90K01i199001-199908
main62375-90K01-B0i199908-200108
LT.GRAY,TRIM1#,4#
sub62375-90K01
62376ACLIP, SIDE WINDOW, NO.2
main62376-90K00i199001-199908
main62376-90K00-B0i199908-200108
LT.GRAY,TRIM1#,4#
sub62376-90K00
62705AFRAME SUB-ASSY, QUARTER WINDOW, RH
main62705-60030i199001-199004
*FRG
sub62705-60031
main62705-60030i199004-199104
sub62705-60031
main62705-60031i199104-199910
sub62705-60032
main62705-60032i199910-200108
main62705-60050i199910-200108
main62705-60060i199910-200108
main62705-90K00i199001-199004
sub62705-60031
main62705-90K01i199001-199910
sub62705-60060
main62705-90K02i199001-199910
sub62705-60050
62706AFRAME SUB-ASSY, QUARTER WINDOW, LH
main62706-60020i199001-199305
sub62706-60021
main62706-60021i199305-199910
sub62706-60022
main62706-60022i199910-200108
main62706-60050i199910-200108
main62706-60060i199910-200108
main62706-90K01i199001-199910
sub62706-60060
main62706-90K02i199001-199910
sub62706-60050
62711GLASS, QUARTER WINDOW, RH
main62710-60120i199004-199305
*TT,T=4.0,BLUE
main62710-60121i199305-199604
*TT,T=4.0,BLUE
main62710-60130i199004-199305
*TEM,T=4.0
main62710-60131i199305-199604
*TEM,T=4.0
sub62710-60121
main62711-60370i199608-200108
*TEM,T=4.0,GREEN
main62711-60420i199608-200108
*TEM,T=3.5,GREEN
main62711-90K00i199305-199501
*TEM,T=3.5,ITALY SPEC OR W(FIXED QUARTER WINDOW)
sub62711-60370
main62711-90K00i199001-199608
*TEM,T=3.5,W(FIXED QUARTER WINDOW)
sub62711-60370
main62711-90K01i199001-199608
*TT,T=3.5,W(FIXED QUARTER WINDOW)
sub62711-60370
main62711-90K01i199305-199501
*TT,T=3.5,ITALY SPEC & W(FIXED QUARTER WINDOW) OR W(FIXED QUARTER WINDOW)
sub62711-60370
main62711-90K01i199305-199604
*TT,T=3.5,(*FRG OR ITALY SPEC) & W(FIXED QUARTER WINDOW) OR W(FIXED QUARTER WINDOW)
sub62711-60370
main62711-90K07i199001-199608
*TEM,T=3.5
main62711-90K15i199001-199501
PANEL,T=1.6,NORWAY SPEC
main62711-90K15i199011-199604
PANEL,T=1.6,IRELAND SPEC
62711KGLASS, QUARTER WINDOW, FRONT RH
main62711-60270i199708-199908
*TEM,T=4.0,GREEN,W(SLID QUARTER WINDOW)
main62711-60270i199908-200108
*TEM,T=4.0,GREEN,W(QUARTER WINDOW PROTECTOR)
main62711-60350i199908-200108
*TEM,T=4.0,GREEN,W(QUARTER WINDOW PROTECTOR)
main62711-60350i199708-199908
*TEM,T=4.0,GREEN,W(SLID QUARTER WINDOW)
main62711-60380i199608-200108
*TEM,T=4.0,GREEN
main62711-60390i199708-199908
*TEM,T=4.0,GREEN,W(SLID QUARTER WINDOW)
main62711-60390i199908-200108
*TEM,T=4.0,GREEN,W(QUARTER WINDOW PROTECTOR)
main62711-60400i199608-200108
*TEM,T=4.0,GREEN
main62711-60430i199608-200108
*TEM,T=4.0,GREEN
main62711-90K02i199305-199604
*TEM,T=4.0,ITALY SPEC & W/O(REAR SEAT)
sub62711-60380
main62711-90K02i199001-199608
*TEM,T=4.0
sub62711-60380
main62711-90K03i199001-199608
*TT,T=4.0
sub62711-60380
main62711-90K04i199305-199604
*TEM,T=4.0,*FRG OR ITALY SPEC
main62711-90K04i199001-199305
*TEM,T=4.0,*FRG
main62711-90K05i199001-199608
*TT,T=4.0
sub62711-60400
main62711-90K09i199001-199608
*TEM,T=4.0
sub62711-60430
main62711-90K11i199001-199305
*TT,T=4.0,*FRG
main62711-90K11i199001-199604
*TT,T=4.0
main62711-90K11i199305-199501
*TT,T=4.0,ITALY SPEC
main62711-90K11i199305-199604
*TT,T=4.0,*FRG OR ITALY SPEC
main62711-90K18i199001-199604
*TT,T=4.0,*FRG
main62711-90K18i199001-199604
*TT,T=4.0
62712GLASS, QUARTER WINDOW, LH
main62712-60300i199608-200108
*TEM,T=3.5,GREEN
main62712-60350i199608-200108
*TEM,T=3.5,GREEN
main62712-90K00i199001-199608
*TEM,T=3.5,W(FIXED QUARTER WINDOW)
sub62712-60300
main62712-90K01i199001-199608
*TT,T=3.5,W(FIXED QUARTER WINDOW)
sub62712-60300
main62712-90K01i199001-199305
*TT,T=3.5,W(FIXED QUARTER WINDOW) OR *FRG & W(FIXED QUARTER WINDOW)
sub62712-60300
main62712-90K01i199305-199501
*TT,T=3.5,((*FRG OR ITALY SPEC) & W(FIXED QUARTER WINDOW)) OR W(FIXED QUARTER WINDOW)
sub62712-60300
main62712-90K01i199308-199501
*TT,T=3.5,ITALY SPEC & W(FIXED QUARTER WINDOW) OR W(FIXED QUARTER WINDOW)
sub62712-60300
main62712-90K01i199401-199604
*TT,T=3.5
sub62712-60300
main62712-90K07i199001-199608
*TEM,T=3.5
sub62712-60350
main62712-90K18i199001-199501
PANEL,T=1.6,NORWAY SPEC
main62712-90K18i199011-199604
PANEL,T=1.6,IRELAND SPEC
main62720-60080i199004-199305
*TT,T=4.0,BLUE
main62720-60081i199305-199604
*TT,T=4.0,BLUE
main62720-60090i199004-199305
*TEM,T=4.0
sub62720-60080
main62720-60091i199305-199604
*TEM,T=4.0
sub62720-60081
62712LGLASS, QUARTER WINDOW, FRONT LH
main62712-60210i199908-200108
*TEM,T=4.0,GREEN,W(QUARTER WINDOW PROTECTOR)
main62712-60210i199708-199908
*TEM,T=4.0,GREEN,W(SLID QUARTER WINDOW)
main62712-60290i199708-199908
*TEM,T=4.0,GREEN,W(SLID QUARTER WINDOW)
main62712-60290i199908-200108
*TEM,T=4.0,GREEN,W(QUARTER WINDOW PROTECTOR)
main62712-60310i199608-200108
*TEM,T=4.0,GREEN
main62712-60320i199708-199908
*TEM,T=4.0,GREEN,W(SLID QUARTER WINDOW)
main62712-60320i199908-200108
*TEM,T=4.0,GREEN,W(QUARTER WINDOW PROTECTOR)
main62712-60330i199608-200108
*TEM,T=4.0,GREEN
main62712-60360i199608-200108
*TEM,T=4.0,GREEN
main62712-90K02i199001-199608
*TEM,T=4.0
sub62712-60310
main62712-90K02i199305-199604
*TEM,T=4.0,ITALY SPEC & W/O(REAR SEAT)
sub62712-60310
main62712-90K03i199001-199608
*TT,T=4.0
sub62712-60310
main62712-90K04i199001-199308
*TEM,T=4.0,*FRG
main62712-90K04i199305-199604
*TEM,T=4.0,*FRG OR ITALY SPEC
main62712-90K05i199001-199608
*TT,T=4.0
sub62712-60330
main62712-90K09i199001-199608
*TEM,T=4.0
sub62712-60360
main62712-90K11i199305-199604
*TT,T=4.0,*FRG OR ITALY SPEC
main62712-90K11i199001-199604
*TT,T=4.0
main62712-90K11i199001-199305
*TT,T=4.0,*FRG
main62712-90K11i199305-199501
*TT,T=4.0,,ITALY SPEC
main62712-90K22i199001-199604
*TT,T=4.0
main62712-90K22i199001-199604
*TT,T=4.0,*FRG
62713GLASS, QUARTER WINDOW, REAR RH
main62713-60130i199608-200108
*TEM,T=4.0,GREEN
main62713-60150i199608-200108
*TEM,T=4.0,GREEN
main62713-60170i199608-200108
*TEM,T=4.0,GREEN
main62713-90K00i199305-199604
*TEM,T=4.0,ITALY SPEC & W/O(REAR SEAT)
sub62713-60130
main62713-90K00i199001-199608
*TEM,T=4.0
sub62713-60130
main62713-90K01i199001-199608
*TT,T=4.0
sub62713-60130
main62713-90K02i199305-199604
*TEM,T=4.0,*FRG OR ITALY SPEC
main62713-90K02i199001-199305
*TEM,T=4.0,*FRG
main62713-90K03i199001-199608
*TT,T=4.0
sub62713-60150
main62713-90K05i199001-199608
*TEM,T=4.0
sub62713-60170
main62713-90K07i199001-199604
*TT,T=4.0
main62713-90K07i199305-199604
*TT,T=4.0,*FRG OR ITALY SPEC
main62713-90K07i199001-199305
*TT,T=4.0,*FRG
main62713-90K07i199305-199501
*TT,T=4.0,ITALY SPEC
main62713-90K10i199001-199604
*TT,T=4.0,*FRG
main62713-90K10i199001-199604
*TT,T=4.0
62714GLASS, QUARTER WINDOW, REAR LH
main62714-60120i199608-200108
*TEM,T=4.0,GREEN
main62714-60140i199608-200108
*TEM,T=4.0,GREEN
main62714-60160i199608-200108
*TEM,T=4.0,GREEN
main62714-90K00i199305-199604
*TEM,T=4.0,ITALY SPEC & W/O(REAR SEAT)
sub62714-60120
main62714-90K00i199001-199608
*TEM,T=4.0
sub62714-60120
main62714-90K01i199001-199608
*TT,T=4.0
sub62714-60120
main62714-90K02i199305-199604
*TEM,T=4.0,*FRG OR ITALY SPEC
main62714-90K02i199001-199308
*TEM,T=4.0,*FRG
main62714-90K03i199001-199608
*TT,T=4.0
sub62714-60140
main62714-90K05i199001-199608
*TEM,T=4.0
sub62714-60160
main62714-90K07i199001-199501
*TT,T=4.0,*FRG
main62714-90K07i199001-199604
*TT,T=4.0
main62714-90K07i199305-199604
*TT,T=4.0,*FRG OR ITALY SPEC
main62714-90K14i199001-199604
*TT,T=4.0
main62714-90K14i199001-199604
*TT,T=4.0,*FRG
62724CSTOP, SIDE FRONT WINDOW GLASS, RH
main62724-95J05i199910-200108
62724DSTOP, SIDE FRONT WINDOW GLASS, LH
main62724-95J05i199910-200108
62724ESTOP, SIDE REAR WINDOW GLASS, RH
main62724-95J05i199910-200108
62724FSTOP, SIDE REAR WINDOW GLASS, LH
main62724-95J05i199910-200108
62729CPAD, REAR WINDOW CENTER SASH, RH
main62729-90K00i199001-200108
main62729-90K01i199001-200108
62729DPAD, REAR WINDOW CENTER SASH, LH
main62729-90K00i199001-200108
main62729-90K01i199001-200108
62741WEATHERSTRIP, QUARTER WINDOW, RH
main62741-60060i199004-199604
main62741-60100i199910-200108
W(SLIDE WINDOW)
main62741-90K00i199001-199908
W(FIXED QUARTER WINDOW)
main62741-90K00i199001-199501
NORWAY SPEC OR W(FIXED QUARTER WINDOW)
main62741-90K00i199011-199604
IRELAND SPEC OR W(FIXED QUARTER WINDOW)
main62741-90K00i199305-199501
W(FIXED QUARTER WINDOW) OR ITALY SPEC
main62741-90K00i199908-200108
main62741-90K01i199001-199910
W(SLIDE WINDOW)
sub62741-60100
main62741-90K01i199305-199604
ITALY SPEC
sub62741-60100
main62741-90K03i199001-200108
62742WEATHERSTRIP, QUARTER WINDOW, LH
main62741-60060i199004-199604
main62741-90K03i199001-200108
main62742-60090i199910-200108
W(SLIDE WINDOW)
main62742-90K00i199305-199501
ITALY SPEC & W(FIXED QUARTER WINDOW) OR W(FIXED QUARTER WINDOW)
main62742-90K00i199001-199908
W(FIXED QUARTER WINDOW)
main62742-90K00i199001-199501
NORWAY SPEC OR W(FIXED QUARTER WINDOW)
main62742-90K00i199305-199501
NORWAY SPEC OR W(FIXED QUARTER WINDOW) OR ITALY SPEC & W(FIXED QUARTER WINDOW)
main62742-90K00i199011-199604
IRELAND SPEC OR W(FIXED QUARTER WINDOW)
main62742-90K00i199908-200108
main62742-90K01i199305-199604
ITALY SPEC
sub62742-60090
main62742-90K01i199001-199908
sub62742-60090
main62742-90K01i199908-199910
W(SLIDE WINDOW)
sub62742-60090
62755FRUN, QUARTER WINDOW, RH
main62755-60030i199910-200108
main62755-60040i199910-200108
main62755-60050i199910-200108
main62755-90K00i199001-199910
sub62755-60050
main62755-90K01i199001-199910
sub62755-60040
main62755-90K02i199001-199910
sub62755-60030
62756ERUN, QUARTER WINDOW, LH
main62756-60030i199910-200108
main62756-60040i199910-200108
main62756-60050i199910-200108
main62756-90K00i199001-199910
sub62756-60050
main62756-90K01i199001-199910
sub62756-60040
main62756-90K02i199001-199910
sub62756-60030
62758CPROTECTOR, QUARTER WINDOW GLASS, RH
main62758-90K00i199001-199305
*FRG
main62758-90K00i199001-200108
main62758-90K00i199305-199501
ITALY SPEC
main62758-90K00i199305-199604
FRONT
main62758-90K00i199305-199604
*FRG,FRONT
main62758-90K00i199305-199604
*FRG OR ITALY SPEC
62758DPROTECTOR, QUARTER WINDOW GLASS, LH
main62758-90K00i199001-199305
*FRG
main62758-90K00i199001-200108
main62758-90K00i199305-199604
*FRG,FRONT
main62758-90K00i199305-199604
*FRG OR ITALY SPEC
main62758-90K00i199308-199501
ITALY SPEC
main62758-90K00i199305-199604
FRONT
62792APACKING, SIDE WINDOW LOCK, RH
main62792-95A00i199001-200108
62792CPACKING, SIDE WINDOW LOCK, LH
main62792-95A00i199001-200108
62793BRETAINER, SIDE WINDOW LOCK, RH
main62793-95704i199001-200108
main62793-95J00i199305-199708
62793CRETAINER, SIDE WINDOW LOCK, LH
main62793-95704i199001-200108
main62793-95J00i199305-199708
62793DWEATHERSTRIP, QUARTER WINDOW, OUTER RH
main62793-60010i199312-200108
main62793-90K00i199001-199312
62794AWEATHERSTRIP, QUARTER WINDOW, OUTER LH
main62793-60010i199312-200108
main62794-90K00i199001-199312
62884AGUARD, QUARTER WINDOW, RH
main62884-90K01i199001-199908
62885AGUARD, QUARTER WINDOW, LH
main62884-90K01i199001-199908
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
main62910-60020i199004-199604
62910ELOCK ASSY, SIDE WINDOW
main62910-60040i199708-200108
FRONT
main62910-95702i199305-199708
REAR
main62910-95703i199001-199305
main62910-95703i199305-199708
FRONT
main62920-60010i199708-200108
REAR
62910JLOCK ASSY, SIDE WINDOW, LH
main62910-60040i199708-200108
FRONT
main62910-95702i199305-199708
REAR
main62910-95703i199305-199708
FRONT
main62910-95703i199001-199305
main62920-60010i199708-200108
REAR
65896FCAP, COVER TOP SET BOLT
main65896-90K00i199001-199908
67045AFRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER RH
main67045-90K00i199001-200108
main67045-90K01i199001-200108
main67045-90K02i199001-200108
67046FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER LH
main67046-90K00i199001-200108
main67046-90K01i199001-200108
main67046-90K02i199001-200108
9011906265
main90119-06265
9015930005
main90159-30005
9016440050
main90164-40050
9020206014
main90202-06014
9046805090
main90468-05090
9354083008
main93540-83008

50 parts on this diagram · 3 diagrams in section

SIDE WINDOW — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
