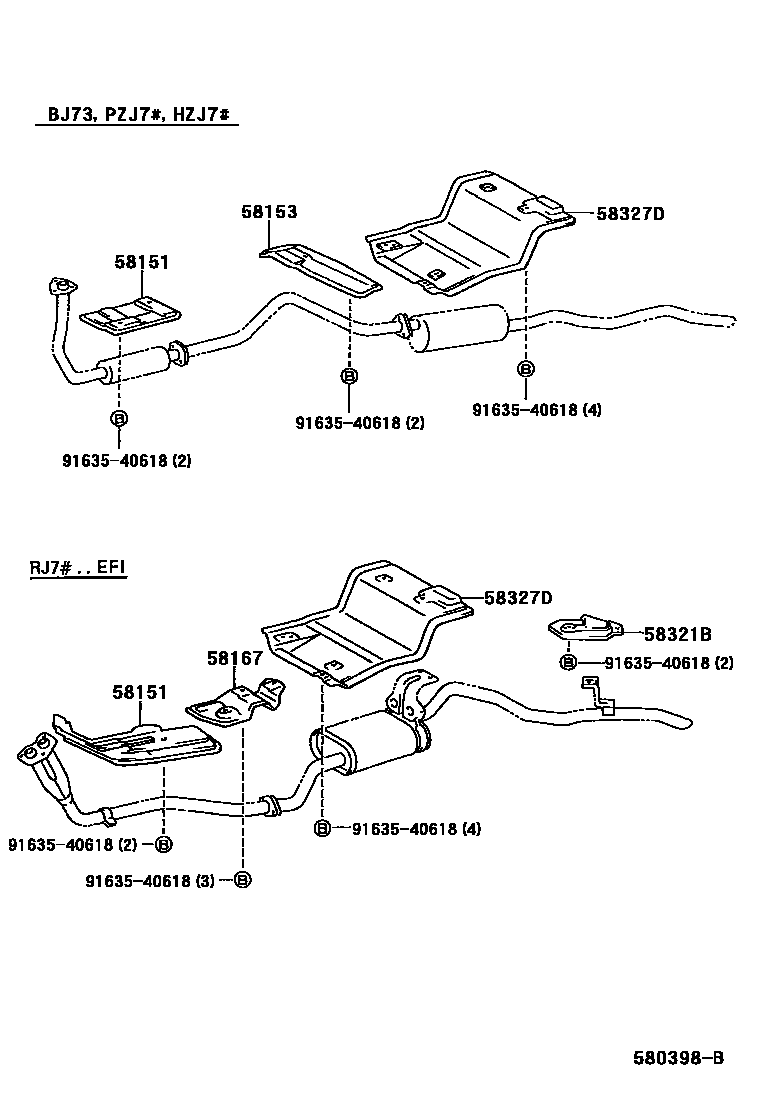

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-90K00iRJ7#..EFI¥3,600199001-199604

main58151-60040iBJ73,HZJ7#,KZJ7#,LJ7#¥1,160199208-200108

main58151-90K00iBJ73,HZJ7#,LJ7#,PZJ7#¥2,050199001-199208

main58151-90K01iRJ70..CBR¥3,400199001-199305

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-90K01iBJ73,HZJ70,71,73,74,LJ7#,PZJ70,73¥1,850199001-200108

58167INSULATOR, FRONT FLOOR HEAT, NO.1 SUB

main58167-90K01iRJ7#..EFI¥1,390199001-199604

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60020iLJ70,73,RJ7#¥1,060199001-199604

main58321-60030iLJ77¥1,000199004-199604

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-60030iHZJ71,74¥9,200199108-200108

main58327-90K00iBJ73,HZJ7#,LJ7#,PZJ70,73,RJ7#¥13,600199001-199108

sub58327-60030¥9,200

9163540618

main91635-40618¥70

6 parts on this diagram · 2 diagrams in section
