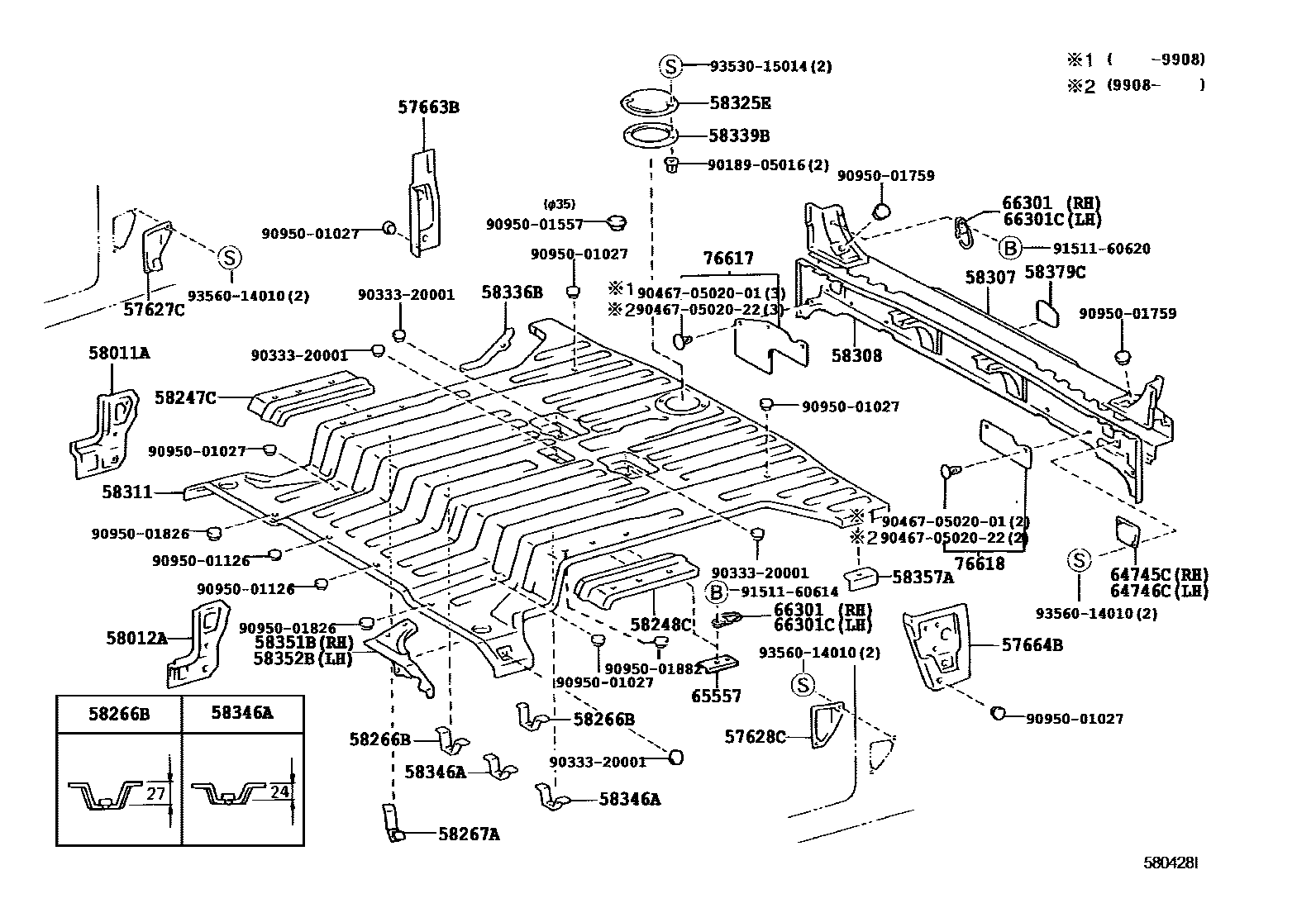

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0005 1

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-60020iHZJ71199001-200108

main57627-60030iBJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

main57627-60040iKZJ70,LJ70..VX199001-199501

sub57627-60020

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-60010iHZJ70,KZJ70,LJ70,RJ70..LX,STD199001-200108

main57628-60020iBJ73,HZJ73,74,LJ73,PZJ73,RJ73199001-200108

main57628-60030iLJ70..VX199001-199501

sub57628-60010

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-60020iLJ77199004-199604

sub57663-60021

main57663-90K00iBJ73,HZJ70,73,KZJ70,73,LJ7#,RJ7#199001-200108

sub57663-60050

main57663-90K01iHZJ75..HT199001-200108

sub57663-60040

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-90K02iBJ73,HZJ70,73,KZJ70,73,LJ7#,RJ7#199001-200108

main58306-60020iKZJ77199004-199604

main58306-90K01iHZJ78199001-200108

58011APANEL SUB-ASSY, FLOOR PANEL SIDE, RH

main58011-60010iHZJ75,78,PZJ75..HT199108-200108

W(FR & RR HEATER)

sub58011-60011

sub90950-01958

main58011-60030iHZJ75..HT199001-200108

sub58011-60031

sub90950-01958

main58011-60031iHZJ78199908-200108

main58011-90K00iHZJ70,71,LJ70,PZJ70,RJ70199001-200108

main58011-90K01iBJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

main58011-90K03iPZJ75..HT199108-199201

W(REAR PARALLEL SEAT) & W(FR & RR HEATER)

sub58011-60010

main58011-90K03iPZJ75..HT199001-199108

W(FR & RR HEATER)

sub58011-60010

58012APANEL SUB-ASSY, FLOOR PANEL SIDE, LH

main58012-60010iHZJ70,71,LJ70,PZJ70,RJ70199001-200108

main58012-60020iBJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

main58012-60061iHZJ78200009-200108

main58012-90K05iHZJ75..HT199001-199908

58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-90K00iHZJ71199001-200108

58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-90K02iHZJ70,71,LJ70,PZJ70,RJ70199001-200108

58266BBRACKET, FUEL TUBE CLAMP

main58266-90K00iHZJ73,KZJ73,RJ73..LX199501-199908

W/O(REAR SEAT)

main58266-90K00iHZJ71199908-200108

W(REAR PARALLEL SEAT) OR W/O(REAR SEAT)

main58266-90K00iHZJ74199001-200108

main58266-90K00iHZJ73,KZJ73,LJ73,RJ73..LX199305-199501

NO.3

58267ABRACKET, FUEL TUBE CLAMP, NO.2

main58267-60030iBJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7#199001-200108

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-60050iKZJ77199004-199604

main58307-60070iHZJ70;LJ70..RHD..LX199001-199305

W/O REAR SEAT

main58307-60090iBJ73,HZJ70,73,KZJ70,73,LJ7#,RJ7#199001-200108

main58307-60100iPZJ75..HT199001-199208

W(*FFRS) OR W/O REAR SEAT

sub58307-60110

main58307-60110iHZJ75..HT199001-200108

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-60100iLJ77199004-199604

main58308-90K00iBJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#199001-200108

main58308-90K01iHZJ75,78,PZJ75..HT199001-200108

58311PAN, REAR FLOOR

main58311-60160iHZJ70,KZJ70,LJ70,RJ70199108-200108

sub58311-60161

main58311-60240iLJ77199004-199306

sub58311-60241

sub55161-90K00

sub58348-60010

main58311-60241iKZJ77199306-199604

main58311-60290iBJ73,HZJ73,74,LJ73,RJ73199108-200108

main58311-90K00iLJ70..LHD..VX;HZJ70,LJ70,PZJ70,RJ70..(LX,STD)..(CBR,DSL)199001-199908

W/O REAR SEAT

main58311-90K00iLJ70..LHD..VX;HZJ70,LJ70,PZJ70,RJ70..(LX,STD)..(CBR,DSL)199001-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT)

main58311-90K00iHZJ71199908-200108

W(REAR PARALLEL SEAT) OR W/O(REAR SEAT)

main58311-90K02iHZJ70,LJ70,PZJ70,RJ70199001-199108

sub58311-60160

main58311-90K07iHZJ73,LJ73,PZJ73199001-199908

W/O REAR SEAT

main58311-90K07iHZJ74199908-200108

W(REAR PARALLEL SEAT) OR W/O(REAR SEAT)

main58311-90K07iRJ73199005-199604

W/O REAR SEAT OR W(REAR PARALLEL SEAT)

main58311-90K09iBJ73,HZJ73,LJ73,PZJ73,RJ73199001-199108

sub58311-60290

main58311-90K47iHZJ78,PZJ75..HT199001-200108

main58311-90K47iHZJ75..HT199208-199908

W(*FFRS)

main58311-90K49iHZJ78199908-200108

W/O(REAR SEAT)

main58311-90K49iHZJ75..HT199208-199908

main58311-90K49iPZJ75..HT199001-199208

W/O REAR SEAT

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-60030iHZJ78199208-200108

main58325-90K00iBJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#199001-200108

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200108

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-60030iHZJ78199208-200108

main58339-90K00iBJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#199001-200108

58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main55161-90K00iKZJ77199306-199604

main58346-60010iLJ77199004-199306

main58346-90K00iHZJ70;LJ70..RHD..LX199001-199108

NO.2

main58346-90K00iHZJ70,71,LJ70,PZJ70,RJ70199001-200108

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-90K00iHZJ70,LJ70,PZJ70,RJ70199001-199908

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58352-90K00iHZJ70,LJ70,PZJ70,RJ70199001-199908

58357AREINFORCEMENT, JACK CARRIER

main58357-90K01iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200108

58379CPROTECTOR, BODY LOWER BACK

main58379-60010iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ75,RJ7#..HT,SOT199109-200108

64745CCOVER, LOWER BACK SERVICE HOLE, RH

main64745-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200108

64746CCOVER, LOWER BACK SERVICE HOLE, LH

main64746-90K00iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200108

65557RETAINER, ROPE HOOK

main65557-90K00iLJ70..LX,STD;LJ70..LHD..VX;HZJ70,71,73,74,LJ73,PZJ70,73,RJ7#199001-200108

66301HOOK SUB-ASSY, ROPE

main66301-90K02iLJ70..LX,STD;LJ70..LHD..VX;HZJ70,73,LJ73,PZJ70,73,RJ7#199001-199604

NO.2

main66301-90K02iLJ77199001-200108

main66301-90K02iHZJ70,73,KZJ70,73..HT..(LX,STD)199501-199908

W/O(REAR SEAT)

main66301-90K02iHZJ71,74199908-200108

W(REAR PARALLEL SEAT) OR W/O(REAR SEAT)

66301CHOOK SUB-ASSY, ROPE, LH

main66301-90K02iBJ73,HZJ7#,LJ70,73,PZJ70,73,RJ7#199001-199005

NO.2

main66301-90K02iLJ77199004-199005

main66302-90K00iLJ70..LX,STD;LJ70..LHD..VX;HZJ70,73,LJ73,77,PZJ70,73,RJ7#199005-199604

NO.2

main66302-90K00iBJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#199005-200108

main66302-90K00iHZJ70,73,KZJ70,73..HT..(LX,STD)199501-199908

W/O(REAR SEAT)

main66302-90K00iHZJ71,74199908-200108

W(REAR PARALLEL SEAT) OR W/O(REAR SEAT)

76617MUDGUARD, LOWER BACK PANEL, FRONT RH

main76617-90K01iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200108

76618MUDGUARD, LOWER BACK PANEL, FRONT LH

main76618-90K01iHZJ71,74,78199001-200108

9018905016

main90189-05016

9033320001

main90333-20001

904670502001

main90467-0502001

904670502022

main90467-0502022

9095001027

main90950-01027

9095001126

main90950-01126

9095001557

main90950-01557

9095001759

main90950-01759

9095001826

main90950-01826

9095001882

main90950-01882

9151160614

main91511-60614

9151160620

main91511-60620

9353015014

main93530-15014

9356014010

main93560-14010

42 parts on this diagram · 4 diagrams in section
