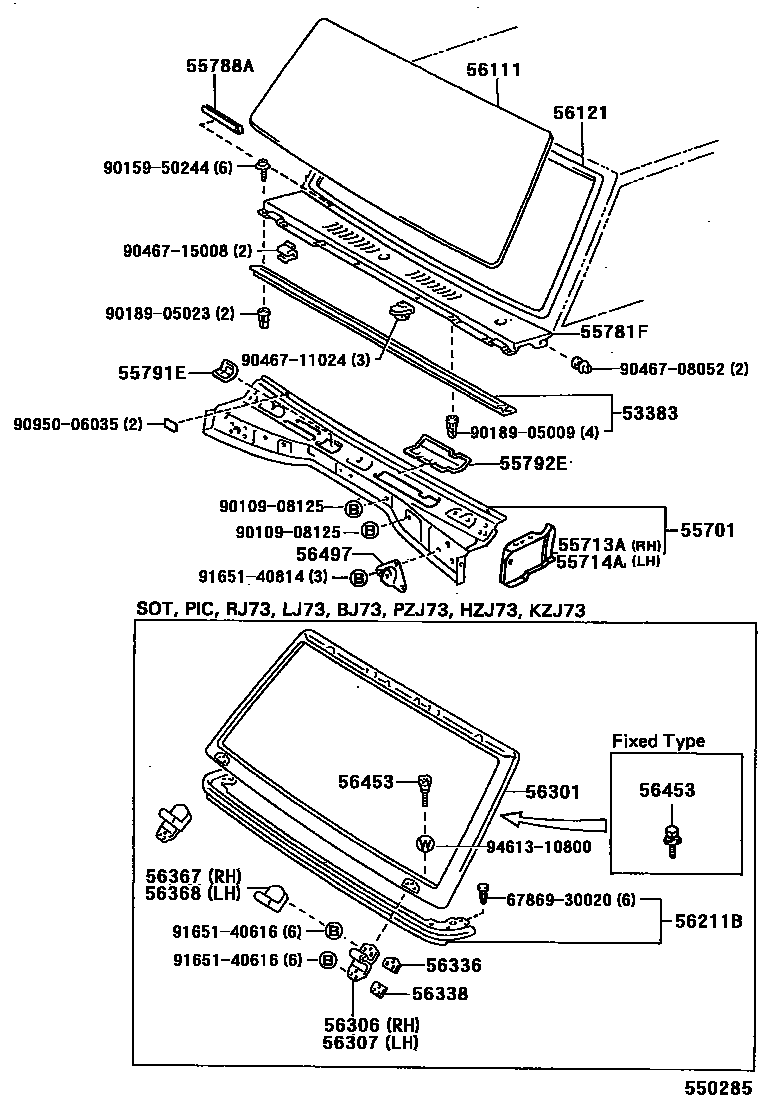

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60040iHZJ7#200012-200108

main53383-90K00iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200012

sub53383-60040

55701PANEL SUB-ASSY, COWL

main55700-60660iHZJ75,KZJ70..PIC,SOT;BJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

main55700-60720iHZJ71,78,79199001-200108

main55700-6A270iLJ70..RHD199001-199604

55713APANEL, COWL TOP SIDE, RH

main55713-90K00iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

sub55713-60090

55714APANEL, COWL TOP SIDE, LH

main55714-90K00iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

sub55714-60090

55781FLOUVER, COWL TOP VENTILATOR

main55781-60040iLJ70..RHD199001-199604

sub55781-60041

main55781-60060iHZJ79;HZJ70,71,75,78,LJ70,77,PZJ70,75,RJ70..LHD..HT199001-200108

sub55781-60061

main55781-60070iHZJ74199001-200108

sub55781-60071

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-90K00iHZJ7#199001-200108

55791ECOVER, HEATER DUCT HOLE

main55791-90K00iKZJ70..RHD199001-199604

main55791-90K01iHZJ7#199001-200108

55792ECOVER, HEATER AIR DUCT HOLE, NO.2

main55792-90K00iLJ70..RHD199001-199604

main55792-90K01iHZJ7#199001-200108

56111GLASS, WINDSHIELD

main56111-60220iHZJ70,75..HT199608-200108

*LAM,T=5.3,GREEN

main56111-60230iHZJ74199608-200108

*LAM,T=5.3,GREEN

main56111-90K02iKZJ70..LHD..VX;KZJ70..HT..(LX,STD);HZJ70,75,KZJ77,LJ70,RJ70..HT199001-199608

*LAM,T=5.3

sub56111-60220

main56111-90K03iHZJ70,75,KZJ70,77,LJ70,RJ70..HT199001-199608

*TL,T=5.3

sub56111-60220

main56111-90K07iHZJ75,KZJ70..PIC,SOT;BJ73,HZJ73,KZJ73,LJ73,RJ73199001-199608

*LAM,T=5.3

sub56111-60230

main56111-90K08iHZJ75,LJ70,PZJ75..PIC,SOT;BJ73,HZJ73,LJ73,PZJ73,RJ73199001-199608

*TL,T=5.3

sub56111-60230

56121WEATHERSTRIP, WINDSHIELD

main56121-60120iHZJ71,78,79200002-200108

main56121-90K00iHZJ79;HZJ70,71,75,78,LJ70,77,PZJ70,75,RJ70..HT199001-200002

sub56121-60120

main56121-90K01iHZJ74199001-200108

56211BCUSHION, WINDSHIELD

main56211-90K00iHZJ75,KZJ70..PIC,SOT;BJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

56301FRAME SUB-ASSY, WINDSHIELD

main56301-60150iKZJ73..VX199001-199604

main56301-90K18iKZJ70..SOT199001-199604

main56301-90K19iHZJ75,PZJ75..PIC199001-199908

main56301-90K20iHZJ74199001-200108

56306HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH

main56306-90K00iHZJ75,KZJ70..PIC,SOT;BJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

56307HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH

main56307-90K00iHZJ75,KZJ70..PIC,SOT;BJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

56336PACKING, WINDSHIELD SUPPORT HINGE, UPPER

main56336-90K01iHZJ75,LJ70,PZJ75..PIC,SOT;BJ73,HZJ73,74,LJ73,PZJ73,RJ73199001-200108

56338PACKING, WINDSHIELD SUPPORT HINGE, LOWER

main56338-90K01iHZJ75,KZJ70..PIC,SOT;BJ73,HZJ73,KZJ73,LJ73,RJ73199001-200108

56367COVER, WINDSHIELD SUPPORT HINGE, RH

main56367-60010iHZJ73;HZJ75..PIC199708-200108

main56367-90K00iHZJ75,LJ70,PZJ75..PIC,SOT;BJ73,HZJ73,LJ73,PZJ73,RJ73199001-199708

sub56367-60010

56368COVER, WINDSHIELD SUPPORT HINGE, LH

main56368-60010iHZJ73;HZJ75..PIC199708-200108

main56368-90K00iHZJ75,LJ70,PZJ75..PIC,SOT;BJ73,HZJ73,LJ73,PZJ73,RJ73199001-199708

sub56368-60010

56453HANDLE, WINDSHIELD CATCH

main56453-60020iHZJ74199012-200108

main56453-90K00iLJ70..SOT;HZJ73,LJ73,PZJ73,RJ73..LX,STD199001-199305

W(DOOR DETACHABLE TYPE)

main90119-08480iLJ70,PZJ75..PIC,SOT;HZJ73,LJ73,PZJ73,RJ73199001-199012

56497BRACKET, CLUTCH BOOSTER MOUNTING

main56497-90K00iHZJ70,75,PZJ70,75..HT199001-199501

6786930020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-30020

9010908125

main90109-08125

9015950244

main90159-50244

9018905009

main90189-05009

9018905023

main90189-05023

9046708052

main90467-08052

9046711024

main90467-11024

9046715008

main90467-15008

9095006035

main90950-06035

9165140616

main91651-40616

9165140814

main91651-40814

9461310800

main94613-10800

32 parts on this diagram · 1 diagram in section
