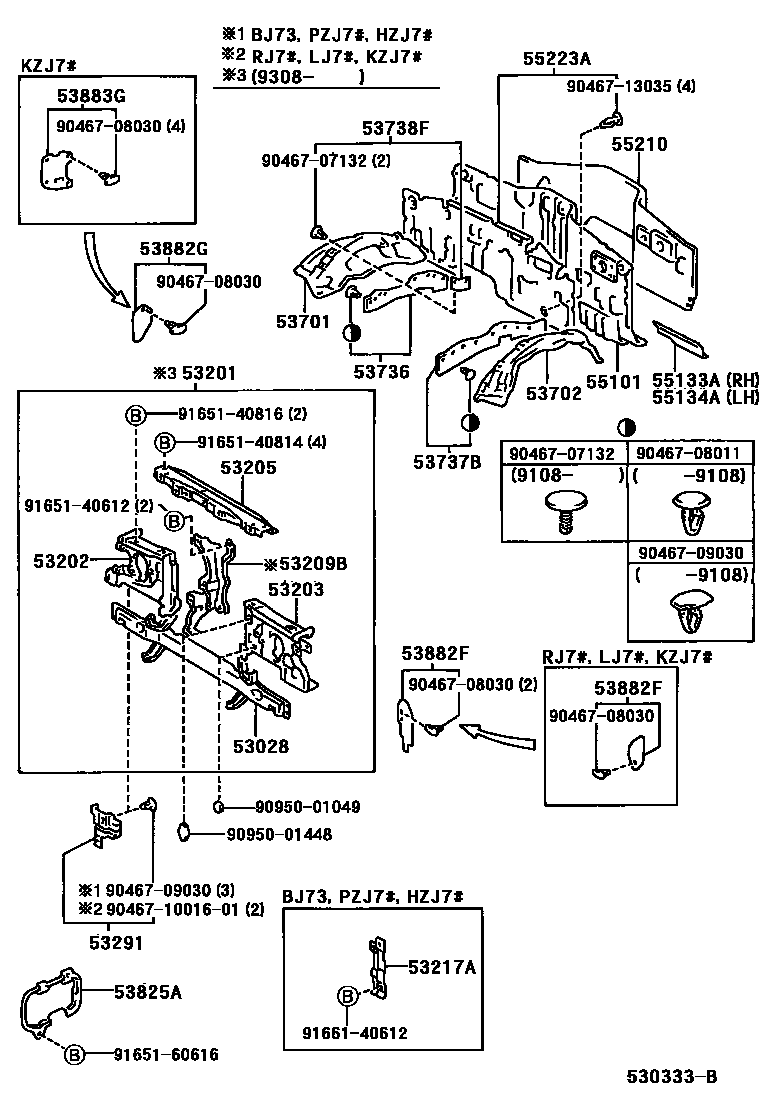

FRONT FENDER APRON & DASH PANEL
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53217ABRACE, HOOD LOCK SUPPORT
53291SEAL, RADIATOR SUPPORT TO FRAME, RH
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-60240
COLD SPEC & W(75D31R & 75D31L PARALLEL BATTERY)
W(POWER LOCKING HUB)
COLD SPEC & W(105D31R & 105D31L PARALLEL BATTERY)
W(AIR CONDITIONER & 2BATTERY)
53702APRON SUB-ASSY, FRONT FENDER, LH
W(HEAD LAMP CLEANER)
sub53702-60131
COLD SPEC & W(55D23R X2 PARALLEL BATTERY) OR COLD SPEC & W(80D26R X2 PARALLEL BATTERY)
sub53702-60131
COLD SPEC & W(80D26R X2 PARALLEL BATTERY)
W(POWER LOCKING HUB)
sub53702-60371
sub53702-60421
sub53702-60431
W(WINCH)
sub53702-6A360
53825APROTECTOR, FRONT FENDER, UPPER RH
53882FSEAL, FRONT FENDER
53882GSEAL, FRONT FENDER
53883GSEAL, FRONT FENDER, FRONT
55101PANEL SUB-ASSY, DASH
COLD SPEC & W(FR & RR HEATER)
W(CLUTCH BOOSTER)
COLD SPEC & W(*CLB & FR & RR HEATER)
W(CLUTCH BOOSTER)
sub55101-6C650
W(FR & RR HEATER)
W(FR & RR HEATER)
W(REAR HEATER & SILENCER)
55133AREINFORCEMENT, DASH TO FLOOR, RH
55134AREINFORCEMENT, DASH TO FLOOR, LH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
sub55223-60150
sub55223-60130
sub55223-60140
sub55223-60131
sub55223-60141
sub55223-60151
sub55223-60161
sub55223-60171
sub55223-60160
sub55223-60170
9046707132
main90467-07132
9046708011
main90467-08011
9046708030
main90467-08030
9046709030
main90467-09030
904671001601
main90467-1001601
9046713035
main90467-13035
9095001049
main90950-01049
9095001448
main90950-01448
9165140612
main91651-40612
9165140814
main91651-40814
9165140816
main91651-40816
9165160616
main91651-60616
9166140612
main91661-40612
35 parts on this diagram · 4 diagrams in section
