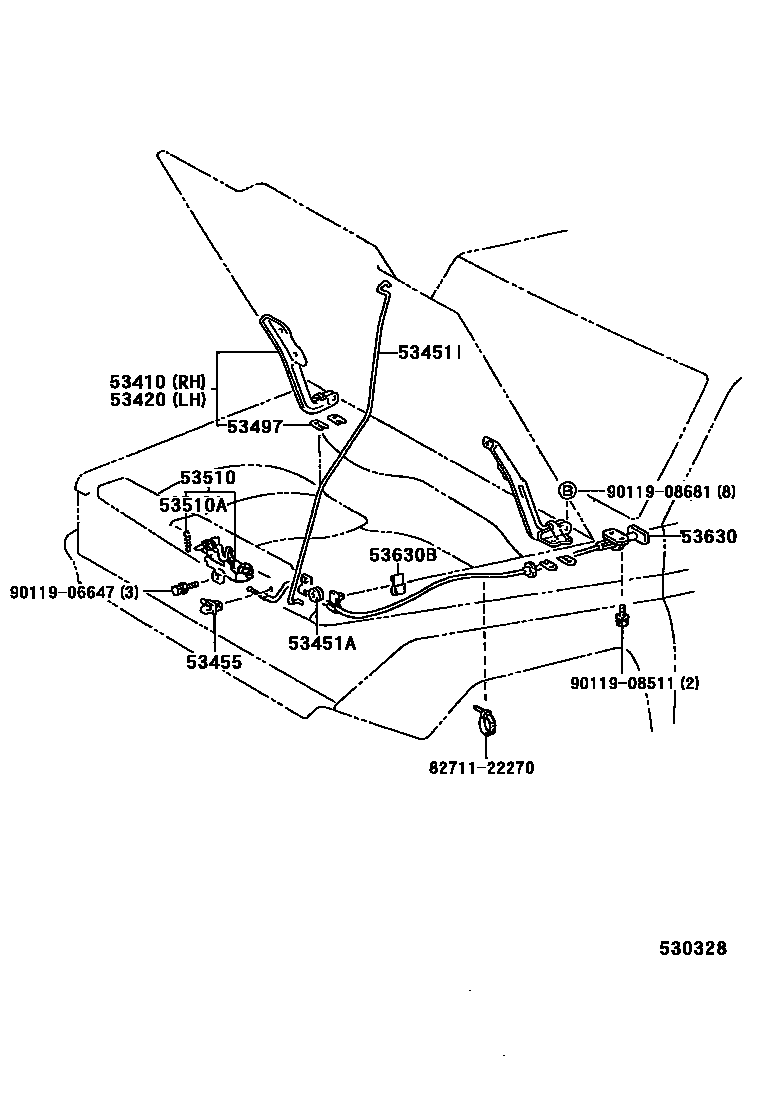

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-90K01iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

sub53410-60100

53420HINGE ASSY, HOOD, LH

main53420-90K01iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

sub53420-60100

53451ROD, HOOD SUPPORT

main53451-90K00iLJ7#,RJ7#199001-199305

main53451-90K01iBJ73,HZJ7#,PZJ7#199001-200108

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15296iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

53497PAD, HOOD HINGE, NO.1

main53497-90K02iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

T=0.5

sub53497-12070

53510LOCK ASSY, HOOD

main53510-60040iLJ70..RHD199001-199208

sub53510-60041

main53510-60041iKZJ70..RHD199208-199604

main53510-60050iLJ7#,RJ7#..LHD199001-199208

sub53510-60051

main53510-60051iLJ7#,RJ7#..LHD199208-199604

main53510-60070iBJ73,HZJ7#,PZJ7#199001-199208

sub53510-60071

main53510-60071iBJ73,HZJ7#199208-200108

sub53510-60230

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09039iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199208

WD=0.9,CW=21.25

main90506-09052iHZJ7#199208-200108

WD=0.9,CW=20.75

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60030iKZJ7#..LHD199305-199501

main53630-60031iHZJ7#,KZJ7#,RJ7#..LHD199501-200108

main53630-90K02iKZJ70..RHD;BJ73,HZJ7#,LJ7#,RJ7#199001-199604

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010iHZJ7#199001-200108

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9011906647

main90119-06647

9011908511

main90119-08511

9011908681

main90119-08681

14 parts on this diagram · 1 diagram in section
