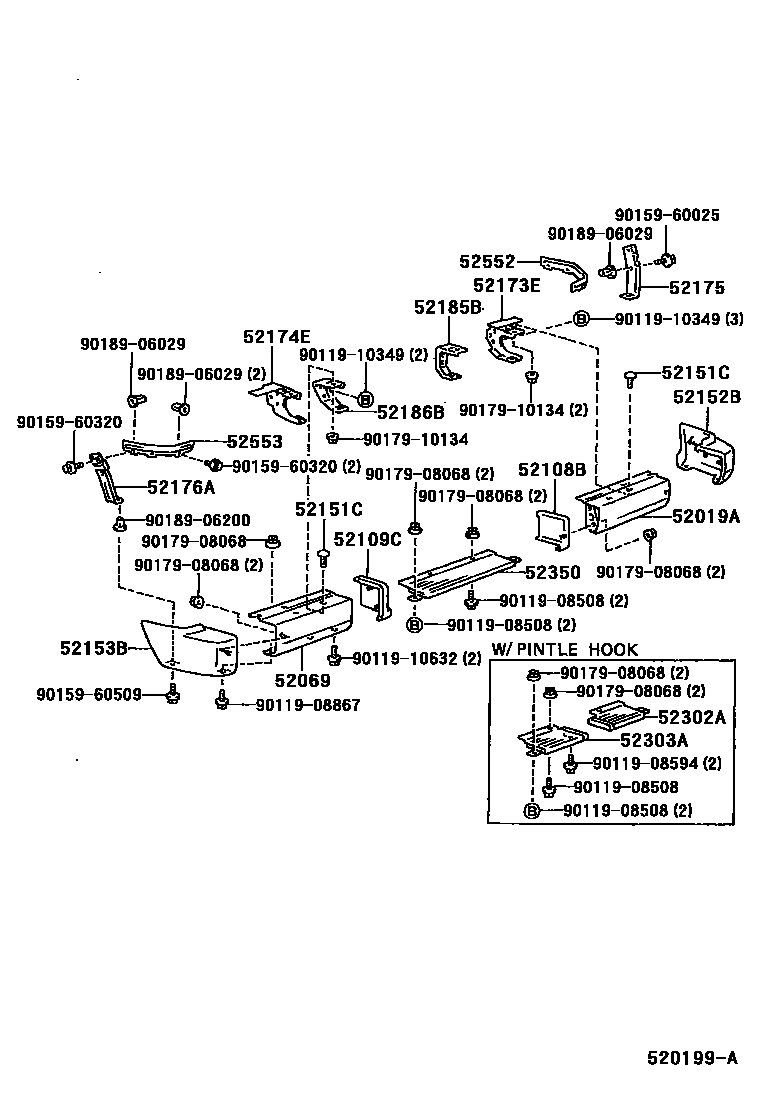

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52019ABAR SUB-ASSY, REAR BUMPER, RH

main52019-60020iLJ70..RHD..LX¥17,300199001-199401

PAINTED

main52019-60021iKZJ70..RHD..LX¥17,500199401-199604

PAINTED

main52019-60030iKZJ70..RHD..LX¥20,200199001-199401

CHROME PLATED

main52019-60031iKZJ70..RHD..LX¥20,600199401-199604

CHROME PLATED

main52019-60040iHZJ70,73,KZJ7#,LJ7#,RJ7#..LHD..(LX,VX)¥17,300199001-199401

PAINTED & W(REAR CONBINATION LAMP)

main52019-60041iHZJ71,74,78¥20,600199401-200108

W(REAR CONBINATION LAMP)

main52019-60050iKZJ70..VX;KZJ70..LHD..LX;HZJ70,73,KZJ73,77,LJ7#,RJ7#¥20,200199001-199401

PLATED & W(REAR CONBINATION LAMP)

main52019-60051iHZJ71,74,78¥20,600199401-200108

CHROME PLATED & W(REAR COMBINATION LAMP)

52069BAR SUB-ASSY, REAR BUMPER, LH

main52069-60020iKZJ70..RHD..LX¥17,300199001-199401

PAINTED

main52069-60021iKZJ70..RHD..LX¥17,500199401-199604

PAINTED

main52069-60030iKZJ70..RHD..LX¥20,200199001-199401

main52069-60031iKZJ70..RHD..LX¥20,600199401-199604

CHROME PLATED

main52069-60040iBJ73,HZJ75,KZJ70..(HT,SOT)..(STD,VM)¥17,300199001-199401

PAINTED & W(REAR CONBINATION LAMP)

main52069-60041iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..LHD..(HT,SOT)¥17,500199401-200108

W(REAR CONBINATION LAMP)

main52069-60050iBJ73,HZJ75,LJ70,PZJ7#..(HT,SOT)..(STD,VM)¥20,200199001-199401

PLATED & W(REAR CONBINATION LAMP)

main52069-60051iKZJ70..STD,VX;KZJ70..LHD..LX;BJ73,HZJ7#,KZJ73,77,LJ7#,RJ7#..HT¥20,600199401-200108

CHROME PLATED & W(REAR COMBINATION LAMP)

52108BEXTENSION SUB-ASSY, REAR BUMPER SIDE, RH

main52108-60040iBJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT¥1,720199001-200108

main52108-60050iLJ77¥1,710199004-199604

52109CEXTENSION SUB-ASSY, REAR BUMPER SIDE, LH

main52109-60040iBJ73,HZJ7#,KZJ70,73,LJ7#,RJ7#..HT,SOT¥1,720199001-200108

main52109-60050iLJ77¥1,710199004-199604

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-10021iBJ73,HZJ75,KZJ70..(HT,SOT)..(STD,VM)¥160199001-199908

PLATED & W(REAR CONBINATION LAMP)

main90112-10021iLJ70..LX,VX;HZJ70,71,73,74,78,LJ73,77,RJ7#¥160199001-200108

CHROME PLATED

main90112-10022iKZJ70..RHD..LX¥160199001-199604

PAINTED

main90112-10022iLJ70..RHD..LX¥160199001-199908

PAINTED & W(REAR CONBINATION LAMP)

main90112-10022iHZJ71,74,78¥160199001-200108

52152BEXTENSION, REAR BUMPER, RH

main52106-60130iLJ77¥11,800199004-199303

sub52106-60131¥11,800

main52106-60131iKZJ77¥11,800199303-199604

sub52106-60132¥8,100

main52106-60170iHZJ71,74,78¥10,100199001-200108

sub52106-60171¥6,200

main52106-60190-E0iKZJ70,73..LHD..LX199509-199603

LIMITED EDITION(FRANCE),FLAXEN M.M.,25Z ,26Z ,27Z

sub52106-60170¥10,100

52153BEXTENSION, REAR BUMPER, LH

main52107-60100iLJ77¥11,800199004-199303

sub52107-60101¥11,800

main52107-60101iKZJ77¥11,800199303-199604

sub52107-60102¥8,100

main52107-60140iBJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT¥10,100199001-200108

sub52107-60141¥6,200

main52107-60160-E0iKZJ70,73..LHD..LX199509-199603

LIMITED EDITION(FRANCE),FLAXEN M.M.,25Z ,26Z ,27Z

sub52107-60140¥10,100

52173EBRACKET, REAR BUMPER BAR, RH

main52173-60060iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥1,930199004-200108

main52173-60080iBJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT¥2,680199001-199305

52174EBRACKET, REAR BUMPER BAR, LH

main52174-60050iLJ77¥2,290199004-199604

main52174-60070iBJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT¥2,260199001-200108

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-60020iHZJ71,74,78¥510199001-200108

main52175-60030iKZJ77¥510199004-199604

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52175-60030iLJ77¥510199004-199604

main52176-60020iBJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT¥510199001-200108

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60040iHZJ71,74,78¥1,800199001-200108

main52185-60050iKZJ77¥1,980199004-199604

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-60030iBJ73,HZJ7#,KZJ70,73,LJ7#,RJ7#..HT,SOT¥1,800199001-200108

main52186-60040iLJ77¥1,980199004-199604

52302ASTEP SUB-ASSY, REAR BUMPER

main52302-60010iHZJ71,74,78¥3,240199001-200108

52303ASTEP SUB-ASSY, REAR BUMPER, LH

main52303-60010iKZJ70..LHD..VX;BJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM)¥3,240199001-200108

52350STEP ASSY, REAR BUMPER

main52351-60070iBJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT¥5,900199001-200108

52552FILLER, REAR BUMPER, RH

main52552-60020iHZJ71,74,78¥1,020199001-200108

main52552-60030iLJ77¥2,090199004-199604

52553FILLER, REAR BUMPER, LH

main52553-60020iBJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT¥1,020199001-200108

main52553-60030iLJ77¥2,090199004-199604

9011908508

main90119-08508¥90

9011908594

main90119-08594¥90

9011908867

main90119-08867¥110

9011910349

main90119-10349¥130

9011910632

main90119-10632¥90

9015960025

main90159-60025¥200

9015960320

main90159-60320¥120

9015960509

main90159-60509¥70

9017908068

main90179-08068¥100

9017910134

main90179-10134¥240

9018906029

main90189-06029¥100

9018906200

main90189-06200¥70

30 parts on this diagram · 2 diagrams in section
