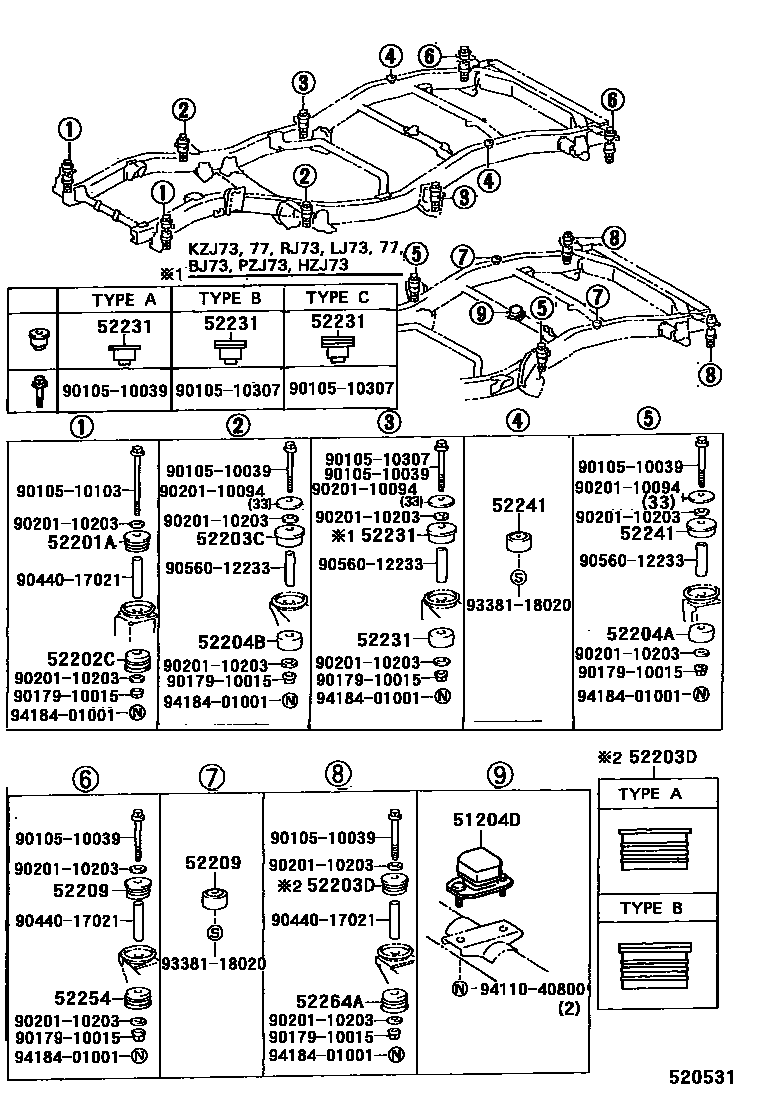

CAB MOUNTING & BODY MOUNTING

0001 1 0003 1

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22100iPZJ73199001-199002

main51204-22140iPZJ73199002-199108

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-25020iHZJ7#199001-200108

52202CCUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER

main52202-25020iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199908

main52202-60050iHZJ7#199908-200108

52203CCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-60020iHZJ75..HT199001-200108

main52203-60030iHZJ75..PIC;BJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#199001-200108

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52201-60030iBJ73,HZJ73,LJ73,77,PZJ73,RJ73199001-199010

main52201-60030iHZJ74199010-200108

TYPE A

main52201-60040iBJ73,HZJ73,KZJ73,77,LJ73,RJ73199010-200108

TYPE B

main52203-60030iHZJ75,78,PZJ75..HT199001-200108

52204ACUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER

main52204-60030iBJ73,HZJ73,75,LJ73,77,PZJ73,75,RJ73..HT199001-199908

main52204-60070iHZJ74,78199908-200108

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-60020iHZJ75..HT199001-199908

main52204-60030iHZJ75..PIC;BJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#199001-199908

main52204-60070iHZJ71,74,79199908-200108

main52204-60080iHZJ78199908-200108

52209CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER

main52201-60030iHZJ70,71,LJ70,PZJ70,RJ70199001-200108

main52209-60020iHZJ75,78,PZJ75..HT199001-200108

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52203-60020iHZJ75,PZJ75..PIC199001-199908

UPR

main52203-60030iHZJ75..HT199001-200108

UPR

main52203-60030iHZJ78199908-200108

UPPER

main52204-60020iHZJ75,PZJ75..PIC199001-199908

LWR

main52204-60030iHZJ75..HT199001-199908

LWR

main52204-60070iHZJ78199908-200108

LOWER

main52204-60070iHZJ78199908-200108

LWR

main52205-60040iHZJ79199908-200108

UPPER

main52206-60040iHZJ79199908-200108

LOWER

main52207-60010iBJ73,HZJ7#,LJ7#,PZJ70,73,RJ7#199001-199004

UPR

main52207-60030iBJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#199004-200108

UPR,TYPE A

main52207-60040iBJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7#199005-200108

UPR,TYPE B

main52207-60050iBJ73,HZJ70,73,KZJ7#,LJ7#,RJ7#199005-200108

UPR,TYPE C

main52208-60010iBJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7#199001-200108

LWR

main52208-60010iHZJ71,74199908-200108

LOWER

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52203-60030iBJ73,HZJ73,74,75,78,LJ73,77,PZJ73,75,RJ73..HT199001-200108

main52209-60020iHZJ70,71,LJ70,PZJ70,RJ70199001-200108

52254CUSHION, BODY MOUNT, NO.5 LOWER

main52202-60020iHZJ70,71,LJ70,PZJ70,RJ70199001-200108

52264ACUSHION, BODY MOUNT, NO.6 LOWER

main52202-60020iHZJ74199001-200108

main52204-60030iHZJ75,PZJ75..HT199001-199908

main52204-60070iHZJ78199908-200108

9010510039

main90105-10039

9010510103

main90105-10103

9010510307

main90105-10307

9017910015

main90179-10015

9020110094

main90201-10094

9020110203

main90201-10203

9044017021

main90440-17021

9056012233

main90560-12233

9338118020

main93381-18020

9411040800

main94110-40800

9418401001

main94184-01001

23 parts on this diagram · 2 diagrams in section
