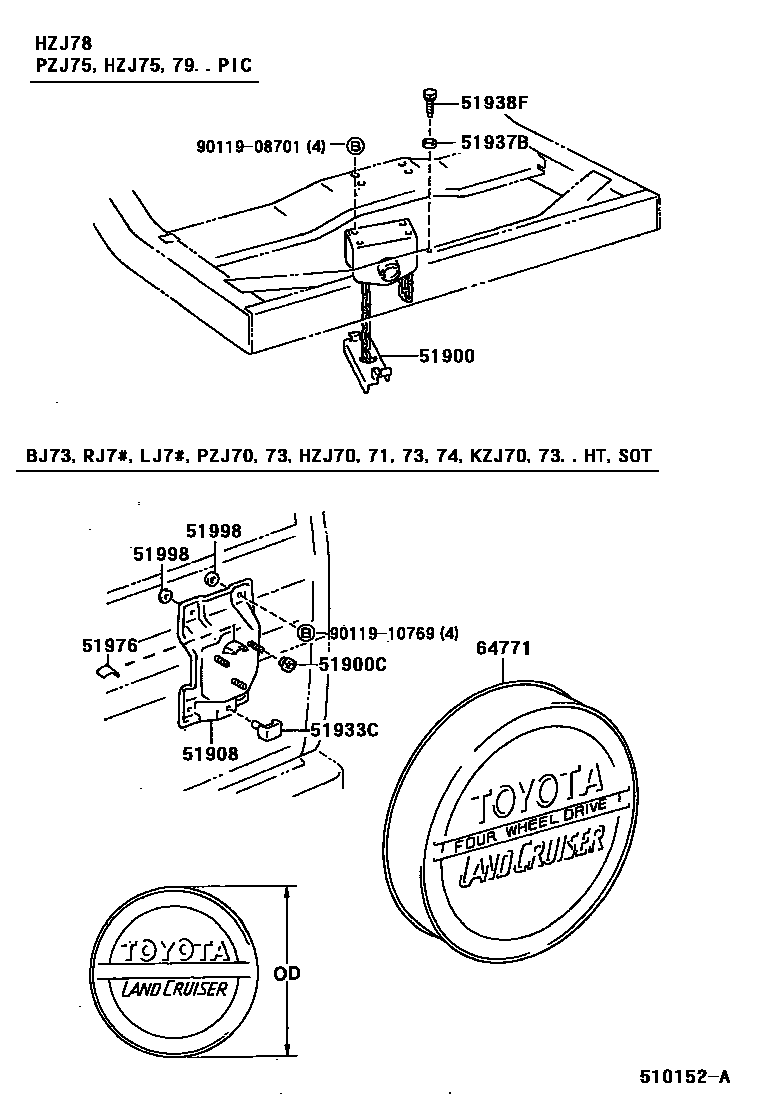

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-60090iHZJ75199001-200108

51900CNUT, SPARE WHEEL, HUB

main90942-01007iBJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#199001-199908

main90942-01081iHZJ70,73,LJ7#,RJ7#..LX,VX199001-199908

W(ALUMINIUM WHEEL)

main90942-01101iHZJ71,74199908-200108

main90942-01103iHZJ71,74199908-200108

W(ALUMINIUM WHEEL)

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-60070iHZJ70,73199608-199908

main51908-60140iHZJ71,74199908-200108

sub51908-60160

main51908-90K05iBJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#199001-199608

sub51908-60070

51933CSTOPPER, SPARE WHEEL

main51933-90K01iHZJ70,73,KZJ7#,LJ7#,RJ7#199001-200108

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iHZJ75,78,PZJ75..HT199001-200108

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12121iHZJ75,78,PZJ75..HT199001-200108

51976FILM, SPARE WHEEL CARRIER, NO.2

main51976-60020iHZJ70,73199608-200108

51998PAD, SPARE WHEEL BRACKET

main51998-90K01iBJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7#199001-200108

64771COVER, SPARE WHEEL

main64771-60080iKZJ70..LHD..VX199305-199501

GERMANY SPEC OR ITALY SPEC

main64771-60080iLJ70..LHD..VX199001-199208

*FRG & W(265/75R15 TIRE)

main64771-60080iLJ70..RHD..VX199001-199305

main64771-60080iLJ77199004-199604

W(265/75R15 TIRE)

main64771-60080iLJ70..LHD..VX199208-199305

*FRG

main64771-60080iKZJ70..LHD..VX199501-199604

GERMANY SPEC OR ITALY SPEC & W(265/75R15 TIRE)

main64771-60100iKZJ77199305-199604

ITALY SPEC

main64771-60100iLJ70..LHD..VX199001-199208

*FRG

main64771-60100iLJ77;LJ73..VX199001-199305

main64771-60150iHZJ71,74199001-200108

main64771-60180iHZJ70,73199001-199908

W(265/75R15 TIRE)

main64771-60180iHZJ71,74199908-200108

W(265/70R16 TIRE)

main64771-60190iLJ70;KZJ70..LHD..VX;KZJ70,73,LJ73,RJ7#..LX,STD199001-199604

main64771-60200iLJ70..RHD..LX199001-199208

W(7.00-16-6 TIRE)

main64771-60220iLJ70;KZJ70..LHD..VX;KZJ70,73,LJ73,RJ7#..LX,STD199001-199604

W(265/75R15 TIRE)

main64771-60230iLJ70,73,RJ70..LHD..HT..(LX,STD)..(CBR,DSL)199001-199305

*FRG

main64771-60230iLJ7#199305-199501

ITALY SPEC

main64771-60230iKZJ73..LX199305-199604

GERMANY SPEC

main64771-60230iKZJ73..LX199305-199604

GERMANY SPEC OR ITALY SPEC

main64771-60240iLJ7#;KZJ70..LHD..HT..(LX,STD)199305-199604

ITALY SPEC & W(265/75R15 TIRE)

main64771-60240iLJ70,73,RJ70..LHD..HT..(LX,STD)..(CBR,DSL)199001-199112

*FRG & W(265/75R15 TIRE)

9011908701

main90119-08701

9011910769

main90119-10769

11 parts on this diagram · 1 diagram in section
