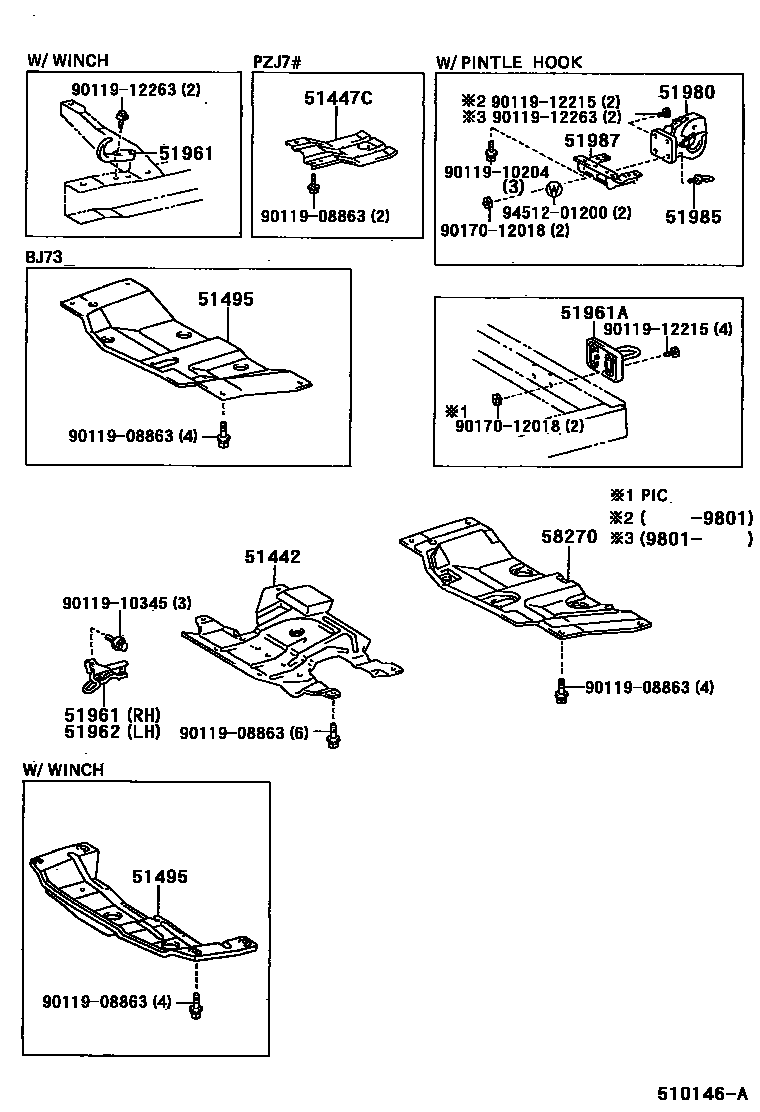

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51442COVER, ENGINE UNDER, NO.2

main51442-60090iBJ73,HZJ7#,PZJ7#199001-199908

main51442-60160iHZJ7#199908-200108

sub51442-60161

51447CPROTECTOR, TRANSFER CASE

main51447-60020iLJ7#,PZJ7#,RJ7#199001-199604

main51447-60031iHZJ7#199908-200108

51495COVER, TRANSMISSION UNDER

main51495-60130iBJ73199001-199402

main51495-60280iPZJ7#199001-199208

main58260-60100iKZJ7#199305-199604

51961HOOK, NO.1

main51961-60010iHZJ7#199501-199908

W(*EW)

main51961-60010iHZJ7#199001-200108

W(WINCH)

main51961-60120iBJ73,HZJ7#,PZJ7#199001-199607

sub51961-60121

main51961-60121iHZJ7#199607-200108

main51961-60140iKZJ7#,LJ7#,RJ7#199001-199604

main51961-60140iKZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD199305-199604

W(WINCH)

51961AHOOK, NO.3

main51961-60081iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

51962HOOK, NO.2

main51961-60130iBJ73,HZJ7#,PZJ75199001-199607

sub51961-60131

main51961-60131iHZJ7#199607-200108

main51961-60140iLJ7#,RJ7#199001-199305

main51961-60150iKZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD199305-199604

main51961-60150iLJ73,RJ7#;LJ70..LX,STD;LJ70..LHD..VX199001-199305

W(WINCH)

51980HOOK ASSY, PINTLE

main51980-60010iLJ70..LHD..VX;BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..LX,STD,VM199001-199510

sub51980-60011

main51980-60011iKZJ70..LHD..VX;HZJ7#,KZJ70,73,RJ7#..LX,STD199510-199801

sub51980-60012

sub90119-12263

sub90201-12019

main51980-60012iHZJ7#199801-200108

51985HOOK, EYELET PINTLE

main51985-60011iLJ70..LHD..VX;BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..LX,STD,VM199001-200108

51987BRACKET, PINTLE HOOK

main51987-60021iLJ70..LHD..VX;BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..(HT,SOT)..(LX,STD,VM)199001-200108

58270COVER ASSY, TRANSMISSION, REAR

main58270-60050iHZJ7#199001-199908

9011908863

main90119-08863

9011910204

main90119-10204

9011910345

main90119-10345

9011912215

main90119-12215

9011912263

main90119-12263

9017012018

main90170-12018

9451201200

main94512-01200

17 parts on this diagram · 3 diagrams in section
