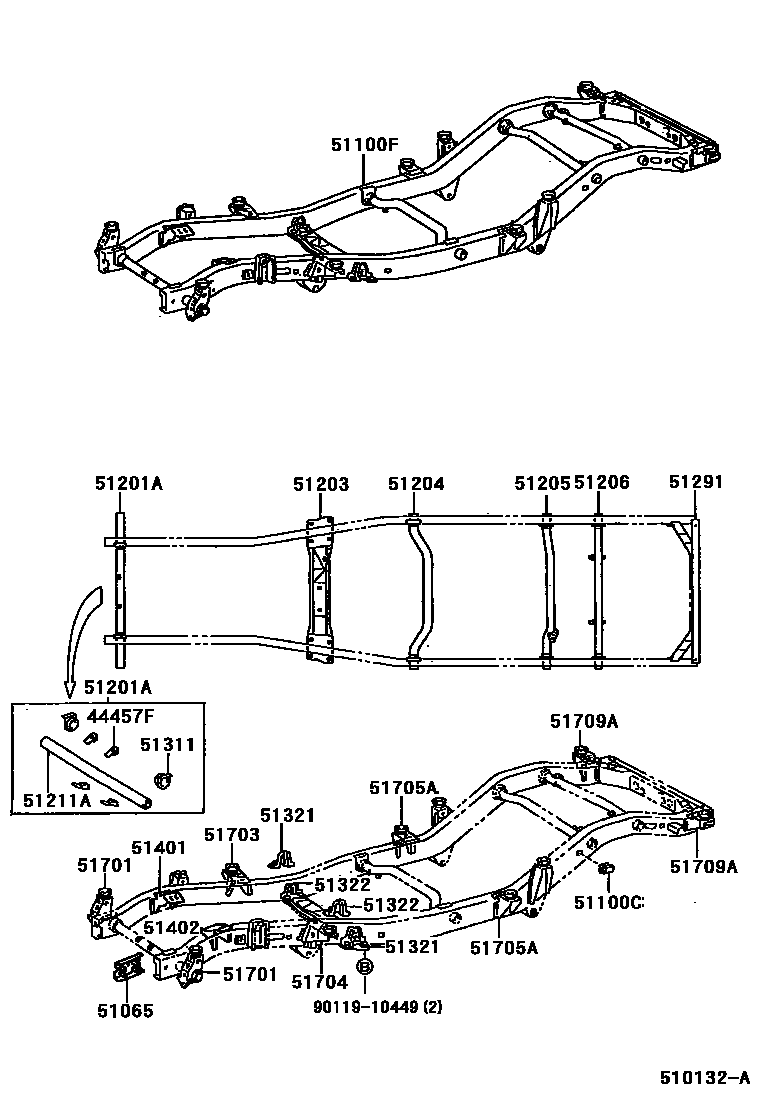

FRAME

0001 1 0002 1 0003 1 0004 1 0005 1

44457FBRACKET, TUBE SUPPORT

main44457-60150iHZJ7#¥200199502-200108

51065SUPPORT SUB-ASSY, STEERING GEAR BOX

main51065-60041iBJ73,HZJ70,73¥10,200199001-199908

main51065-60061iHZJ75¥4,700199001-199908

main51065-60071iKZJ70..RHD¥8,100199001-199604

main51065-60081iKZJ7#,LJ7#,RJ7#..LHD¥8,100199001-199604

51100CPLUG, HOLE(FOR FRAME)

main90950-01463iKZJ7#,LJ7#,RJ7#¥200199001-199908

BLACK

main90950-01754iBJ73,HZJ7#¥240199001-199908

BLUE

51100FFRAME SUB-ASSY

main51001-6A180iKZJ70..RHD¥233,000199305-199604

main51001-6A190iKZJ70..LHD¥233,000199305-199604

main51001-6A210iKZJ73¥233,000199305-199604

main51001-6A230iKZJ77¥263,000199305-199604

main51002-60063iPZJ70¥236,000199001-199108

main51002-60113iPZJ73¥236,000199001-199108

main51002-60153iPZJ75..HT¥290,000199001-199201

main51002-60154iPZJ75..HT¥319,000199201-199208

main51002-60174iHZJ75..HT¥291,000199208-199908

main51002-60273iPZJ75..PIC¥290,000199001-199201

main51002-60274iPZJ75..PIC¥319,000199201-199208

main51002-60294iHZJ75..PIC¥320,000199208-199908

main51002-60363iLJ70..RHD¥233,000199001-199305

main51002-60373iLJ70..LHD¥233,000199001-199305

main51002-60374iLJ70¥233,000199305-199501

main51002-60393iRJ70..CBR¥233,000199001-199305

main51002-60532iLJ73¥233,000199001-199305

main51002-60533iLJ73¥233,000199305-199408

main51002-60671iRJ70..EFI¥233,000199001-199305

main51002-60672iRJ70¥233,000199305-199604

main51002-60681iRJ73¥233,000199001-199305

main51002-60682iRJ73¥233,000199305-199604

main51002-60770iHZJ70¥233,000199001-199908

main51002-60790iBJ73,HZJ73¥233,000199001-199908

main51002-60860iLJ77¥263,000199004-199305

main51003-6A530iHZJ71¥263,000199908-200108

sub51003-6A531

sub90119-10876¥170

main51003-6A540iHZJ74¥263,000199908-200108

sub51003-6A541

sub90119-10876¥170

main51003-6A560iHZJ78¥350,000199908-200108

sub51003-6A561

sub91645-C1032¥200

main51003-6A580iHZJ79¥350,000199908-200108

sub51003-6A581

sub91645-C1032¥200

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-60101iHZJ7#199001-199502

sub51201-60130

main51201-60111iLJ7#,RJ7#¥16,700199001-199604

main51201-60130iBJ73,HZJ73199305-199402

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60110iBJ73,HZJ7#¥18,600199001-199405

main51202-60111iHZJ7#¥16,700199405-199908

main51202-60120iHZJ7#¥21,300199908-200108

sub51202-60250¥30,600

main51202-60131iKZJ7#,LJ7#,RJ7#¥16,700199001-199604

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-60132iBJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL¥8,900199001-200108

main51203-60141iRJ7#¥14,500199001-199604

main51203-60170iHZJ75¥18,100199201-199908

main51203-60200iHZJ78,79¥19,500199908-200108

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-60071iHZJ71,74¥14,500199001-200108

main51204-60093iLJ70,RJ70¥16,700199001-199604

main51204-60110iKZJ73,77,LJ73,RJ73¥16,700199001-199604

main51241-60061iHZJ75,PZJ75¥16,700199001-199305

sub51241-60130¥16,600

main51241-60160iHZJ75¥14,700199305-200108

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-60021iBJ73,HZJ7#,PZJ7#¥14,600199001-199908

sub51250-60050¥14,500

main51205-60042iLJ7#,RJ7#¥14,500199001-199604

main51205-60160iHZJ7#¥17,700199908-200003

main51250-60050iHZJ7#¥14,500200003-200108

51211ACROSSMEMBER, FRAME, FRONT

main51211-60050iHZJ7#¥13,300199502-200108

51291CROSSMEMBER, FRAME, REAR

main51209-60071iLJ70¥14,900199001-199004

sub51209-60130¥23,400

main51209-60081iHZJ79¥15,000199908-200108

sub51209-60140¥23,400

main51209-60101iHZJ75..HT¥14,700199001-200108

main51209-60120iLJ77¥23,600199004-199604

main51209-60130iBJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#¥23,400199001-200108

main51209-60140iHZJ75,79,PZJ75..PIC¥23,400199001-200108

51311GUSSET, FRAME FRONT CROSSMEMBER

main51311-60041iHZJ7#¥1,350199502-199906

sub51311-60042¥850

main51311-60042iHZJ7#¥850199906-200108

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-60041iKZJ7#,LJ7#,RJ7#¥2,660199001-199604

main51321-60060iBJ73,HZJ7#¥2,660199001-199305

sub51321-60090¥2,660

main51321-60070iBJ73,HZJ7#¥2,940199309-199908

LH

main51321-60090iBJ73,HZJ7#¥2,660199305-200108

main51321-60090iBJ73,HZJ7#¥2,660199309-199908

RH

51322GUSSET, CROSSMEMBER, NO.2 LH

main51321-60041iLJ7#,PZJ7#,RJ7#¥2,660199001-199305

main51322-60040iBJ73,HZJ7#¥2,660199001-199305

sub51322-60070¥2,650

main51322-60050iBJ73,HZJ7#¥2,660199309-199908

RH

main51322-60070iHZJ7#¥2,650199908-200108

sub51322-60080¥2,650

main51322-60080iBJ73,HZJ7#¥2,650199305-199309

main51322-60080iBJ73,HZJ7#¥2,650199309-199908

LH

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-60010iLJ7#,RJ7#¥5,700199001-199604

main51401-60030iKZJ7#¥6,000199305-199604

main51421-60140iBJ73,HZJ7#,PZJ7#¥4,400199001-200108

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-60010iLJ7#,RJ7#¥5,700199001-199604

main51402-60020iKZJ7#¥6,000199305-199604

main51422-60120iPZJ7#¥3,400199001-199208

main51422-60140iBJ73,HZJ7#¥4,240199001-199908

main51422-60190iHZJ7#¥4,400199908-200108

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60060iLJ7#,RJ7#¥4,870199001-199604

main51701-60070iBJ73,HZJ7#,PZJ7#¥2,820199001-200108

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60030iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#¥5,700199001-199908

main51703-60080iHZJ7#¥7,500199908-200108

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60020iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#¥5,700199001-199908

main51704-60070iHZJ7#¥7,500199908-200108

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-60080iBJ73,HZJ73,LJ73,77,PZJ73,RJ73¥1,690199001-199305

sub51705-60130¥4,190

main51705-60091iHZJ78,79¥3,500199001-200108

sub51705-60140¥4,190

main51705-60100iKZJ70,LJ70,RJ70¥4,480199001-199604

RH

main51705-60130iHZJ74¥4,190199305-200108

sub51705-60080¥1,690

main51706-60030iKZJ70,LJ70,RJ70¥4,480199001-199604

LH

51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-60031iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT¥5,700199001-200108

sub51709-60040¥7,600

main51709-60040iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT,SOT¥7,600199305-199908

9011910449

main90119-10449¥200

22 parts on this diagram · 5 diagrams in section
