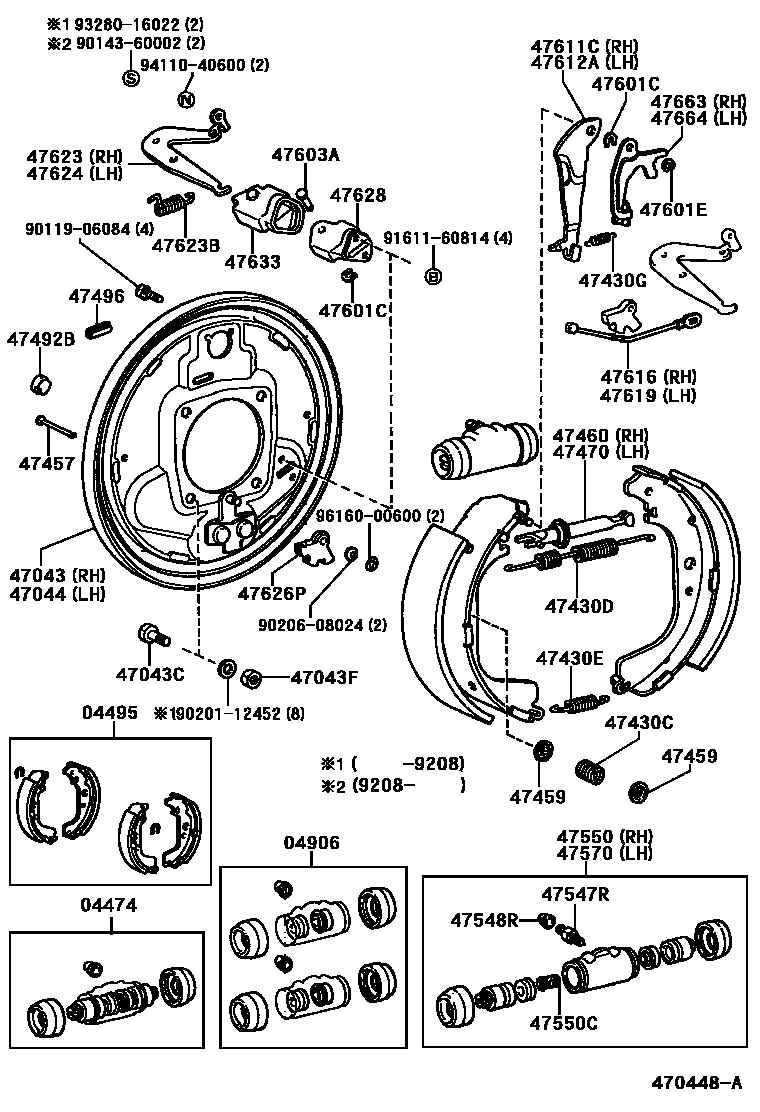

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0005 1

04474CYLINDER KIT, REAR WHEEL

main04474-35100iHZJ7#,KZJ7#,RJ7#199511-200108

main04474-60010iBJ73,HZJ7#,LJ77,PZJ75,RJ73199001-199511

sub04474-35100

sub90029-60009

04495SHOE KIT, REAR BRAKE

main04495-26121iLJ70,73,RJ7#199001-199305

main04495-35151iRJ73199108-199305

W(PARALLEL SEAT)

sub04495-35230

main04495-35151iLJ77199004-199604

sub04495-35230

main04495-60060iBJ73,HZJ7#,PZJ7#199001-199908

MARK NBK LN508

sub04495-60070

main04495-60070iHZJ7#199908-200108

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iLJ70,73,RJ7#199001-199305

main04906-35130iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

main04906-35130iRJ73199108-199604

W(PARALLEL SEAT)

main04906-60050iBJ73,HZJ7#199305-199511

sub04906-35130

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-60070iLJ70,73,RJ7#199001-199208

main47043-60071iLJ70,73,RJ7#199208-199305

main47043-60090iBJ73,HZJ7#,PZJ7#199001-199208

main47043-60100iLJ77199008-199208

sub47043-60101

main47043-60100iRJ73199108-199208

W(PARALLEL SEAT)

sub47043-60101

main47043-60101iLJ77199208-199305

W(PARALLEL SEAT)

sub47043-60120

sub47492-28010

main47043-60110iBJ73,HZJ7#199208-199908

main47043-60120iKZJ7#,LJ7#,RJ7#199305-199604

main47043-60130iHZJ7#199908-200108

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-12021iBJ73,HZJ7#,PZJ7#199001-199101

*12-1.25PX33-21

sub90101-12175

main90101-12175iBJ73,HZJ7#199101-200108

*12-1.25PX33-21

main90114-10002iKZJ7#,LJ7#,RJ7#199001-199604

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041iKZJ7#,LJ7#,RJ7#199001-199604

main90179-12119iHZJ7#199208-200108

main94115-71200iBJ73,HZJ7#,PZJ7#199001-199208

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-60020iLJ70,73,RJ7#199001-199208

main47044-60021iLJ70,73,RJ7#199208-199305

main47044-60040iBJ73,HZJ7#,PZJ7#199001-199208

main47044-60050iLJ77199008-199208

sub47044-60051

main47044-60050iRJ73199108-199208

W(PARALLEL SEAT)

sub47044-60051

main47044-60051iRJ73199208-199305

W(PARALLEL SEAT)

sub47044-60070

sub47492-28010

main47044-60060iBJ73,HZJ7#199208-199908

main47044-60070iKZJ7#,LJ7#,RJ7#199305-199604

main47044-60080iHZJ7#199908-200108

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iHZJ7#199001-200108

main90501-20604iKZJ7#,LJ7#,RJ7#199004-199604

main90501-20604iRJ73199108-199305

W(PARALLEL SEAT)

main90501-20756iLJ70,73,RJ7#199001-199305

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-199908

RH

main90506-26014iBJ73,HZJ7#,LJ77,PZJ75,RJ73199001-199908

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iRJ73199108-199305

W(PARALLEL SEAT)

main90506-18031iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

main90506-20005iLJ70,73,RJ7#199001-199305

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12015iLJ70,73,RJ7#199001-199305

main90506-12031iRJ73199108-199305

W(PARALLEL SEAT)

main90506-12031iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iKZJ7#,LJ7#,RJ7#199001-199604

main47447-60010iHZJ7#199001-200108

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iBJ73,HZJ7#,LJ77,PZJ7#199001-199908

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-60011iBJ73,HZJ7#,LJ77,PZJ7#199001-199908

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iBJ73,HZJ7#199208-200108

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLJ70,73,RJ7#199001-199305

main47547-60020iRJ73199108-199305

W(PARALLEL SEAT)

main47547-60020iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-30100iLJ70,73,RJ7#199001-199305

main47550-60120iRJ73199108-199305

W(PARALLEL SEAT)

main47550-60120iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-35020iLJ70,73,RJ7#199001-199305

main47509-60010iBJ73199001-199511

main47509-60010iRJ73199108-199305

W(PARALLEL SEAT)

main90029-60009iKZJ7#,RJ7#199511-200108

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-30100iLJ70,73,RJ7#199001-199305

main47550-60120iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

main47550-60120iRJ73199108-199305

W(PARALLEL SEAT)

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199908

T=1.2

main90213-07010iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

main90249-08075iLJ70,73,RJ7#199001-199305

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-35040iHZJ7#199908-200108

main47611-60010iKZJ7#,RJ7#199001-199908

sub47611-35040

main47611-60010iRJ73199108-199305

W(PARALLEL SEAT)

sub47611-35040

main47612-35020iLJ70,73,RJ7#199001-199305

47612ALEVER, PARKING BRAKE SHOE, LH

main47611-35020iLJ70,73,RJ7#199001-199305

main47612-35040iHZJ7#199908-200108

main47612-60010iBJ73199001-199908

sub47612-35040

main47612-60010iRJ73199108-199305

W(PARALLEL SEAT)

sub47612-35040

47616WIRE, PARKING BRAKE, RH

main47616-26020iLJ70,73,RJ7#199001-199305

main47616-35030iHZJ7#199908-200108

main47616-60010iLJ70199001-199908

main47616-60010iRJ73199108-199305

W(PARALLEL SEAT)

47619WIRE, PARKING BRAKE, LH

main47616-26020iLJ70,73,RJ7#199001-199305

main47616-35030iHZJ7#199908-200108

main47616-60010iRJ73199108-199305

W(PARALLEL SEAT)

main47616-60010iBJ73199001-199908

47623CRANK, PARKING BRAKE BELL, NO.1

main47624-26020iLJ70,73,RJ7#199001-199305

main47624-26050iKZJ7#,LJ7#,RJ7#199004-199604

main47624-26050iRJ73199108-199305

W(PARALLEL SEAT)

main47624-60030iBJ73,HZJ7#,PZJ7#199001-199908

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20033iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

main90506-20033iRJ73199108-199305

W(PARALLEL SEAT)

main90507-23006iLJ70,73,RJ7#199001-199305

47624CRANK, PARKING BRAKE BELL, NO.2

main47625-26020iLJ70,73,RJ7#199001-199305

main47625-26050iLJ77199004-199604

main47625-26050iRJ73199108-199305

W(PARALLEL SEAT)

main47625-60030iBJ73,HZJ7#,PZJ7#199001-199908

47626PPULLEY, PARKING BRAKE SEGMENTAL

main47626-60010iBJ73,HZJ7#,LJ77,PZJ7#199001-199908

47628BRACKET, REAR BRAKE BELLCRANK

main47628-26010iLJ70,73,RJ7#199001-199305

main47628-35020iRJ73199108-199305

W(PARALLEL SEAT)

main47628-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

47633BOOT, PARKING BRAKE BELLCRANK

main47633-26010iLJ70,73,RJ7#199001-199305

main47633-35020iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-199908

main47633-35020iRJ73199108-199305

W(PARALLEL SEAT)

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-60010iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

main47643-60010iRJ73199108-199305

W(PARALLEL SEAT)

main47644-35020iLJ70,73,RJ7#199001-199305

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47643-35020iLJ70,73,RJ7#199001-199305

main47644-60010iRJ73199108-199305

W(PARALLEL SEAT)

main47644-60010iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

9011906084

main90119-06084

9014360002

main90143-60002

9020112452

main90201-12452

9020608024

main90206-08024

9161160814

main91611-60814

9328016022

main93280-16022

9411040600

main94110-40600

9616000600

main96160-00600
