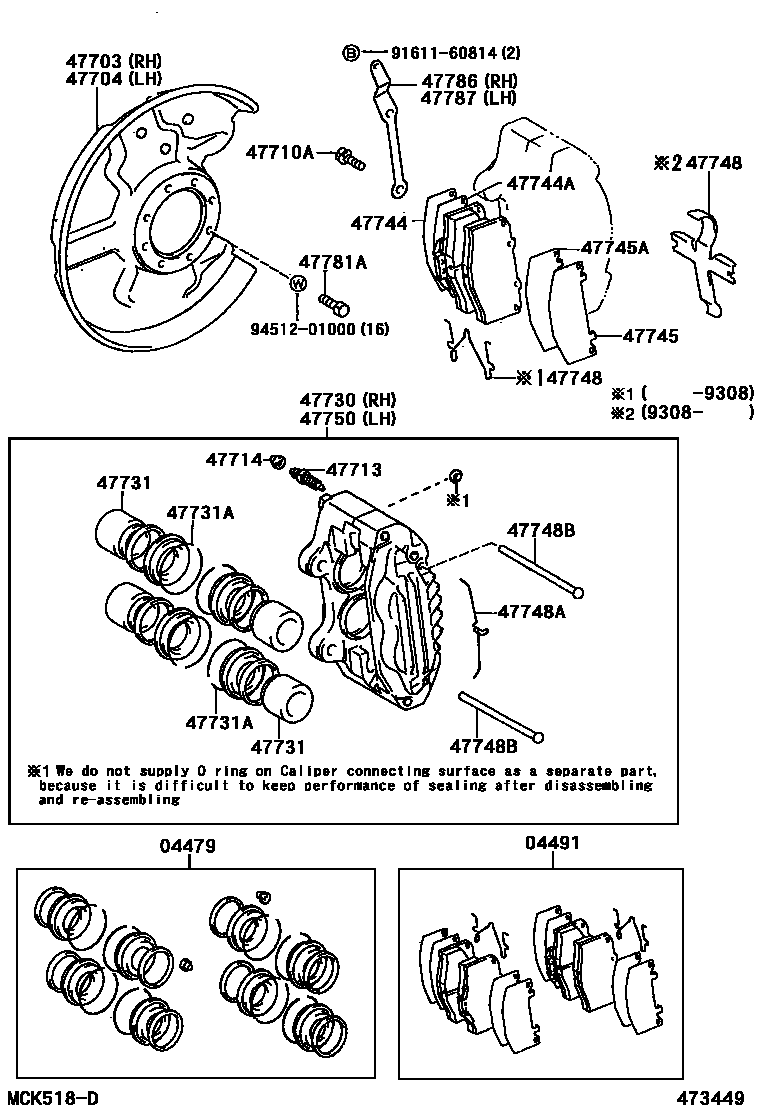

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30030iLJ70,73,RJ7#199001-199305

sub04479-30031

main04479-35010iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

main04479-35010iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

main04479-60070iHZJ7#199908-200108

04491PAD KIT, DISC BRAKE, FRONT

main04491-60080iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

sub04465-60030

main04491-60080iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199505

sub04465-60030

main04491-60110iLJ70,73,RJ7#199001-199305

sub04465-60050

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-60060iLJ70,73,RJ7#199001-199305

main47703-60070iLJ70..LX,VX;HZJ75,LJ73,PZJ75,RJ7#199001-199908

W/O(AIR SCOOP)

main47703-60080iHZJ75,PZJ75199001-199908

main47781-60100iHZJ7#199908-200108

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-60060iLJ70,73,RJ7#199001-199305

main47704-60070iBJ73,HZJ70,73,LJ77,PZJ70,73199001-199908

W/O(AIR SCOOP)

main47704-60080iHZJ75199001-199908

main47782-60100iHZJ7#199908-200108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199908

*12-1.25PX38-23

main90105-12175iHZJ7#199908-200108

*12-1.25PX35-27

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199908

main47547-60030iHZJ7#199908-200108

sub47547-60020

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35010iLJ70,73,RJ7#199001-199305

main47730-35080iLJ70,73,RJ70..LX,VX199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47730-35080iRJ73199001-199305

W(RR DISC BRAKE)

main47730-35080iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

main47730-60120iHZJ7#199908-200108

47731PISTON, FRONT DISC BRAKE

main47731-14110iHZJ7#199908-200108

main47731-30020iLJ70,73,RJ7#199001-199305

OD=42.82

main47731-35010iLJ70,73,RJ7#..LX,VX199001-199305

W(RR DISC BRAKE)

main47731-35010iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199708

main47731-35050iHZJ7#199708-199908

main47732-30010iLJ70,73,RJ7#199001-199305

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043iLJ70,73,RJ7#199001-199305

PISTON OD=33.93

main90522-48044iLJ70,73,RJ7#199001-199305

PISTON OD=42.82

main90522-48044iLJ70,73,RJ7#199001-199305

W(RR DISC BRAKE)

main90522-48044iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-35010iLJ70,73,RJ7#199001-199305

main47745-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

main47745-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47745-35020iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-35010iLJ70,73,RJ7#199001-199305

main47744-35020iRJ73199001-199305

W(RR DISC BRAKE)

main47744-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47744-35020iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35010iLJ70,73,RJ7#199001-199305

main47745-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

main47745-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47745-35020iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-35010iLJ70,73,RJ7#199001-199305

main47744-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

main47744-35020iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47744-35020iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-30013iLJ70,73,RJ7#199001-199305

main47748-60010iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

main47748-60010iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47748-60010iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199308

main47748-60040iHZJ7#199908-200108

main47748-60050iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199308-199908

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12003iLJ70,73,RJ7#199001-199305

main90468-12015iRJ73199001-199305

W(RR DISC BRAKE)

main90468-12015iRJ73199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main90468-12015iBJ73,HZJ7#,LJ77,PZJ7#199001-200108

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06006iLJ70,73,RJ7#199001-199305

main90240-06024iHZJ7#199908-200108

main90240-06158iLJ70,73,RJ70..LX,VX199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main90240-06158iRJ73199001-199305

W(RR DISC BRAKE)

main90240-06158iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35010iLJ70,73,RJ7#199001-199305

main47750-35080iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

main47750-35080iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47750-35080iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199305-199908

main47750-60120iHZJ7#199908-200108

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10166iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

sub90101-10204

47786REINFORCEMENT, DUST COVER, RH

main47786-60020iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199908

47787REINFORCEMENT, DUST COVER, LH

main47787-60020iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199908

9161160814

main91611-60814

9451201000

main94512-01000

23 parts on this diagram · 4 diagrams in section
