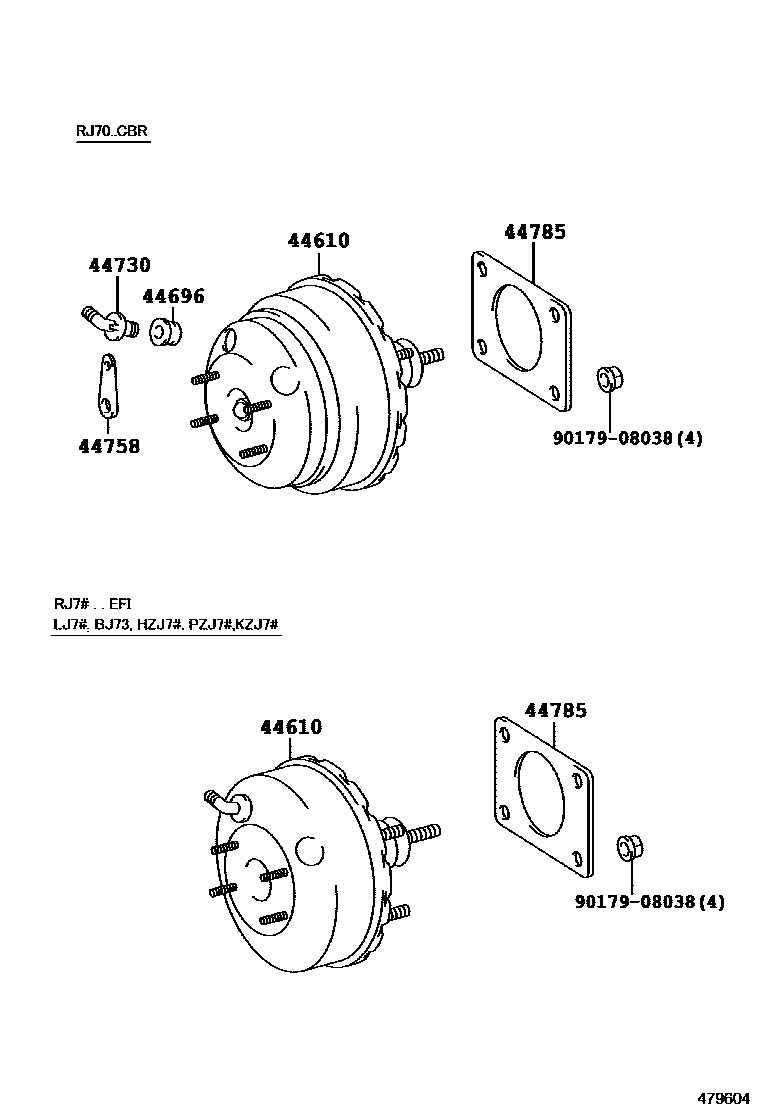

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44610BOOSTER ASSY, BRAKE

main44610-60450iRJ70..CBR199001-199305

main44610-60460iLJ70..RHD199001-199305

main44610-60540iHZJ7#,LJ7#,RJ7#199001-199908

main44610-60550iBJ73199001-199402

main44610-60850iKZJ7#199305-199604

main44610-6A150iHZJ7#199908-200108

44696GROMMET, CHECK VALVE

main90480-24439iRJ70..CBR199001-199305

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20060iRJ70..CBR199001-199305

main44730-24020iRJ7#199001-199604

main44730-60040iBJ73,HZJ7#,LJ7#,PZJ7#199001-199908

main44730-60050iHZJ7#199908-200108

44758BRACKET, VACUUM CHECK VALVE

main44758-28020iRJ70..CBR199001-199305

main44758-60040iRJ7#..EFI199001-199604

44785GASKET, BRAKE BOOSTER

main44785-35020iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

9017908038

main90179-08038

6 parts on this diagram · 6 diagrams in section
