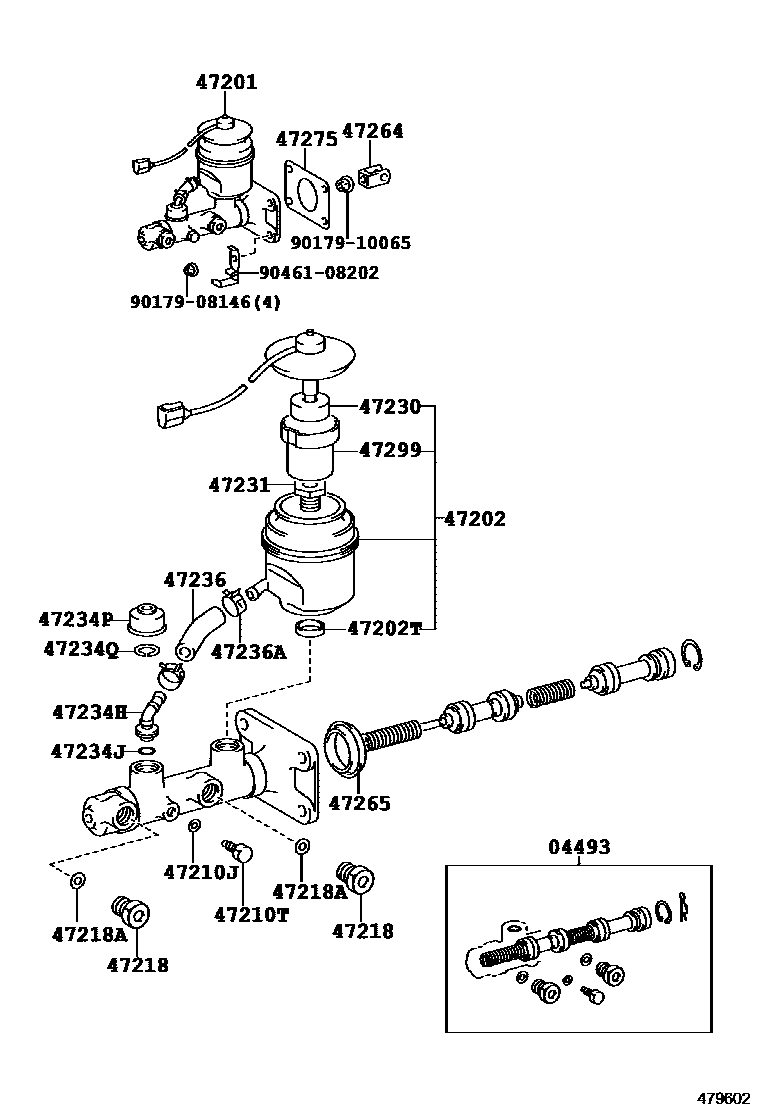

BRAKE MASTER CYLINDER

0001 1 0004 1 0005 1 0006 1 0008 1

04493CYLINDER KIT, BRAKE MASTER

main04493-60160iLJ70,73,RJ7#199001-199305

sub04493-60170

main04493-60230iLJ70,73,RJ7#..LX,VX199001-199305

W(RR DISC BRAKE)

main04493-60230iLJ70,73,RJ70..LX,VX199108-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main04493-60230iBJ73199305-199402

main04493-60270iHZJ7#,KZJ7#,LJ7#,RJ7#199108-199908

main04493-60300iHZJ7#199908-200108

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60291iLJ70,73,RJ7#..LHD199001-199305

main47201-60351iLJ70..RHD199001-199305

main47201-60420iLJ70,73,RJ70..LHD..(LX,VX)199108-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47201-60420iBJ73,HZJ7#,LJ77,PZJ7#199001-199305

W(RR DISC BRAKE)

main47201-60420iBJ73199305-199402

main47201-60430iLJ70..RHD199001-199305

W(RR DISC BRAKE)

main47201-60440iPZJ75199001-199108

SWEDEN SPEC

main47201-60511iKZJ7#199305-199405

main47201-60520iHZJ7#,PZJ75199108-199208

sub47201-60521

main47201-60521iHZJ7#199208-199405

sub47201-60600

main47201-60590iKZJ7#199405-199604

main47201-60600iHZJ7#,LJ7#,RJ7#199405-199908

main47201-60831iHZJ7#199908-200108

sub47201-60832

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-60160iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199402

main47220-35010iHZJ7#199908-200108

sub47220-60080

main47220-60020iHZJ7#,PZJ75199108-199208

sub47220-60030

main47220-60030iHZJ7#,KZJ7#,LJ7#,RJ7#199208-199405

main47220-60050iHZJ7#,KZJ7#,LJ7#,RJ7#199405-199908

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90562-18151iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199402

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBJ73199001-199402

main90109-06077iHZJ7#,KZJ7#,LJ7#,RJ7#199108-200108

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040iBJ73,LJ7#,RJ7#199001-199402

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iBJ73199001-199402

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iHZJ7#199908-200108

main47230-20100iHZJ7#,KZJ7#,LJ7#,RJ7#199208-199405

sub47230-47090

main47230-20140iHZJ7#,KZJ7#,LJ7#,RJ7#199405-199908

main47230-24010iHZJ7#,PZJ75199108-199208

sub47230-47090

main84460-12070iBJ73,LJ7#,RJ7#199001-199402

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ73199001-199402

47234HELBOW(FOR RESERVOIR TUBE)

main90407-10004iBJ73,LJ7#,RJ7#199001-199402

47234JRING, O(FOR RESERVOIR TUBE)

main90301-14001iBJ73,LJ7#,RJ7#199001-199402

47234PBOOT(FOR RESERVOIR TUBE)

main47265-20060iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199402

47234QRING, SNAP(FOR RESERVOIR TUBE)

main96151-02000iBJ73,LJ7#,RJ7#199001-199402

47236TUBE, RESERVOIR BRAKE

main47234-14010iBJ73,LJ7#,RJ7#199001-199402

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199402

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLJ70,73,RJ7#199001-199309

main47264-28010iBJ73,HZJ7#,LJ7#,RJ7#199309-200108

main47264-30040iLJ70,73,RJ70..LX,VX199001-199305

W(RR DISC BRAKE)

main47264-30040iBJ73,LJ77199108-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47264-50010iKZJ7#199305-199604

47265BOOT, MASTER CYLINDER

main47265-20050iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199405

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iHZJ7#199908-200108

main47275-22010iLJ70,73,RJ7#199001-199305

main47275-24010iRJ73199001-199305

W(RR DISC BRAKE)

main47275-24010iRJ73199108-199305

W(RR DISC BRAKE OR PARALLEL SEAT)

main47275-24010iBJ73,HZJ71,74,78,79,LJ77199001-200108

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iHZJ7#199108-200108

main47299-32010iBJ73199001-199402

9017908146

main90179-08146

9017910065

main90179-10065

9046108202

main90461-08202

23 parts on this diagram · 5 diagrams in section
