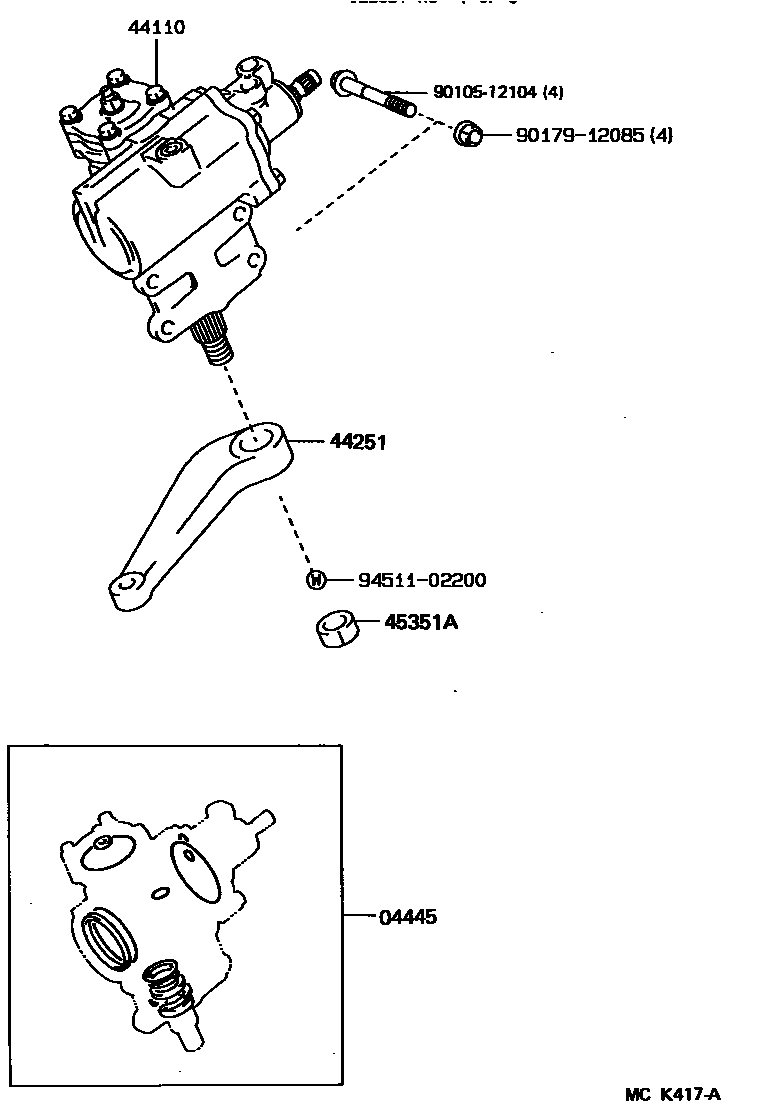

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-60040iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199208

main04445-60070iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199208-200108

44110GEAR ASSY, POWER STEERING

main44110-60240iLJ70..RHD199001-199208

main44110-60250iLJ7#..LHD199001-199208

main44110-60270iRJ7#199001-199208

main44110-60290iBJ73,HZJ7#,PZJ7#199001-199208

main44110-60320iLJ70..RHD199208-199604

main44110-60330iLJ7#..LHD199208-199604

main44110-60350iRJ7#199208-199604

main44110-60370iBJ73,HZJ7#199208-199908

main44110-60400iHZJ7#199908-200108

44251ARM, PITMAN

main45411-60120iBJ73,HZJ7#,PZJ7#199001-199908

main45411-60240iRJ7#199001-199604

main45411-60250iLJ70..RHD199001-199305

main45411-60260iLJ7#..LHD199001-199305

main45411-60310iKZJ70..RHD199305-199604

main45411-60320iKZJ7#,LJ7#..LHD199305-199604

main45411-60340iHZJ7#199908-200108

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

9010512104

main90105-12104

9017912085

main90179-12085

9451102200

main94511-02200

7 parts on this diagram · 5 diagrams in section
