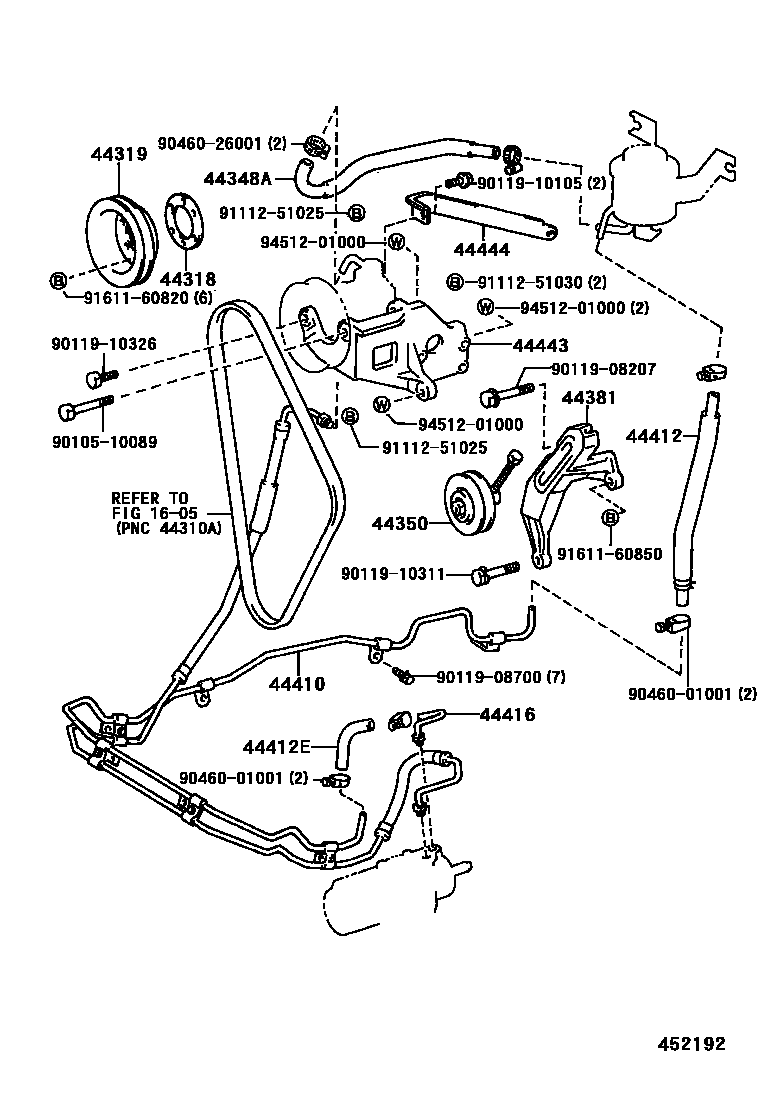

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main13478-60010iBJ73199001-199402

main44318-35010iLJ7#199001-199501

44319PULLEY, VANE PUMP DRIVE

main13477-60030iBJ73199001-199402

main44319-35030iLJ7#199001-199501

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60050iRJ70..CBR199001-199305

main44348-60101iBJ73199001-199402

main44348-60110iRJ7#..EFI199001-199604

main44348-60120iHZJ7#,PZJ7#199001-200108

main44348-60140iLJ7#199001-199501

main44348-60190iKZJ7#199305-199604

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20020iRJ7#199001-199510

sub44350-60020

main44350-35010iLJ7#199001-199501

main44350-60010iBJ73199001-199402

main44350-60020iRJ7#199510-199604

sub44350-60021

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-60020iBJ73199001-199402

44410TUBE ASSY, PRESSURE FEED

main44410-60091iBJ73199001-199402

main44410-60310iLJ7#199001-199501

main44410-60360iKZJ70..RHD199305-199604

44412HOSE, RETURN

main44412-60121iBJ73199001-199402

44412EHOSE, RETURN, NO.2

main44412-60090iBJ73199001-199402

sub90445-18147

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60100iBJ73199001-199402

main44416-60110iRJ7#199001-199604

main44416-60240iHZJ7#,PZJ7#199001-200108

main44416-60270iLJ70..RHD199001-199004

sub44416-60271

main44416-60271iLJ70..RHD199004-199305

main44416-60280iLJ7#..LHD199001-199501

44443BRACKET, PUMP

main44443-35020iRJ7#199001-199604

main44443-60060iBJ73199001-199402

main44443-60090iLJ7#199001-199501

44444STAY, PUMP, REAR

main44444-60030iBJ73199001-199402

9010510089

main90105-10089

9011908207

main90119-08207

9011908700

main90119-08700

9011910105

main90119-10105

9011910311

main90119-10311

9011910326

main90119-10326

9046001001

main90460-01001

9046026001

main90460-26001

9111251025

main91112-51025

9111251030

main91112-51030

9161160820

main91611-60820

9161160850

main91611-60850

9451201000

main94512-01000

25 parts on this diagram · 8 diagrams in section
