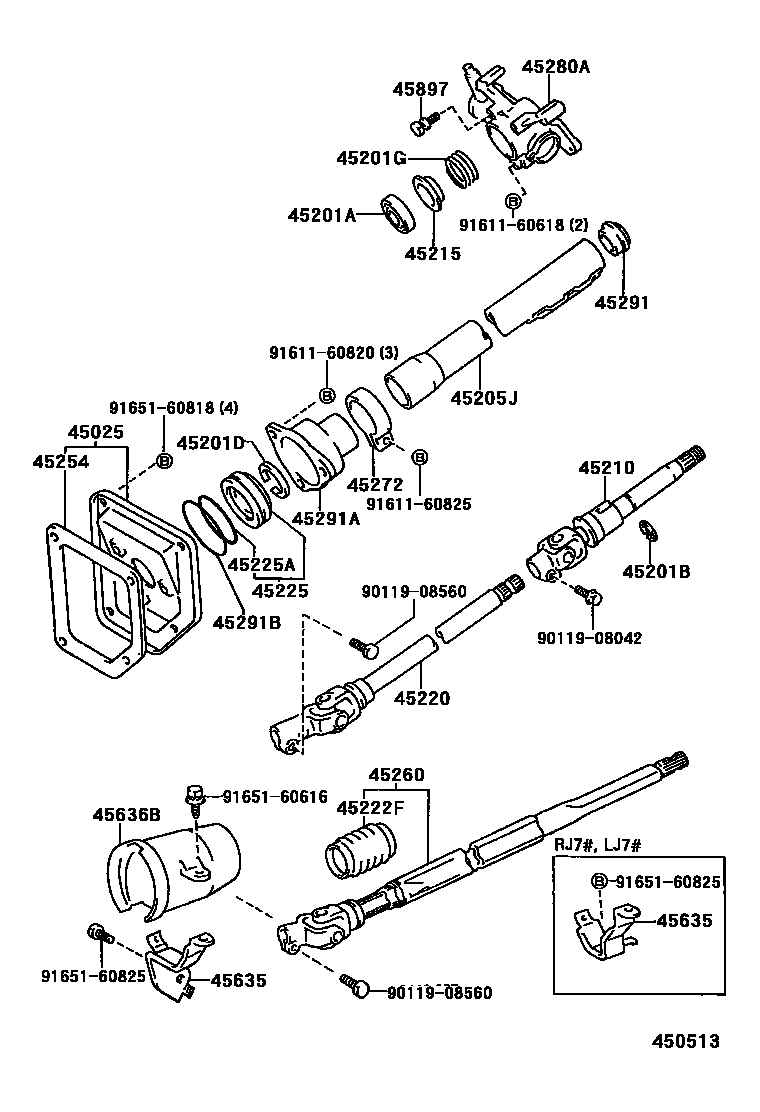

STEERING COLUMN & SHAFT

0001 1TILT STEERING(NON-COLLAPSIBLE0002 1TILT STEERING(COLLAPSIBLE) 0003 1TILT STEERING(COLLAPSIBLE)

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-60050iRJ7#199305-199604

main45025-60050iHZJ7#,LJ7#,PZJ7#,RJ7#199001-199305

W(TILT STEERING)

main45025-60060iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

main45025-60060iRJ7#199305-199604

W(COLLAPSIBLE TILT STEERING)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-28001iBJ73199001-200108

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iHZJ7#199001-200108

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iHZJ7#199001-200108

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iHZJ7#199001-200108

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-60120iHZJ7#,LJ7#,PZJ7#,RJ7#199001-199305

W(TILT STEERING)

main45205-60120iRJ7#199305-199604

main45870-60050iBJ73,HZJ7#,KZJ7#,LJ7#199001-200108

main45870-60050iRJ7#199305-199604

W(COLLAPSIBLE TILT STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-60060iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

sub45210-60061

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60090iHZJ7#,LJ7#,PZJ7#,RJ7#199001-199305

W(TILT STEERING)

sub45220-60091

main45220-60100iHZJ7#199001-200108

sub45220-60101

main45220-60100iKZJ7#199305-199604

W(COLLAPSIBLE TILT STEERING)

sub45220-60101

45222FCOVER, DUST

main45222-60031iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

45225BLOCK, BEARING

main45225-60010iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

45225ARING, O(FOR BEARING BLOCK)

main96711-24053iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

45254SHIELD, STEERING COLUMN HOLE

main45254-60050iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#199001-200108

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-60090iBJ73,HZJ7#199001-199908

main45260-60100iHZJ7#199908-200108

main45260-60110iKZJ7#,LJ7#,RJ7#199001-199604

45272CLAMP, STEERING COLUMN, LOWER

main45272-35020iRJ7#199001-199604

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60181iBJ73,HZJ7#,KZJ7#,LJ7#199305-199501

main45280-60201iBJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL199001-199305

sub45280-60181

main45280-60280iRJ7#..EFI199001-199305

sub45280-60380

main45280-60281iHZJ7#200008-200108

sub45280-60381

main45280-60380iRJ7#199305-200008

sub45280-60381

main45280-60381iHZJ7#199908-200008

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iBJ73,HZJ7#,KZJ7#,LJ7#199001-200108

main45282-22010iRJ7#199305-199604

W(COLLAPSIBLE TILT STEERING)

main45282-60010iHZJ7#,LJ7#,PZJ7#,RJ7#199001-199305

W(TILT STEERING)

main45282-60010iRJ7#199305-199604

45291ASUPPORT, STEERING COLUMN TUBE

main45291-60041iHZJ7#,LJ7#,PZJ7#,RJ7#..LX,STD199001-199604

45291BRING, O(FOR STEERING COLUMN TUBE SUPPORT)

main90301-60122iBJ73,HZJ7#,KZJ7#,LJ7#199001-200108

main90301-60122iRJ7#199305-199604

W(COLLAPSIBLE TILT STEERING)

main90301-61002iRJ7#199305-199604

main90301-61002iHZJ7#,LJ7#,PZJ7#,RJ7#199001-199305

W(TILT STEERING)

45635SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

main45635-60060iHZJ7#199001-200108

main45635-60070iKZJ70..RHD199001-199604

main45635-60080iKZJ7#,LJ7#,RJ7#..LHD199001-199604

45636BPROTECTOR, INTERMEDIATE LINK JOINT

main45636-60051iKZJ70..RHD199001-199604

main45636-60061iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD199001-200108

45897BOLT, STEERING LOCK SET

main45897-12030iHZJ7#199908-200108

main45897-14010iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

sub45897-12030

9011908042

main90119-08042

9011908560

main90119-08560

9161160618

main91611-60618

9161160820

main91611-60820

9161160825

main91611-60825

9165160616

main91651-60616

9165160818

main91651-60818

9165160825

main91651-60825

30 parts on this diagram · 3 diagrams in section
