FRONT AXLE HOUSING & DIFFERENTIAL

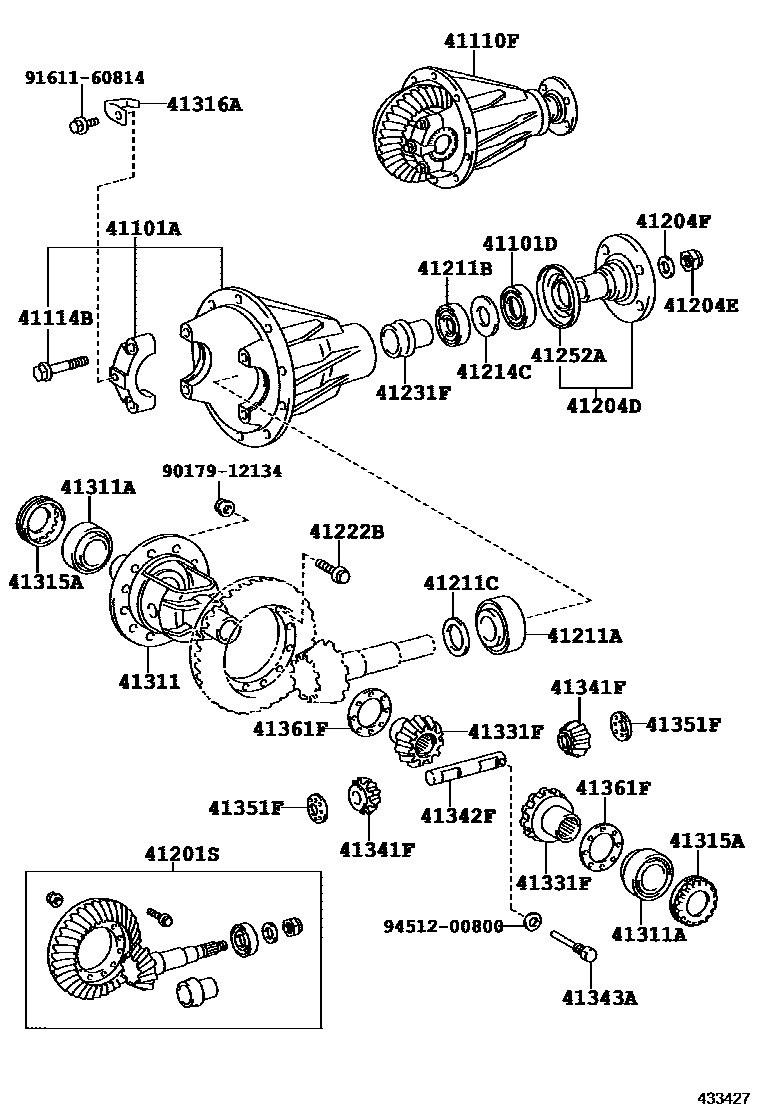

Parts diagram
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
main41101-60031i199001-199604
main41101-60071i199001-199402
main41101-60090i199001-200108
sub41101-60091
main41101-60110i199001-200108
W(DIFFERENTIAL LOCK)
sub41102-60010
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
main90311-38035i199001-199604
sub90311-38047
main90311-38047i199512-200108
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
main41110-60092i199001-199501
*FGR=39:8=4.875
main41110-60141i199001-199604
*FGR=41:9=4.555
main41110-60290i199001-199908
*FGR=37:9=4.111
sub41110-60291
main41110-60290i199001-199208
*FGR=37:9=4.111,*AXC=K082,K085
sub41110-60291
main41110-60400i199001-199208
*FGR=41:9=4.555
main41110-60400i199001-199108
*FGR=41:9=4.555,*AXC=G252,G255
main41110-60460i199001-199402
*FGR=41:9=4.555
main41110-60540i199001-199908
*FGR=37:9=4.111,*AXC=K084,W(*DL)
sub41110-60541
main41110-60560i199001-199208
*FGR=41:9=4.555,*AXC=G254,W(*DL)
main41110-60600i199305-199604
*FGR=43:10=4.300
main41110-60830i199908-200108
*FGR=43:10=4.300
sub41110-60831
main41110-6A310i199908-200108
*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)
sub41110-6A311
sub41534-60030
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
main90105-12053i199001-200108
41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT
main41201-69265i199001-199908
*FGR=37:9=4.111
sub41201-69266
sub41204-35081
sub41214-60011
main41201-69315i199001-199402
*FGR=41:9=4.556
sub41201-69365
main41201-69325i199001-199604
*FGR=41:9=4.556
sub41201-69206
sub41204-35081
sub41214-60011
main41201-69335i199001-199208
*FGR=41:9=4.556
sub41201-69336
sub41204-35081
sub41214-60011
main41201-69345i199001-199501
*FGR=39:8=4.875
sub41201-69187
sub41204-35081
sub41214-60011
main41201-69435i199001-199908
*FGR=37:9=4.111,W(DIFFERENTIAL LOCK)
sub41201-69436
sub41204-35081
sub41214-60011
main41201-69445i199305-199604
*FGR=43:10=4.300
sub41201-80170
sub41204-35081
sub41214-60011
main41201-80130i199908-200108
*FGR=43:10=4.300
sub41201-80172
sub41204-35081
sub41214-60011
main41201-80131i199908-200108
*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)
sub41201-80172
sub41204-35081
sub41214-60011
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
main41204-35040i199001-199801
main41204-35080i199602-199908
W(DIFFERENTIAL LOCK)
main41204-35080i199511-200108
main41204-60030i199001-199402
sub41204-60050
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
main90179-20001i199001-199308
main90179-20018i199308-200108
main90179-22011i199001-199402
sub90179-22016
41204FWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT)
main90201-20005i199001-199908
main90201-22007i199001-199402
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
main90366-35028i199001-199609
sub90366-35087
main90366-35044i199001-199604
main90366-35087i199609-200108
main90366-40059i199001-199402
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
main90366-30022i199001-199604
sub90366-30078
main90366-30025i199001-199711
sub90366-30067
main90366-30038i199001-199402
main90366-30067i199711-200108
41211CGEAR, DIFFERENTIAL RING
main90201-35497i199001-200108
OD=47,T=1.70
main90201-35498i199001-200108
OD=47,T=1.73
main90201-35499i199001-200108
OD=47,T=1.76
main90201-35500i199001-200108
OD=47,T=1.79
main90201-35501i199001-200108
OD=47,T=1.82
main90201-35502i199001-200108
OD=47,T=1.85
main90201-35503i199001-200108
OD=47,T=1.88
main90201-35504i199001-200108
OD=47,T=1.91
main90201-35505i199001-200108
OD=47,T=1.94
main90201-35506i199001-200108
OD=47,T=1.97
main90201-35507i199001-200108
OD=47,T=2.00
main90201-35508i199001-200108
OD=47,T=2.03
main90201-35509i199001-200108
OD=47,T=2.06
main90201-35510i199001-200108
OD=47,T=2.09
main90201-35511i199001-200108
OD=47,T=2.12
main90201-35512i199001-200108
OD=47,T=2.15
main90201-35513i199001-200108
OD=47,T=2.18
main90201-35514i199001-200108
OD=47,T=2.21
main90201-35515i199001-200108
OD=47,T=2.24,MARK 01
main90201-35516i199001-200108
OD=47,T=2.27,MARK 02
main90201-35517i199001-200108
OD=47,T=2.30,MARK 03
main90201-35518i199001-200108
OD=47,T=2.33,MARK 04
main90201-40551i199001-199402
T=1.05
sub90564-40004
main90201-40552i199001-199402
T=1.10
sub90564-40007
main90201-40553i199001-199402
T=1.15
sub90564-40009
main90201-40554i199001-199402
T=1.20
sub90564-40011
main90201-40555i199001-199402
T=1.25
sub90564-40013
main90201-40556i199001-199402
T=1.30
sub90564-40015
main90201-40557i199001-199402
T=1.35
sub90564-40017
main90201-40558i199001-199402
T=1.40
sub90564-40019
main90201-40559i199001-199402
T=1.45
sub90564-40021
main90201-40560i199001-199402
T=1.50
sub90564-40023
main90201-40561i199001-199402
T=1.55
sub90564-40025
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
main41214-26010i199001-199402
main41214-60010i199001-200108
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main41226-35010i199001-199402
main90101-11353i199001-200108
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
main41231-24010i199001-200108
main41231-40011i199001-199604
main41231-60030i199001-199402
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
main41252-35010i199001-199303
sub41252-35020
main41252-35020i199303-199908
main41252-35040i199602-199908
W(DIFFERENTIAL LOCK)
main41252-35040i199908-200108
41311CASE, FRONT DIFFERENTIAL
main41301-60060i199001-200108
W(DIFFERENTIAL LOCK)
sub41301-60061
main41311-40020i199001-199604
sub41311-40021
sub90105-11063
main41311-60060i199001-200108
sub41311-60061
sub90105-11063
main41311-60070i199001-199402
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
main90366-50007i199001-200108
W(DIFFERENTIAL LOCK),RH
main90366-50007i199908-200108
LH
main90366-75001i199001-200108
W(DIFFERENTIAL LOCK),LH
main90366-75001i199908-200108
RH
main90368-45066i199001-199604
main90368-50024i199001-199402
41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING
main41315-30010i199001-199402
main41315-35010i199001-199604
main41315-35020i199001-200108
W(DIFFERENTIAL LOCK),RH
main41315-60010i199001-200108
W(DIFFERENTIAL LOCK),LH
41316ALOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT
main41316-30010i199001-199402
main41316-35010i199001-200108
41331FGEAR, FRONT DIFFERENTIAL SIDE
main41331-25010i199001-199402
main41331-35011i199001-200108
main41331-35040i199001-200108
W(DIFFERENTIAL LOCK),RH
sub41039-34060
sub41039-34080
main41331-60040i199001-200108
W(DIFFERENTIAL LOCK),LH
sub41039-34060
41341FPINION, FRONT DIFFERENTIAL
main41341-25010i199001-199402
main41341-30020i199001-200005
W(DIFFERENTIAL LOCK)
sub41341-30050
main41341-35020i199001-200108
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-39610i199001-200108
main41342-55010i199001-199402
41343APIN, FRONT DIFFERENTIAL PINION SHAFT
main41343-60030i199001-199402
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-25010i199001-199402
main41351-30052i199001-200108
main41351-30060i199001-200108
W(DIFFERENTIAL LOCK)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-40021i199001-200108
T=1.6
main41361-60010i199001-199402
T=1.60
sub41361-60011
main41361-60020i199001-199402
T=1.75
sub41361-60021
main41361-60030i199001-199402
T=1.90
sub41361-60031
main41361-60040i199001-199402
T=2.05
sub41361-60041
main41361-60290i199001-200108
T=0.90,W(DIFFERENTIAL LOCK)
main41361-60300i199001-200108
T=1.00,W(DIFFERENTIAL LOCK)
main41361-60310i199001-200108
T=1.10,W(DIFFERENTIAL LOCK)
main41361-60320i199001-200108
T=1.20,W(DIFFERENTIAL LOCK)
main41361-60330i199001-200108
T=1.30,W(DIFFERENTIAL LOCK)
main41362-40021i199001-200108
T=1.7
main41363-40021i199001-200108
T=1.8
9017912134
main90179-12134
9161160814
main91611-60814
9451200800
main94512-00800

28 parts on this diagram · 5 diagrams in section
