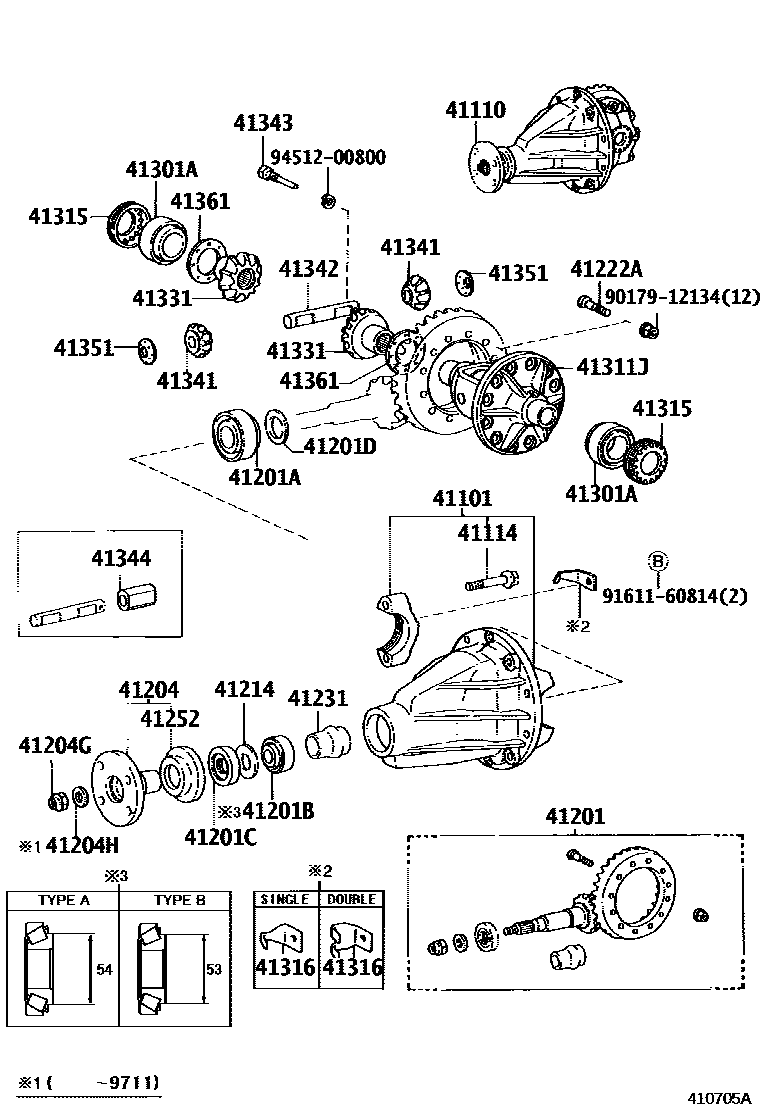

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
sub41101-35170
sub41101-60160
sub41101-60180
sub41101-25020
W(DIFFERENTIAL LOCK)
W(DIFFERENTIAL LOCK)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:10=4.300,*AXC=G285,W(LSD)
sub41110-3D040
*FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=G284
*FGR=43:10=4.300,*AXC=G285,W(LSD)
sub41110-3D041
*FGR=41:9=4.555
*FGR=37:9=4.111,W(DIFFERENTIAL LOCK) & AXLE CODE=K084
sub41110-60501
*FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & AXLE CODE=G254
*FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & AXLE CODE=G974
*FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & AXLE CODE=G254
*FGR=39:8=4.875,W(DIFFERENTIAL LOCK)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
W(DIFFERENTIAL LOCK)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:9=4.556,*AXC=G974,G975
sub41201-80059
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
T=1.05
T=1.075
T=1.10
T=1.125
T=1.15
T=1.175
T=1.20
T=1.225
T=1.25
T=1.275
T=1.30
T=1.325
T=1.35
T=1.375
T=1.40
T=1.425
T=1.45
T=1.475
T=1.50
T=1.525
T=1.55
41204HWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
W(DIFFERENTIAL LOCK)
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41311JCASE, REAR DIFFERENTIAL
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
W(DIFFERENTIAL LOCK),RH
W(DIFFERENTIAL LOCK),LH
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
W(LSD)
W(DIFFERENTIAL LOCK)
W(LSD)
W(DIFFERENTIAL LOCK)
41342SHAFT, REAR DIFFERENTIAL PINION
W(DIFFERENTIAL LOCK),L=136.0
W(DIFFERENTIAL LOCK),L=60.5
41343PIN, REAR DIFFERENTIAL PINION SHAFT
W(DIFFERENTIAL LOCK)
41344SPACER, DIFFERENTIAL PINION SHAFT
H=29.8
H=30.2
H=30.6
H=29.0
H=29.4
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(DIFFERENTIAL LOCK)
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.9
T=1.0
T=1.1
T=1.2
T=1.3
T=1.60
T=1.75
T=1.90
T=2.05
T=0.90
T=0.90,W(DIFFERENTIAL LOCK)
T=1.00,W(DIFFERENTIAL LOCK)
T=1.00
T=1.10,W(DIFFERENTIAL LOCK)
T=1.10
T=1.20
T=1.20,W(DIFFERENTIAL LOCK)
T=1.30,W(DIFFERENTIAL LOCK)
T=1.30
T=2.20,MARK 1,W(LSD)
T=2.26,MARK 2,W(LSD)
T=2.32,MARK 3,W(LSD)
T=2.38,MARK 4,W(LSD)
T=2.44,MARK 5,W(LSD)
T=2.50,MARK 6,W(LSD)
T=2.56,MARK 7,W(LSD)
T=2.62,MARK 8,W(LSD)
T=1.55
T=1.65
T=1.70
T=1.80
T=1.85
T=1.95
T=2.00
T=2.10
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
T=2.000
T=2.050
T=2.100
T=1.550,W(DEFERENTIAL LOCK)
T=1.600,W(DEFERENTIAL LOCK)
T=1.650,W(DEFERENTIAL LOCK)
T=1.700,W(DEFERENTIAL LOCK)
T=1.750,W(DEFERENTIAL LOCK)
T=1.800,W(DEFERENTIAL LOCK)
T=1.850,W(DEFERENTIAL LOCK)
T=1.900,W(DEFERENTIAL LOCK)
T=1.950,W(DEFERENTIAL LOCK)
T=2.000,W(DEFERENTIAL LOCK)
T=2.050,W(DEFERENTIAL LOCK)
T=2.100,W(DEFERENTIAL LOCK)
9017912134
main90179-12134
9161160814
main91611-60814
9451200800
main94512-00800
30 parts on this diagram · 12 diagrams in section
