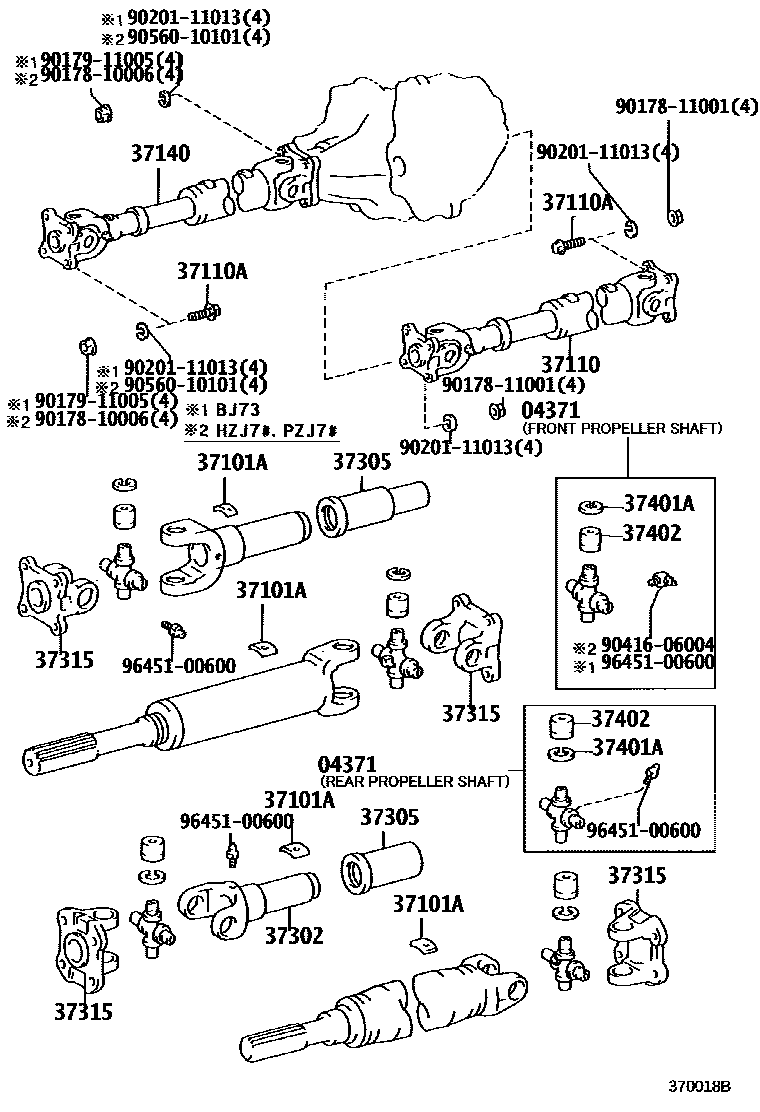

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
*597
*596
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7
20G,L=41.4
30G,L=62.2
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
16G,L=33.2
18G,L=37.3
22G,L=45.6
24G,L=49.7
26G,L=53.9
28G,L=58.1
4G,T=1.6
8G,T=1.6
12G,T=4.5
16G,T=4.5
20G,T=4.5
24G,T=4.5,L=25.1
28G,T=6,L=22.7
32G,T=6,L=24.3
30G,T=4.5,L=27.4
32G,T=4.5,L=29.2
34G,T=4.5,L=31.0
36G,T=4.5,L=32.9
38G,T=4.5,L=34.7
40G,T=4.5,L=36.5
42G,T=4.5,L=38.4
44G,T=4.5,L=40.2
46G,T=4.5,L=42.0
48G,T=4.5,L=43.8
50G,T=4.5,L=45.7
36G,L=23.1,T=8.0
40G,L=25.6
44G,L=22.6
48G,L=24.6
52G,L=26.7
56G,L=28.7
60G,L=28.7
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
*10-1.00PX27-13,RR
*10-1.00PX27-13,FR
*10-1.00PX27-13
*10-1.00PX29-15
*11-1.00PX28-16,FR
*11-1.00PX28-16,RR
*11-1.00PX28-16
*11-1.00PX28-16
37140SHAFT ASSY, PROPELLER, FRONT
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
FRONT
REAR
REAR
FRONT
37305COVER SUB-ASSY, SLIDING SHAFT DUST
REAR
FRONT
REAR
FRONT
FRONT
37315YOKE, UNIVERSAL JOINT FLANGE
FRONT
REAR
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,NO MARK
T=2.35,BROWN
T=2.37,BLUE
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK 9
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
T=2.19,MARK D
T=2.21,MARK E
T=2.23,MARK F
T=2.25,MARK G
T=2.27,MARK H
T=2.125,MARK 1,FR
T=2.125,MARK 1,RR
T=2.125,MARK 1
T=2.175,MARK 2
T=2.175,MARK 2,FR
T=2.175,MARK 2,RR
T=2.225,MARK 3
T=2.225,MARK 3,RR
T=2.225,MARK 3,FR
T=2.275,MARK 4,FR
T=2.275,MARK 4
T=2.275,MARK 4,RR
T=2.325,MARK 5,RR
T=2.325,MARK 5
T=2.325,MARK 5,FR
T=2.375,MARK 6,FR
T=2.375,MARK 6
T=2.375,MARK 6,RR
T=2.425,MARK 7,FR
T=2.425,MARK 7
T=2.425,MARK 7,RR
T=2.475,MARK 8,RR
T=2.475,MARK 8,FR
T=2.475,MARK 8
T=2.00,NO MARK
T=2.00,NO MARK,REAR
T=2.00,NO MARK,FR
T=2.03,BROWN
T=2.03,BROWN,REAR
T=2.03,BROWN,FR
T=2.06,BLUE,REAR
T=2.06,BLUE
T=2.06,BLUE,FR
T=2.09,NO MARK,REAR
T=2.09,NO MARK,FR
T=2.09,NO MARK
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
REAR
FRONT
FR. PROPELLER SHAFT
RR. PROPELLER SHAFT
FRONT, WHITE PAINTED
*597
REAR, WHITE PAINTED
*599
9017810006
main90178-10006
9017811001
main90178-11001
9017911005
main90179-11005
9020111013
main90201-11013
9041606004
main90416-06004
9056010101
main90560-10101
9645100600
main96451-00600
17 parts on this diagram · 2 diagrams in section
