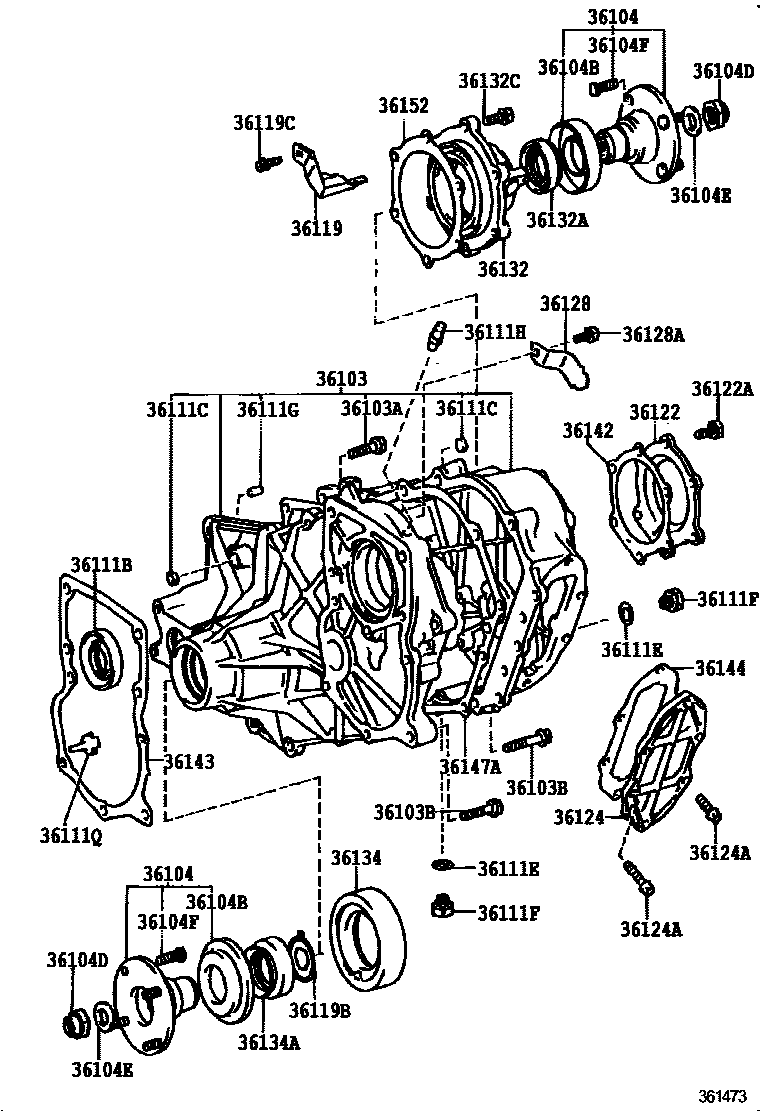

TRANSFER CASE & EXTENSION HOUSING
36103CASE SUB-ASSY, TRANSFER
W(*ELC)
W(*ELC)
36103ABOLT (FOR TRANSFER CASE)
*10-1.25PX35-35
*10-1.25PX40-40
*10-1.25PX30-30
*10-1.25PX40-30
36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)
*12-1.25PX128-30
*12-1.25PX93-30
*12-1.25PX93-30
*12-1.25PX173-30
*10-1.25PX40-30
*10-1.25PX40-30
*12-1.25PX40-30
36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
REAR
REAR
FRONT
FRONT
36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
FRONT
REAR
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
FRONT
FRONT
REAR
REAR
36111BSEAL, OIL (FOR TRANSFER CASE)
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
NO.1
FILLER PLUG
DRAIN PLUG
NO.2
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=24,0D=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36119RECEIVER, TRANSFER OIL, NO.1
sub36119-60011
36119BRECEIVER, TRANSFER OIL, NO.2
36119CBOLT (FOR TRANSFER OIL RECEIVER NO.1)
*6-1.00PX10-10
36122COVER, TRANSFER CASE, NO.2
36124COVER, TRANSFER POWER TAKE-OFF
36124ABOLT (FOR TRANSFER POWER TAKE-OFF COVER)
*8-1.25PX30-23.5
*8-1.25PX30-30
36128DEFLECTOR, BREATHER OIL
36132RETAINER, OUTPUT SHAFT BEARING, REAR NO.1
36132ASEAL, OIL (FOR OUTPUT SHAFT RETAINER)
OD=62
OD=65
36132CBOLT (FOR OUTPUT SHAFT BEARING RETAINER REAR NO.1)
36134RETAINER, OUTPUT SHAFT BEARING, FRONT
36134ASEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
sub90311-48022
36142GASKET, TRANSFER COVER
36143GASKET, TRANSFER CASE, FRONT
36144GASKET, TRANSFER POWER TAKE-OFF COVER
36147AGASKET, TRANSFER CASE
36152GASKET, OUTPUT SHAFT BEARING RETAINER
34 parts on this diagram · 2 diagrams in section
