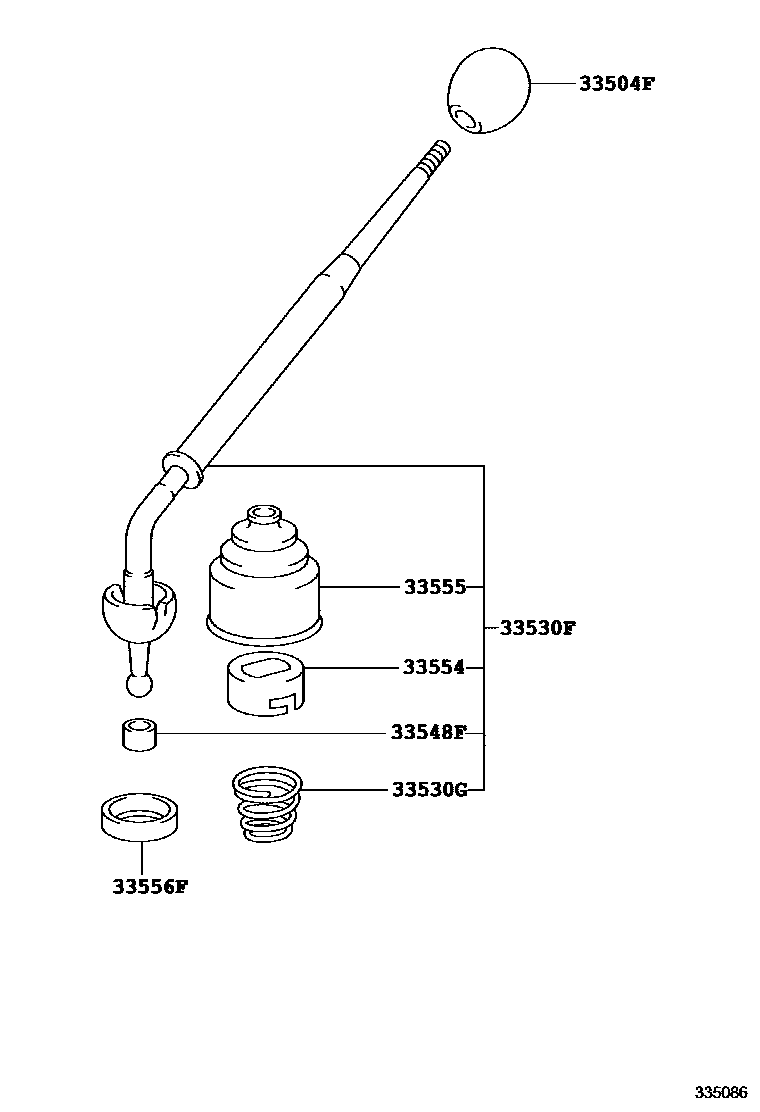

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22111-13iHZJ75,KZJ70..PIC,SOT199001-199501

BLUISH GRAY,TRIM1#

sub33504-14050¥3,000

sub33504-22111¥1,950

main33504-22111-56iHZJ75,LJ70,PZJ75..PIC,SOT199001-199501

SABLE,TRIM4#

sub33504-14050¥3,000

sub33504-22111¥1,950

main33504-24010-48iHZJ7#,KZJ7#,RJ7#199305-199908

GRAY,TRIM1#

sub33504-24010¥1,710

main33504-24010-59iBJ73,HZJ7#,KZJ7#,LJ7#,RJ7#..HT199305-199501

SABLE,TRIM4#

sub33504-24010¥1,710

main33504-24010-B1iHZJ7#199908-200108

SHADOW GRAY,TRIM1#

sub33504-24010¥1,710

main33504-24010-E3iHZJ7#,KZJ7#,RJ7#199501-199908

OAK,TRIM4#

sub33504-24010¥1,710

main33504-24010-E8iHZJ7#199908-200108

SANDAL WOOD,TRIM4#

sub33504-24010¥1,710

main33504-60060-03iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT199001-199305

BLUISH GRAY,TRIM1#

sub33504-60060¥4,950

sub33504-24010¥1,710

main33504-60060-06iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT199001-199305

SABLE,TRIM4#

sub33504-60060¥4,950

sub33504-24010¥1,710

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60100iBJ73¥9,200199001-199402

main33530-60111iLJ70..RHD¥9,400199001-199604

main33530-60121iKZJ7#,LJ7#,RJ7#..LHD¥9,400199001-199604

main33530-60220iHZJ7#¥10,700199001-199908

main33530-60260iPZJ7#¥9,400199001-199208

main33530-60460iHZJ7#¥11,400199908-200108

sub33530-60461

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26005iKZJ7#,LJ7#,RJ7#¥240199001-199604

main90502-26008iHZJ7#¥190199908-200108

sub90502-26009¥120

main90502-29001iBJ73,HZJ7#¥460199001-199002

sub90502-29002¥350

main90502-29002iBJ73,HZJ7#¥350199002-199908

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iHZJ7#¥270199001-200108

main33548-35010iLJ7#,PZJ75,RJ7#¥460199109-199203

sub33548-31010¥270

main33548-60020iBJ73,HZJ7#¥400199001-199908

33554CAP, SHIFT LEVER

main33554-30012iHZJ7#¥750199001-200108

main33554-60021iBJ73,HZJ7#¥1,710199001-199908

33555BOOT, SHIFT LEVER

main33555-55011iBJ73,HZJ7#¥810199001-199908

main33555-60030iKZJ7#,LJ7#,RJ7#¥580199001-200108

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33505-60020iBJ73,HZJ7#¥3,090199001-199908

7 parts on this diagram · 4 diagrams in section
