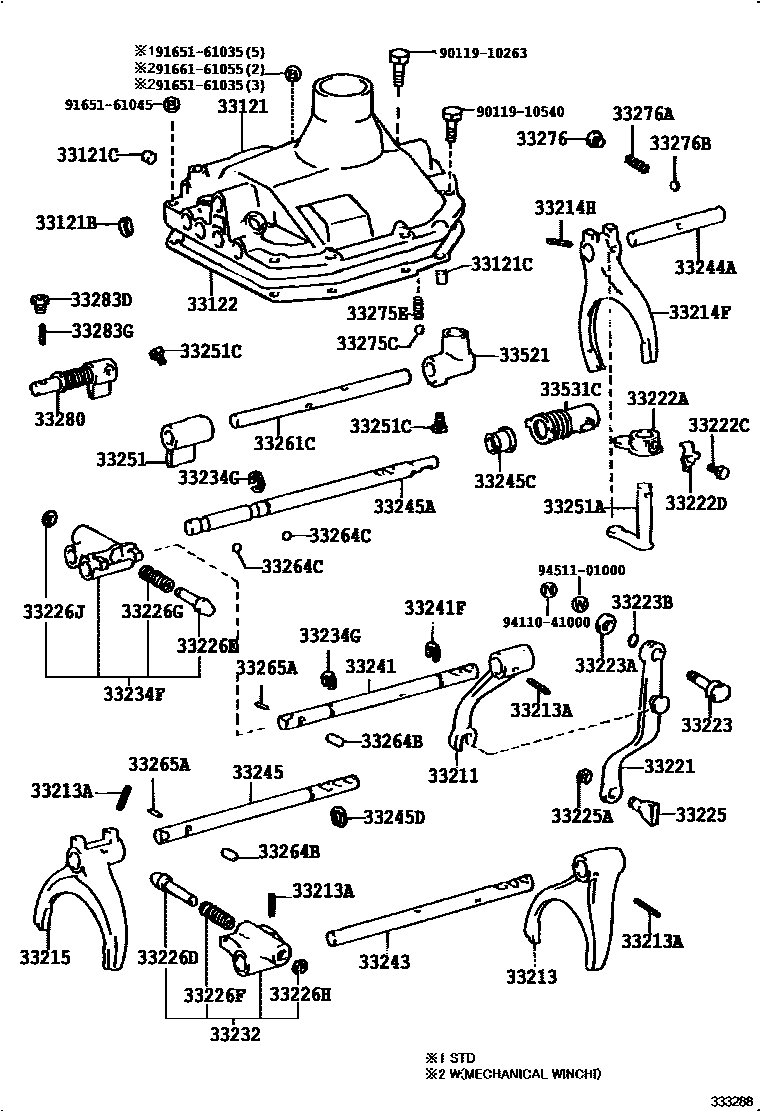

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33121COVER, MANUAL TRANSMISSION CASE
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
OD=16
OD=12
33121CPIN(FOR TRANSMISSION CASE COVER)
L=14,OD=10
L=9,OD=9
33122GASKET, MANUAL TRANSMISSION CASE COVER
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33214FFORK, 5TH SHIFT
33214HPIN, SLOTTED(FOR SHIFT FORK)
33221ARM, REVERSE SHIFT
33222AARM, 5TH SHIFT
33222CBOLT(FOR 5TH SHIFT ARM)
33222DWASHER(FOR 5TH SHIFT ARM)
33223PIVOT, SHIFT ARM
33223AWASHER(FOR SHIFT ARM PIVOT)
33223BRING, O(FOR SHIFT ARM PIVOT)
33225SHOE, SHIFT ARM
33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)
33226DPLUNGER, 1ST & 2ND SHIFT RETURN
33226EPLUNGER, REVERSE & 5TH SHIFT RETURN
33226FSPRING, COMPRESSION(FOR 1ST & 2ND SHIFT RETURN PLUNGER)
33226GSPRING, COMPRESSION(FOR REVERSE & 5TH SHIFT RETURN PLUNGER)
33226HRING, SHAFT SNAP(FOR 1ST & 2ND SHIFT RETURN PLUNGER)
33226JRING, SHAFT SNAP(FOR REVERSE & 5TH SHIFT RETURN PLUNGER)
33232HEAD, 1ST & 2ND SHIFT
33234FHEAD, REVERSE & 5TH SHIFT
33234GRING, E (FOR REVERSE & 5TH SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
sub33244-60040
33241FRING, E(FOR REVERSE SHIFT FORK SHAFT)
33244ASHAFT, 5TH SHIFT FORK
33245ASHAFT, 5TH SHIFT ARM
33245CSEAL, OIL (FOR 5TH SHIFT ARM SHAFT)
33245DRING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT)
33251LEVER, SHIFT & SELECT
33251ALEVER, SHIFT, INNER NO.1
33251CBOLT, SET (FOR SHIFT & SELECT LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=21.6,PIN
L=13.6,OD=9.5
L=17.9
33264CBALL (FOR SHIFT INTERLOCK)
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
L=11.5,OD=4.8
33265AROLLER, NO.2 (FOR INTERLOCK)
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=22.1
L=20.2
L=31.3
L=33.6
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33531CBOOT, DUST (FOR 5TH SHIFT ARM SHAFT)
9011910263
main90119-10263
9011910540
main90119-10540
9165161035
main91651-61035
9165161045
main91651-61045
9166161055
main91661-61055
9411041000
main94110-41000
9451101000
main94511-01000
63 parts on this diagram · 4 diagrams in section
